Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V)...

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011158 CLIP - HOSE $3.18 To Order
Photo Part No Description Price (each) Stock
LR011038 PLUG - BLANKING $5.12 To Order
Photo Part No Description Price (each) Stock
LR010800 O-RING $6.63 IN STOCK
Photo Part No Description Price (each) Stock
LR100353 O-RING $7.25 To Order
Photo Part No Description Price (each) Stock
LR011270 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR011272 SCREW $1.38 To Order
Photo Part No Description Price (each) Stock
LR090630 TUBE - WATER INLET $56.00 IN STOCK
Photo Part No Description Price (each) Stock
LR034109 CLAMP - HOSE $8.49 To Order
Photo Part No Description Price (each) Stock
LR033994 TUBE - WATER OUTLET $22.84 IN STOCK
Photo Part No Description Price (each) Stock
LR049990 TUBE - THERMOSTAT $55.49 To Order
Photo Part No Description Price (each) Stock
LR092992 TUBE - WATER OUTLET $56.11 To Order
Photo Part No Description Price (each) Stock
LR045239 HOSE - THROTTLE BODY HEATER OUTLET $50.95 To Order
Photo Part No Description Price (each) Stock
LR069809 THERMOSTAT AND HOUSING $103.54 To Order
LR095895 THERMOSTAT AND HOUSING $100.75 To Order
LR107288 THERMOSTAT AND HOUSING $90.21 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051007 SHIELD - PROTECTION $101.41 To Order
View All

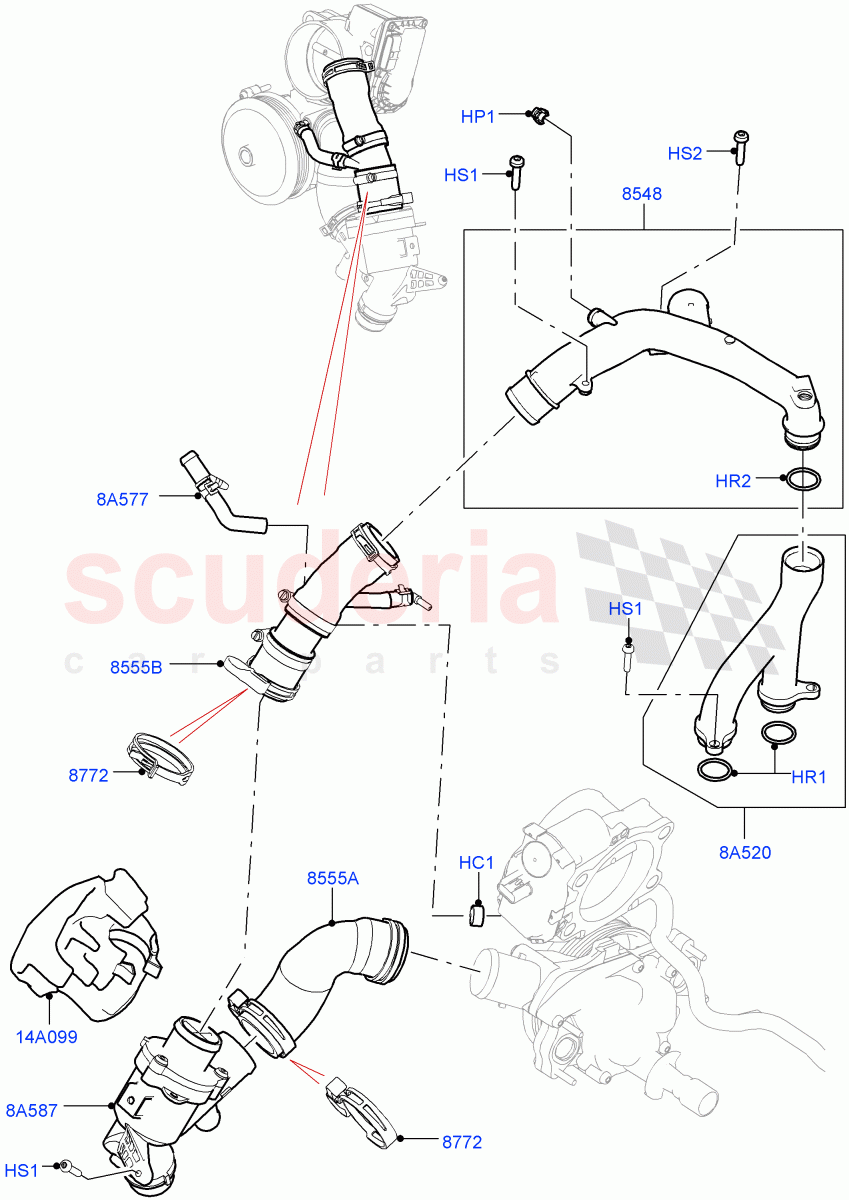

Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMGA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR011158
CLIP - HOSE
13-14 X 8, Hose - Throttle Body Heater / From: GA000001 		$3.18 1
HP1 LR011038
PLUG - BLANKING
Blanking, Cooling System Bleed / From: GA000001 		$5.12 1
HR1 LR010800
O-RING
Ring - Sealing - Tube Water Outlet From Cylinder Block / From: GA000001
IN STOCK 		$6.63 2
HR2 LR100353
O-RING
Upper / From: GA000001 		$7.25 1
HS1 LR011270
SCREW
M6 x 25MM, Torx / From: GA000001 		$1.24 5
HS2 LR011272
SCREW
M6 X 40MM, Torx / From: GA000001 		$1.38 1
8A520 LR092992
TUBE - WATER OUTLET
Includes O-Ring, Tube Water Outlet To Cylinder Block / From: GA000001 		$56.11 1
8A577 LR045239
HOSE - THROTTLE BODY HEATER OUTLET
Hose - Throttle Body Heater, Outlet / From: GA000001 		$50.95 1
8A587 LR069809
THERMOSTAT AND HOUSING
Thermostat And Housing Assy / From: GA000001 / To: GA999999 		$103.54 1
8A587 LR095895
THERMOSTAT AND HOUSING
Thermostat And Housing Assy / From: HA000001 / To: HA999999 		$100.75 1
8A587 LR107288
THERMOSTAT AND HOUSING
Thermostat And Housing Assy / From: JA000001 / To: JA802571 		$90.21 1
8A587 LR117568
CONNECTION - WATER OUTLET
From: JA802572
IN STOCK 		$104.28 1
14A099 LR051007
SHIELD - PROTECTION
Engine Air Deflector / From: GA000001 		$101.41 1
8548 LR090630
TUBE - WATER INLET
Water Connector - Thermostat To Top Coolant Hose / From: GA000001
IN STOCK 		$56.00 1
8555A LR033994
TUBE - WATER OUTLET
From Water Pump To Thermostat, With Clamps / From: GA000001
IN STOCK 		$22.84 1
8555B LR049990
TUBE - THERMOSTAT
Thermostat To Engine, With Clamps / From: GA000001 		$55.49 1
8772 LR034109
CLAMP - HOSE
49MM / From: GA000001 		$8.49 2
