Transfer Drive Case (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Transfer Drive Case (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
LR082663 TRANSFER BOX $5,590.29 To Order
LR105963 TRANSFER BOX $5,547.53 To Order
LR117096 TRANSFER BOX $4,613.31 To Order
Photo Part No Description Price (each) Stock
LR080753 TUBE - TRANSMISSION VENTILATION $66.90 To Order
LR080767 TUBE - BREATHER $71.77 To Order
LR082640 TUBE - TRANSMISSION VENTILATION $54.31 To Order
...and 5 more part variants. See table on right for more details.
View All

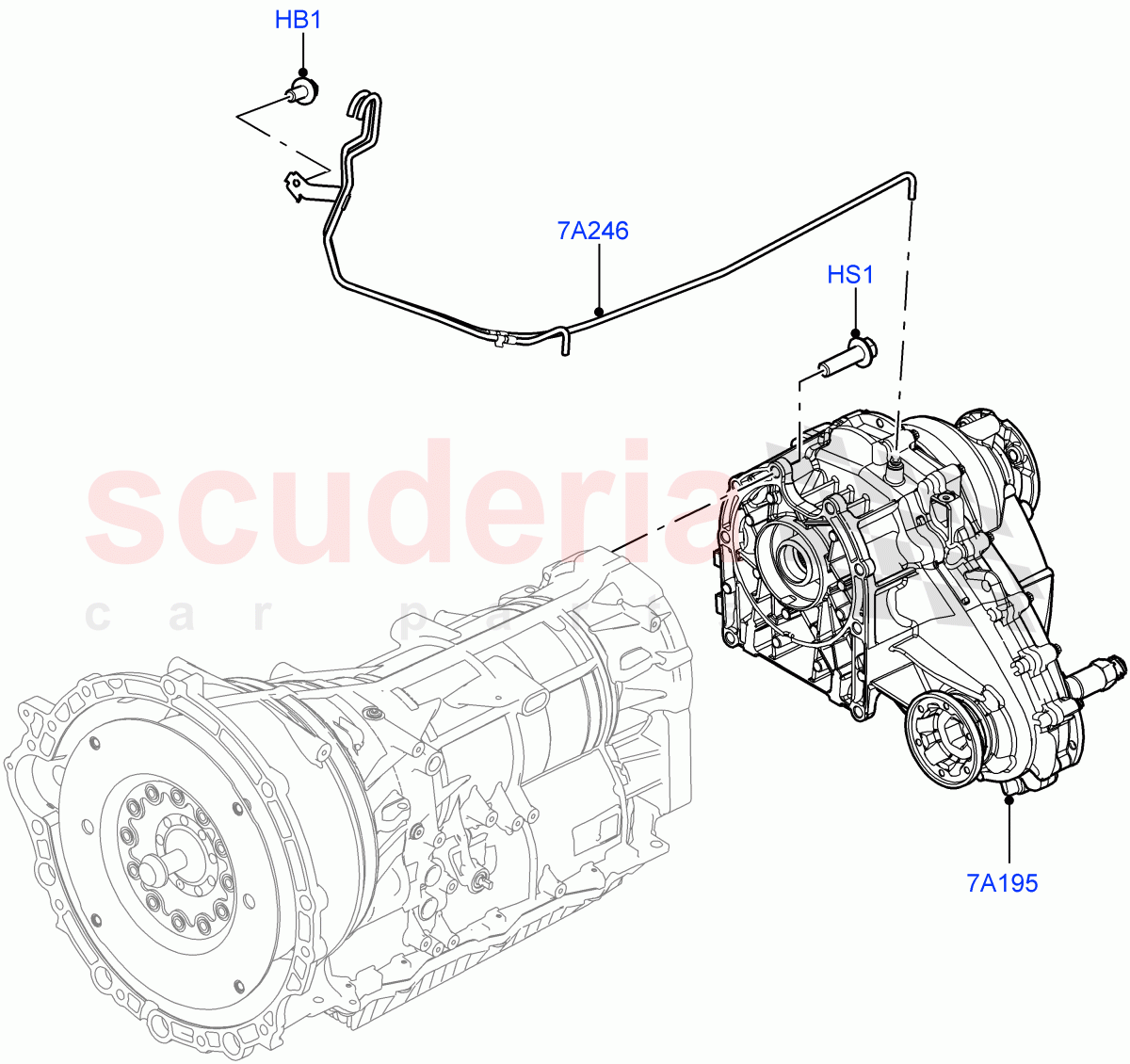

Transfer Drive Case (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Breather Pipe, Hexagonal Head, M6 x 12MM / From: HA000001
IN STOCK 		$0.52 1
HS1 FT110356
SCREW
Hexagonal Head, M10 x 35MM / From: HA000001 		$2.41 8
7A195 LR082663
TRANSFER BOX
From: HA000001 / To: JA168768 		$5,590.29 1
7A195 LR105963
TRANSFER BOX
From: JA168769 / To: JA801866 		$5,547.53 1
7A195 LR117096
TRANSFER BOX
From: JA801867 		$4,613.31 1
7A246 LR080753
TUBE - TRANSMISSION VENTILATION
3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box / From: HA000001 		$66.90 1
7A246 LR080767
TUBE - BREATHER
5.0L OHC SGDI SC V8 Petrol - AJ133 / Gearbox, Transfer Box / From: HA000001 		$71.77 1
7A246 LR082640
TUBE - TRANSMISSION VENTILATION
2.0L I4 DSL HIGH DOHC AJ200 / Gearbox, Includes Bracket, Transfer Box / From: HA000001 		$54.31 1
7A246 LR121397
TUBE - TRANSMISSION VENTILATION
3.0L AJ20P6 Petrol High / Gearbox, Includes Bracket, Transfer Box / From: KA000001 / To: LA715826 		$238.99 1
7A246 LR100477
TUBE - TRANSMISSION VENTILATION
2.0L I4 High DOHC AJ200 Petrol / Gearbox, Includes Bracket, Transfer Box / From: JA000001 / To: MA768329 		$242.28 1
7A246 LR137399
TUBE - TRANSMISSION VENTILATION
3.0L AJ20P6 Petrol High / Gearbox, Includes Bracket, Transfer Box / From: LA715827 / To: MA768329 		$49.25 1
7A246 LR144957
TUBE - TRANSMISSION VENTILATION
2.0L I4 High DOHC AJ200 Petrol / Gearbox, Includes Bracket, Transfer Box / From: MA768330 		$219.76 1
7A246 LR125278
TUBE - TRANSMISSION VENTILATION
3.0L AJ20D6 Diesel High / Gearbox, Includes Bracket, Transfer Box / From: LA000001 		$116.43 1
