Air Conditioning Condensr/Compressr (Front) (3.0L Dohc Gdi Sc V6 Petrol, 5.0L Ohc Sgdi Sc V8 Petrol...

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning Condensr/Compressr (Front) (3.0L DOHC GDI SC V6 PETROL, 5.0L OHC SGDI SC V8 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005074 BOLT $1.15 To Order
Photo Part No Description Price (each) Stock
LR035462 CLIP - HOSE $3.32 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.31 To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.30 To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING $3.52 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR018707 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
LR035791 CONDENSER $434.18 To Order
LR110621 CONDENSER $662.62 To Order
LR133116 CONDENSER $702.15 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035505 BRACKET - A/C PIPE $13.78 IN STOCK
Photo Part No Description Price (each) Stock
LR086045 KIT - VALVE REPAIR $175.11 To Order
LR086045 KIT - VALVE REPAIR $175.11 To Order
Photo Part No Description Price (each) Stock
LR034502 BRACKET - RADIATOR $11.59 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $238.54 To Order
Photo Part No Description Price (each) Stock
LR046251 HOSE - AIR CONDITIONING $176.75 To Order
LR068878 HOSE - AIR CONDITIONING $220.50 To Order
LR061561 HOSE - AIR CONDITIONING $220.50 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035761 COMPRESSOR - AIR CONDITIONING $1,749.77 To Order
LR057692 COMPRESSOR - AIR CONDITIONING $1,633.75 To Order
LR068128 COMPRESSOR - AIR CONDITIONING $1,184.22 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035480 TUBE - COMPRESSOR DELIVERY $189.26 To Order
LR061570 TUBE - COMPRESSOR DELIVERY $155.61 To Order
LR071863 TUBE - COMPRESSOR DELIVERY $154.87 To Order
Photo Part No Description Price (each) Stock
LR035483 TUBE - COMPRESSOR LINE $94.65 To Order
LR061565 TUBE - COMPRESSOR LINE $181.21 To Order
LR072184 TUBE - COMPRESSOR LINE $242.56 To Order
View All

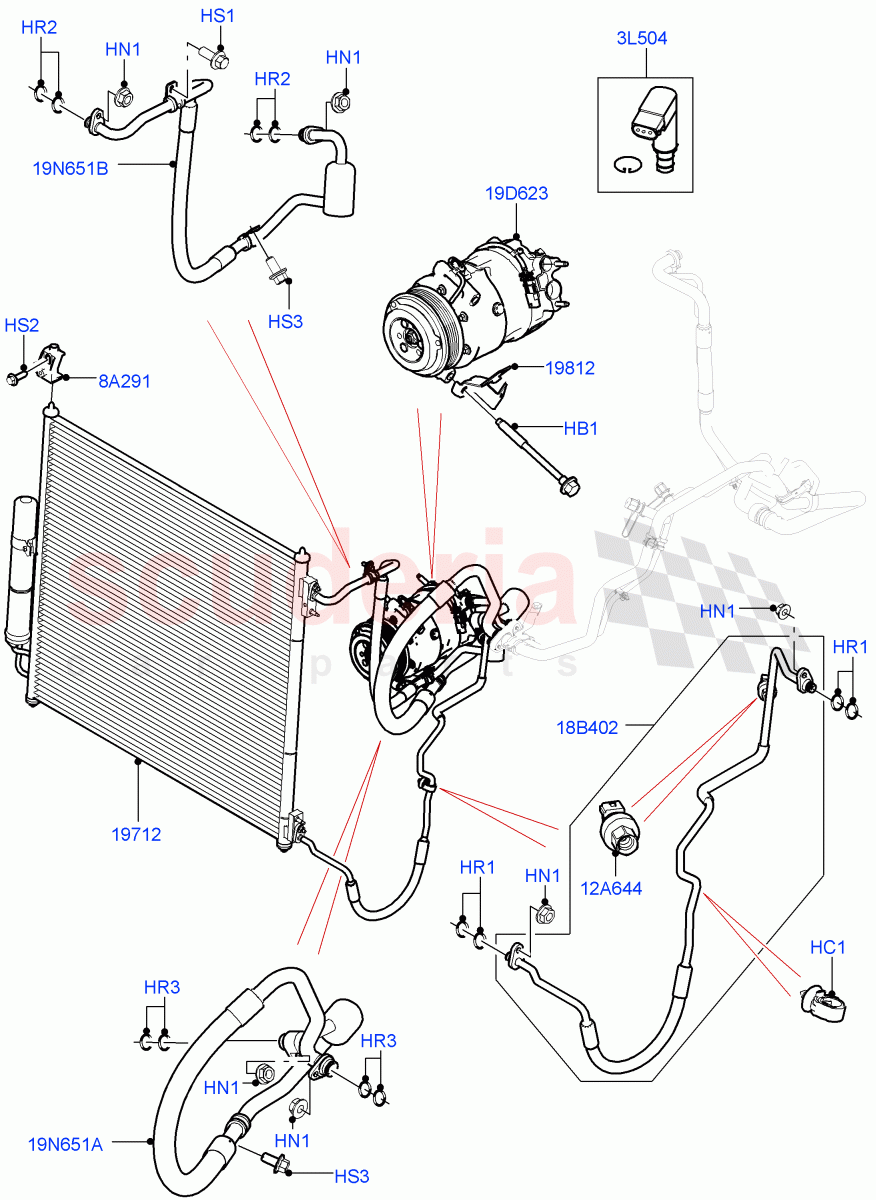

Air Conditioning Condensr/Compressr (Front) (3.0L DOHC GDI SC V6 PETROL, 5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR005074
BOLT
HEX Flange, Hexagonal Head, M8 X 96.5 		$1.15 3
HC1 LR035462
CLIP - HOSE
For Air Conditioning Hose 		$3.32 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 6
HR1 LR044466
O-RING
7.65 X 1.78 		$4.31 4
HR2 LR054871
O-RING
10.82MM X 1.78MM 		$3.30 4
HR3 LR054870
O-RING
16.5 X 1.78MM 		$3.52 4
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.23 1
HS2 LR018707
SCREW
6X20, Hexagonal Head 		$1.05 2
HS3 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.62 2
3L504 LR086045
KIT - VALVE REPAIR
Includes A/C Compressor Control Valve And Snap Ring / To: GA570248 		$175.11 1
3L504 LR086045
KIT - VALVE REPAIR
Includes A/C Compressor Control Valve And Snap Ring / From: GA570249 / To: GA572422 		$175.11 1
8A291 LR034502
BRACKET - RADIATOR
Air Conditioning Condenser 		$11.59 1
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Refrigerant Pressure Sensor 		$238.54 1
18B402 LR046251
HOSE - AIR CONDITIONING
Condenser Outlet / To: EA999999 		$176.75 1
18B402 LR068878
HOSE - AIR CONDITIONING
Condenser Outlet / From: GA000001 / To: HA999999 		$220.50 1
18B402 LR061561
HOSE - AIR CONDITIONING
Condenser Outlet / From: FA000001 / To: FA999999 		$220.50 1
18B402 LR082205
HOSE - AIR CONDITIONING
Condenser Outlet / From: JA000001 / To: LA709362 		$200.60 1
18B402 LR135856
HOSE - AIR CONDITIONING
Condenser Outlet / From: LA709363 		$200.60 1
19D623 LR035761
COMPRESSOR - AIR CONDITIONING
To: EA323781 		$1,749.77 1
19D623 LR057692
COMPRESSOR - AIR CONDITIONING
From: EA323782 / To: EA999999 		$1,633.75 1
19D623 LR068128
COMPRESSOR - AIR CONDITIONING
From: FA000001 / To: GA571268 		$1,184.22 1
19D623 LR112585
COMPRESSOR - AIR CONDITIONING
From: GA572423 		$1,466.11 1
19D623 LR086043
COMPRESSOR - AIR CONDITIONING
From: GA571269 / To: GA572422 		$1,471.42 1
19N651A LR035480
TUBE - COMPRESSOR DELIVERY
Compressor Inlet / To: EA359387 		$189.26 1
19N651A LR061570
TUBE - COMPRESSOR DELIVERY
Compressor Inlet / From: EA359388 / To: EA500152 		$155.61 1
19N651A LR071863
TUBE - COMPRESSOR DELIVERY
Compressor Inlet / From: EA500153 		$154.87 1
19N651B LR035483
TUBE - COMPRESSOR LINE
Condenser Inlet Tube / To: EA359387 		$94.65 1
19N651B LR061565
TUBE - COMPRESSOR LINE
Condenser Inlet Tube / From: EA359388 / To: EA500152 		$181.21 1
19N651B LR072184
TUBE - COMPRESSOR LINE
Condenser Inlet Tube / From: EA500153 		$242.56 1
19712 LR035791
CONDENSER
To: JA194364 		$434.18 1
19712 LR110621
CONDENSER
From: JA194365 / To: KA872348 		$662.62 1
19712 LR133116
CONDENSER
From: KA872349 / To: LA707158 		$702.15 1
19712 LR137975
CONDENSER
From: LA707159 		$430.63 1
19812 LR035505
BRACKET - A/C PIPE
Attaches To Compressor
IN STOCK 		$13.78 1
