Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Electrical Wiring - Engine And Dash (Engine Compartment) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP501130 BOLT $1.37 To Order
Photo Part No Description Price (each) Stock
DYC500160 CLIP - SINGLE $1.69 To Order
Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.52 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR087049 ENGINE BAY HARNESS $4,448.31 To Order
LR100417 ENGINE BAY HARNESS $2,833.41 To Order
LR115579 ENGINE BAY HARNESS $2,545.92 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR120629 LINK LEAD - BRAKE BOOSTER MODULE $84.95 To Order
Photo Part No Description Price (each) Stock
LR105641 BRACKET - WIRING $31.84 To Order
Photo Part No Description Price (each) Stock
LR133292 BRACKET - WIRING $28.14 To Order
LR133292 BRACKET - WIRING $28.14 To Order
Photo Part No Description Price (each) Stock
LR050937 BOX - FUSE $71.04 To Order
Photo Part No Description Price (each) Stock
LR075643 WIRING - ACTIVE VANES $35.55 To Order
View All

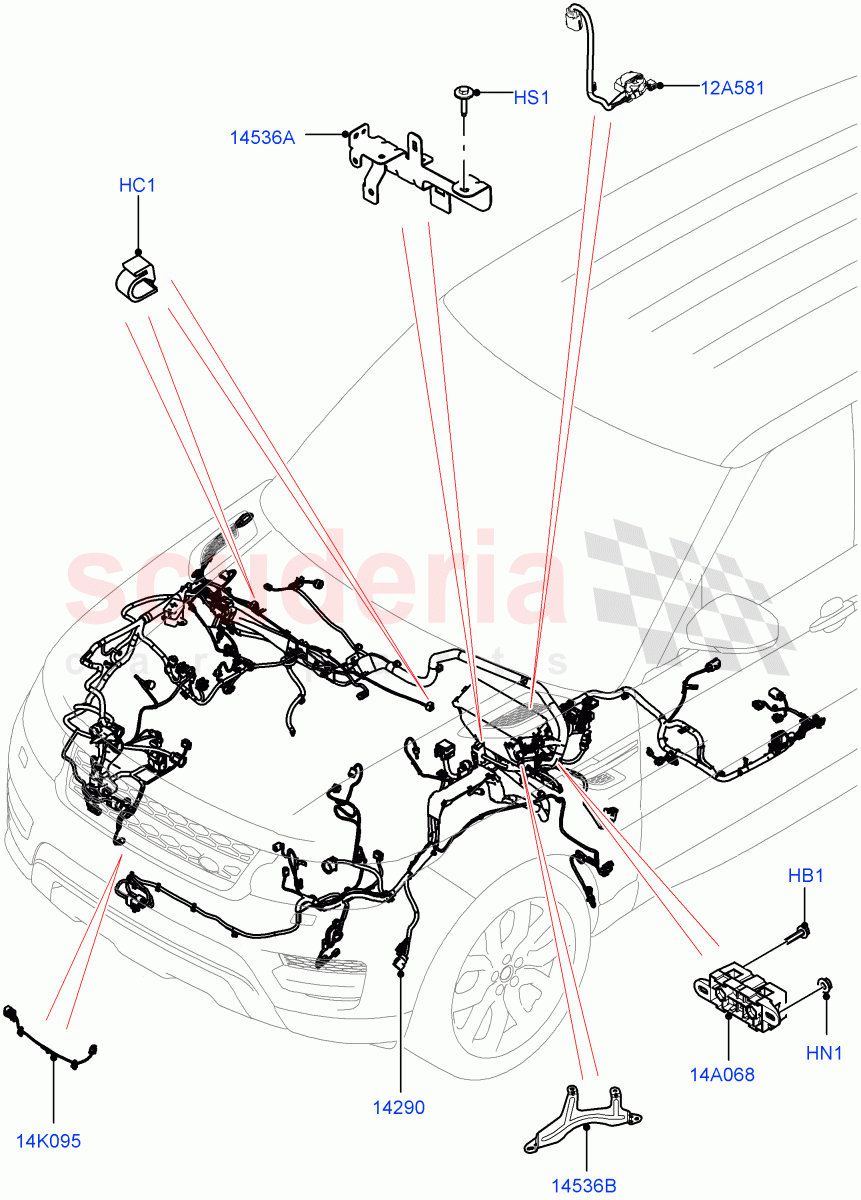

Electrical Wiring - Engine And Dash (Engine Compartment) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP501130
BOLT
M6 x 12MM / From: HA000001 		$1.37 1
HC1 DYC500160
CLIP - SINGLE
Connector, Heated Washer Jet / From: HA000001 		$1.69 2
HN1 FN105042
NUT - HEX. - FLANGED
M5 / From: HA000001
IN STOCK 		$0.52 2
HS1 RYG500900
SCREW
2.0L AJ200P Hi PHEV / Bolt And Washer, Hexagonal Head, M6X30 / From: JA000001 		$4.21 2
12A581 LR120629
LINK LEAD - BRAKE BOOSTER MODULE
2.0L AJ200P Hi PHEV, LHD / From: KA000001 		$84.95 1
14A068 LR050937
BOX - FUSE
Megafuse / From: HA000001 		$71.04 1
14K095 LR075643
WIRING - ACTIVE VANES
Active Grilleshutter / From: HA000001 		$35.55 1
14290 LR087049
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: HA000001 / To: HA999999 		$4,448.31 1
14290 LR100417
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: JA000001 / To: JA999999 		$2,833.41 1
14290 LR115579
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: KA000001 / To: KA999999 		$2,545.92 1
14290 LR128503
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: LA000001 / To: MA754334 		$2,788.45 1
14290 LR146694
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: MA754335 / To: MA999999 		$2,557.89 1
14290 LR159912
ENGINE BAY HARNESS
KSK harness, Requires VIN To Order / From: NA000001 		$2,044.91 1
14536A LR105641
BRACKET - WIRING
2.0L AJ200P Hi PHEV / From: JA000001 		$31.84 1
14536B LR133292
BRACKET - WIRING
3.0L AJ20D6 Diesel High, Electric Engine Battery-MHEV, LHD / From: LA000001 		$28.14 1
14536B LR133292
BRACKET - WIRING
3.0L AJ20D6 Diesel High, LHD, Less Electric Engine Battery / From: MA000001 		$28.14 1
