Engine Mounting (3.0 V6 Diesel)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Engine Mounting (3.0 V6 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033199 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR033200 BOLT $27.54 To Order
Photo Part No Description Price (each) Stock
LR033197 NUT $2.12 IN STOCK
LR095134 NUT $0.97 To Order
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
LR033201 SCREW $3.72 To Order
Photo Part No Description Price (each) Stock
LR048781 BRACKET - ENGINE MOUNTING $199.48 To Order
LR056670 BRACKET - ENGINE MOUNTING $184.33 To Order
LR057721 BRACKET - ENGINE MOUNTING $253.17 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033181 BRACKET - ENGINE FRONT SUPPORT $95.90 To Order
LR122399 BRACKET - ENGINE FRONT SUPPORT $91.33 To Order
Photo Part No Description Price (each) Stock
LR033184 BRACKET - ENGINE FRONT SUPPORT $117.97 To Order
Photo Part No Description Price (each) Stock
LR033194 SOLENOID - VACUUM CONTROL $172.25 To Order
Photo Part No Description Price (each) Stock
LR033175 HOSE - VACUUM $85.42 To Order
Photo Part No Description Price (each) Stock
LR033167 HOSE - VACUUM $110.78 To Order
View All

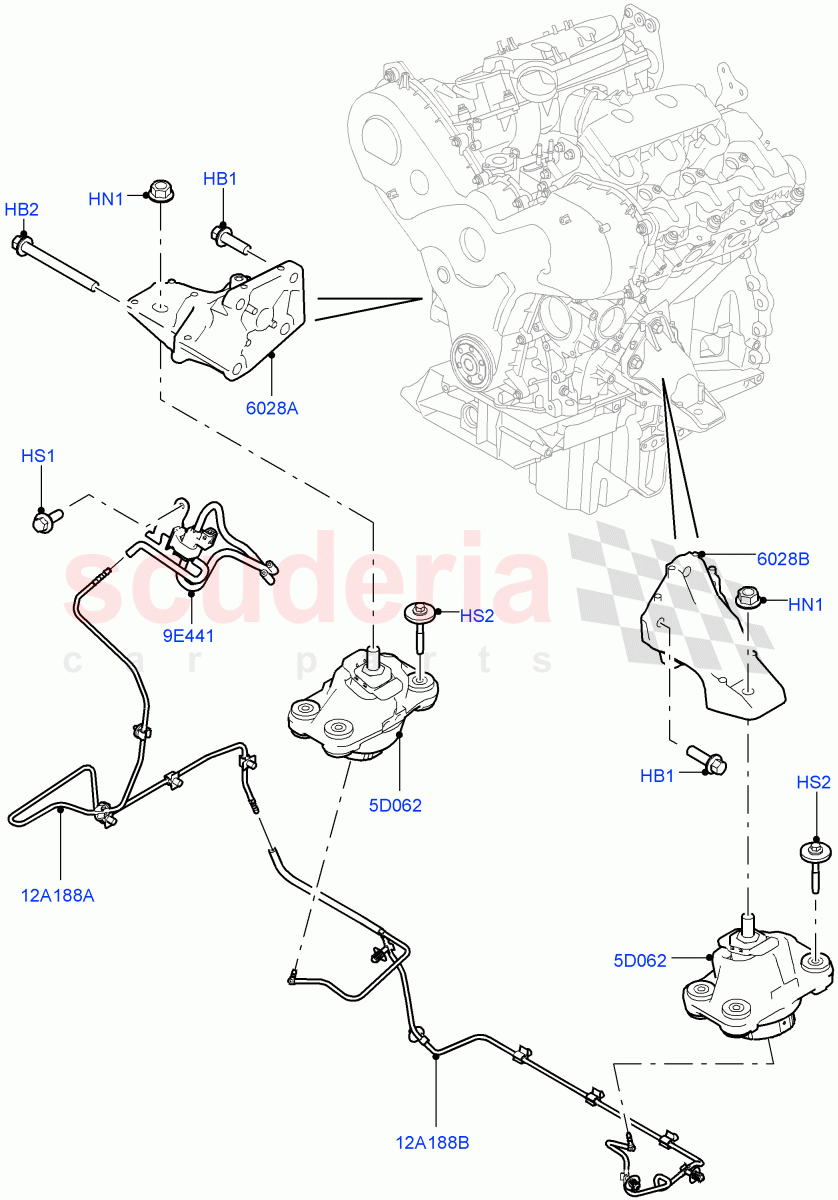

Engine Mounting (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033199
BOLT
Hexagonal Head, M12 X 42MM 		$2.57 6
HB2 LR033200
BOLT
Hexagonal Head, M12 x 122MM 		$27.54 2
HN1 LR033197
NUT
M14 / To: HA155354
IN STOCK 		$2.12 2
HN1 LR095134
NUT
M14 / From: HA155355 		$0.97 2
HS1 RYP500200
SCREW
Hexagonal Head, M6 X 20MM 		$0.95 1
HS2 LR033201
SCREW
Hexagonal Head, M8 x 60MM 		$3.72 8
5D062 LR048781
BRACKET - ENGINE MOUNTING
RH/LH / To: EA312472 		$199.48 2
5D062 LR056670
BRACKET - ENGINE MOUNTING
RH/LH / From: EA312473 / To: EA313065 		$184.33 2
5D062 LR057721
BRACKET - ENGINE MOUNTING
RH/LH / From: EA313066 / To: EA503853 		$253.17 2
5D062 LR123907
BRACKET - ENGINE MOUNTING
RH/LH / From: EA503854 / To: KA421523 		$154.34 2
5D062 LR123907
BRACKET - ENGINE MOUNTING
RH/LH / From: KA421524 		$154.34 2
9E441 LR033194
SOLENOID - VACUUM CONTROL 		$172.25 1
12A188A LR033175
HOSE - VACUUM 		$85.42 1
12A188B LR033167
HOSE - VACUUM 		$110.78 1
6028A LR033181
BRACKET - ENGINE FRONT SUPPORT
RH / To: KA820281 		$95.90 1
6028A LR122399
BRACKET - ENGINE FRONT SUPPORT
RH / From: KA820282 		$91.33 1
6028B LR033184
BRACKET - ENGINE FRONT SUPPORT
LH 		$117.97 1
