Name: Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

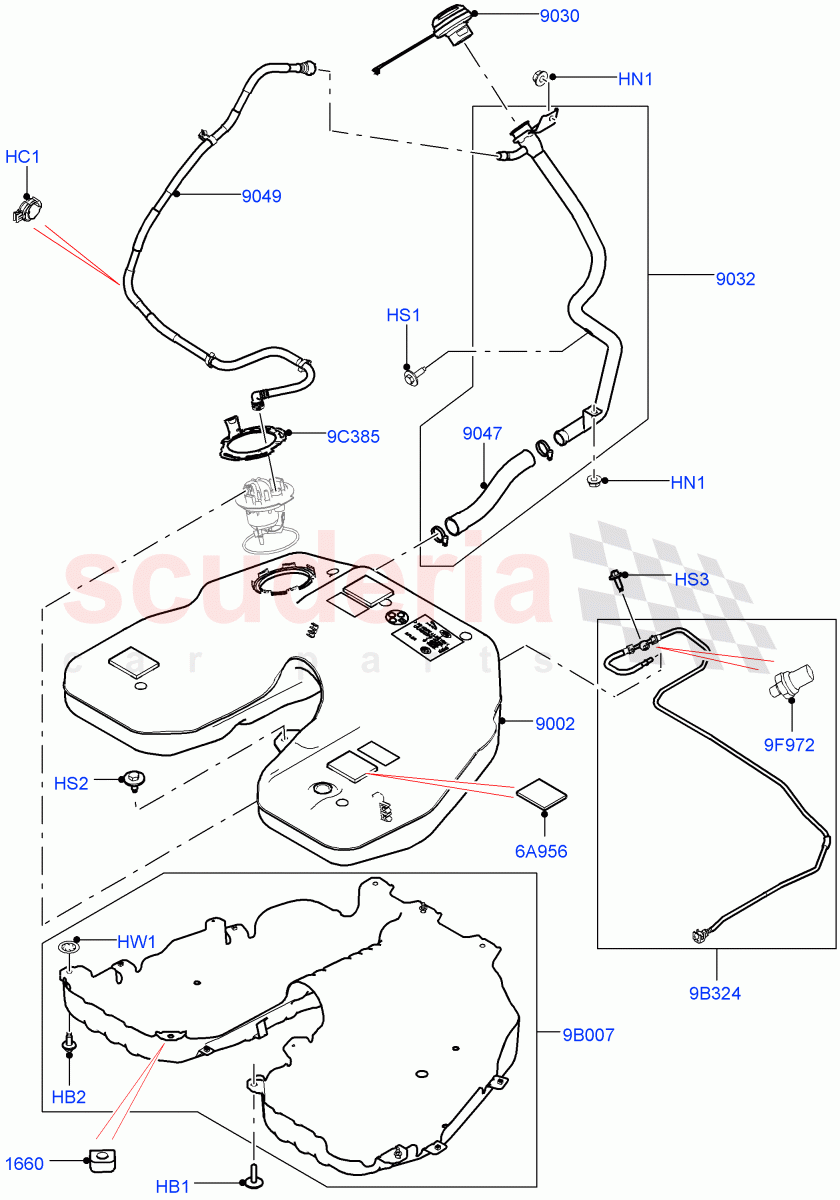

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	$2.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR037935	BOLT AND WASHER - HEX.HEAD	$2.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500820	SCREW AND WASHER	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105166	SCREW	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WJ110007L	WASHER	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR086524	TANK - FUEL	$1,363.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053665	CAP - FUEL TANK FILLER	$34.81	To Order
	202123475	CAP - FUEL TANK FILLER	$40.67	To Order
	LR138720	CAP - FUEL TANK FILLER	$39.22	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR095804	PIPE - FUEL FILLER	$337.79	To Order
	LR051671	PIPE - FUEL FILLER	$224.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051675	HOSE - FILLER PIPE	$224.64	To Order
	LR051676	HOSE - FILLER PIPE	$224.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037481	TUBE - FUEL VAPOUR	$70.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	$23.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054812	SHIELD - FUEL TANK	$674.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086522	TUBE - FUEL	$285.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087019	RING - RETAINING	$31.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015356	SENSOR - FUEL INJECTOR PRESSURE	$110.82	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034249	BOLT AND WASHER - HEX.HEAD IN STOCK	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM / From: KA000001 IN STOCK	$2.89	4
HB2	LR037935	BOLT AND WASHER - HEX.HEAD IN STOCK	LR037935 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 X 25MM / From: KA000001 IN STOCK	$2.39	3
HC1	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: KA000001	$2.49	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.46	2
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$0.96	2
HS2	RYG500820	SCREW AND WASHER	RYG500820 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: KA000001	$0.67	2
HS3	FS105166	SCREW IN STOCK	FS105166 SCREW HEX Flange, M5 X 16MM / From: KA000001 IN STOCK	$0.67	1
HW1	WJ110007L	WASHER IN STOCK	WJ110007L WASHER 10MM, Fuel Tank, Shield / From: KA000001 IN STOCK	$0.71	3
6A956	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING 100mm x 80mm x 10mm / From: KA000001	$23.32	3
9B007	LR054812	SHIELD - FUEL TANK	LR054812 SHIELD - FUEL TANK Protective / From: KA000001	$674.39	1
9B324	LR086522	TUBE - FUEL	LR086522 TUBE - FUEL Feed / From: KA000001	$285.83	1
9C385	LR087019	RING - RETAINING	LR087019 RING - RETAINING From: KA000001	$31.48	1
9F972	LR015356	SENSOR - FUEL INJECTOR PRESSURE	LR015356 SENSOR - FUEL INJECTOR PRESSURE From: KA000001	$110.82	1
9002	LR086524	TANK - FUEL	LR086524 TANK - FUEL From: KA000001	$1,363.22	1
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: KA000001 / To: MA758030	$34.81	1
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: KA000001 / To: MA755911	$40.67	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER Narrow Filler Neck - Unleaded / From: MA755912	$39.22	1
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: MA758031	$39.22	1
9032	LR095804	PIPE - FUEL FILLER	LR095804 PIPE - FUEL FILLER Narrow Filler Neck - Unleaded / From: KA000001	$337.79	1
9032	LR051671	PIPE - FUEL FILLER	LR051671 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: KA000001	$224.64	1
9047	LR051675	HOSE - FILLER PIPE	LR051675 HOSE - FILLER PIPE Narrow Filler Neck - Unleaded / From: KA000001	$224.64	1
9047	LR051676	HOSE - FILLER PIPE	LR051676 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded / From: KA000001	$224.64	1
9049	LR037481	TUBE - FUEL VAPOUR	LR037481 TUBE - FUEL VAPOUR Pet Tank W/O Leak Det - Std Filter / From: KA000001	$70.73	1
