Name: Rear Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
Rating: 4.6 (1 reviews)

Rear Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

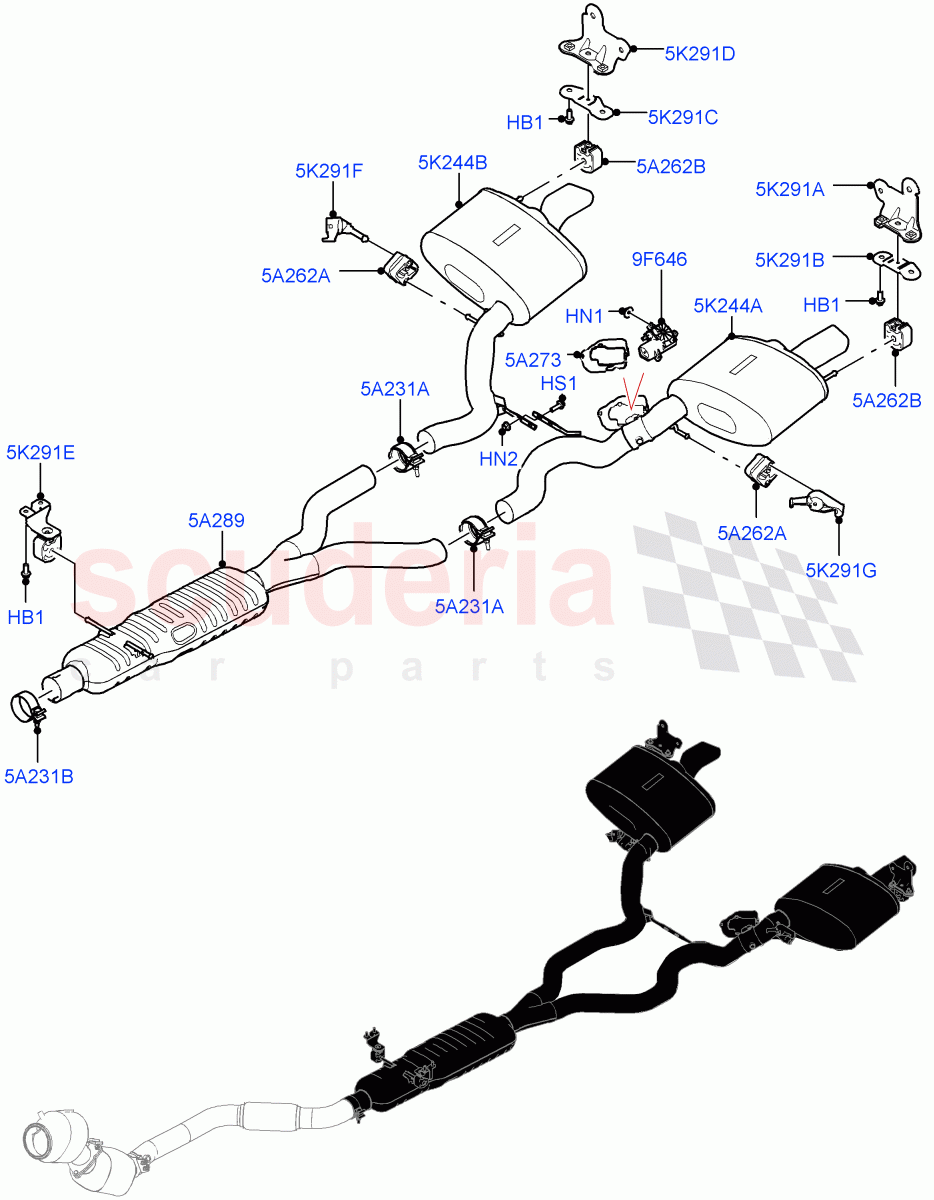

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139180	HEAT SHIELD - EXHAUST DAMPER	$19.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125186	MUFFLER - CENTRE	$1,433.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139396	ACTUATOR - ELECTRONIC EXHAUST VALVE	$231.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088315	CLAMP - EXHAUST	$66.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125187	CLAMP	$32.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	$36.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125185	MUFFLER - REAR	$724.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125184	MUFFLER - REAR	$724.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121365	BRACKET	$32.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125188	BRACKET	$130.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093523	BRACKET - EXHAUST	$32.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088557	BRACKET - EXHAUST PIPE MOUNTING	$29.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110248	BRACKET - REAR MUFFLER	$47.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125204	BRACKET - REAR MUFFLER	$31.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125205	BRACKET - REAR MUFFLER	$30.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: KA000001 IN STOCK	$2.29	8
HN1	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED Actuator, M5 / From: KA000001 IN STOCK	$0.52	3
HN2	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Cross Brace, Hexagonal Head, M6 / From: KA000001 IN STOCK	$0.60	2
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Cross Brace, Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$0.96	2
5A231A	LR088315	CLAMP - EXHAUST	LR088315 CLAMP - EXHAUST 70MM / From: KA000001	$66.33	2
5A231B	LR125187	CLAMP	LR125187 CLAMP 75MM, Front / From: KA000001	$32.79	1
5A262A	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER For Rear Muffler, Front, RH/LH / From: KA000001	$24.16	2
5A262B	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER For Rear Muffler, Rear, RH/LH / From: KA000001	$36.58	2
5A273	LR139180	HEAT SHIELD - EXHAUST DAMPER	LR139180 HEAT SHIELD - EXHAUST DAMPER Actuator / From: KA000001	$19.88	1
5A289	LR125186	MUFFLER - CENTRE	LR125186 MUFFLER - CENTRE From: KA000001	$1,433.60	1
5K244A	LR125185	MUFFLER - REAR	LR125185 MUFFLER - REAR LH / From: KA000001	$724.70	1
5K244B	LR125184	MUFFLER - REAR	LR125184 MUFFLER - REAR RH / From: KA000001	$724.70	1
5K291A	LR121365	BRACKET	LR121365 BRACKET LH, For Rear Muffler, Upper / From: KA000001	$32.00	1
5K291B	LR125188	BRACKET	LR125188 BRACKET LH, For Rear Muffler, Lower / From: KA000001	$130.66	1
5K291C	LR093523	BRACKET - EXHAUST	LR093523 BRACKET - EXHAUST RH, For Rear Muffler, Lower / From: KA000001	$32.28	1
5K291D	LR088557	BRACKET - EXHAUST PIPE MOUNTING	LR088557 BRACKET - EXHAUST PIPE MOUNTING RH, For Rear Muffler, Upper / From: KA000001	$29.72	1
5K291E	LR110248	BRACKET - REAR MUFFLER	LR110248 BRACKET - REAR MUFFLER RH/LH, To Resonator / From: KA000001	$47.43	2
5K291F	LR125204	BRACKET - REAR MUFFLER	LR125204 BRACKET - REAR MUFFLER RH, For Rear Muffler, Front / From: KA000001	$31.31	1
5K291G	LR125205	BRACKET - REAR MUFFLER	LR125205 BRACKET - REAR MUFFLER LH, For Rear Muffler, Front / From: KA000001	$30.70	1
9F646	LR139396	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR139396 ACTUATOR - ELECTRONIC EXHAUST VALVE From: KA000001	$231.30	1

Rear Exhaust System (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
