Timing Gear Covers (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Timing Gear Covers (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR183648 PLUG - BLANKING $11.12 To Order
Photo Part No Description Price (each) Stock
LR073787 PIN - CENTERING $4.06 To Order
Photo Part No Description Price (each) Stock
LR095782 O-RING $4.80 IN STOCK
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.34 To Order
Photo Part No Description Price (each) Stock
LR073786 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.34 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.66 IN STOCK
Photo Part No Description Price (each) Stock
LR128486 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
LR158170 SCREW $1.77 To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $3.03 To Order
Photo Part No Description Price (each) Stock
LR122697 SEAL - CRANKSHAFT OIL - REAR $51.73 IN STOCK
Photo Part No Description Price (each) Stock
LR127936 PLATE - CYLINDER BLOCK REAR $622.79 To Order
LR157779 PLATE - CYLINDER BLOCK REAR $587.53 To Order
Photo Part No Description Price (each) Stock
LR121752 COVER - CAMSHAFT $178.48 To Order
LR136423 COVER - CAMSHAFT $163.31 To Order
Photo Part No Description Price (each) Stock
LR162141 RETAINER - CRANKSHAFT OIL SEAL $291.41 To Order
Photo Part No Description Price (each) Stock
LR121753 GASKET - COVER $31.76 To Order
Photo Part No Description Price (each) Stock
LR123925 SEAL - TRANSMISSION $76.36 To Order
Photo Part No Description Price (each) Stock
LR123926 SEAL - STARTER MOTOR $29.79 To Order
Photo Part No Description Price (each) Stock
LR126181 SENSOR - CRANKSHAFT POSITION - CPS $149.58 To Order
Photo Part No Description Price (each) Stock
LR121751 RETAINER AND SEAL - CRANKSHAFT $252.00 To Order
Photo Part No Description Price (each) Stock
LR123100 INSULATOR - CYLINDER HEAD $72.39 To Order
Photo Part No Description Price (each) Stock
LR122990 DOWEL - PIN $5.79 To Order
View All

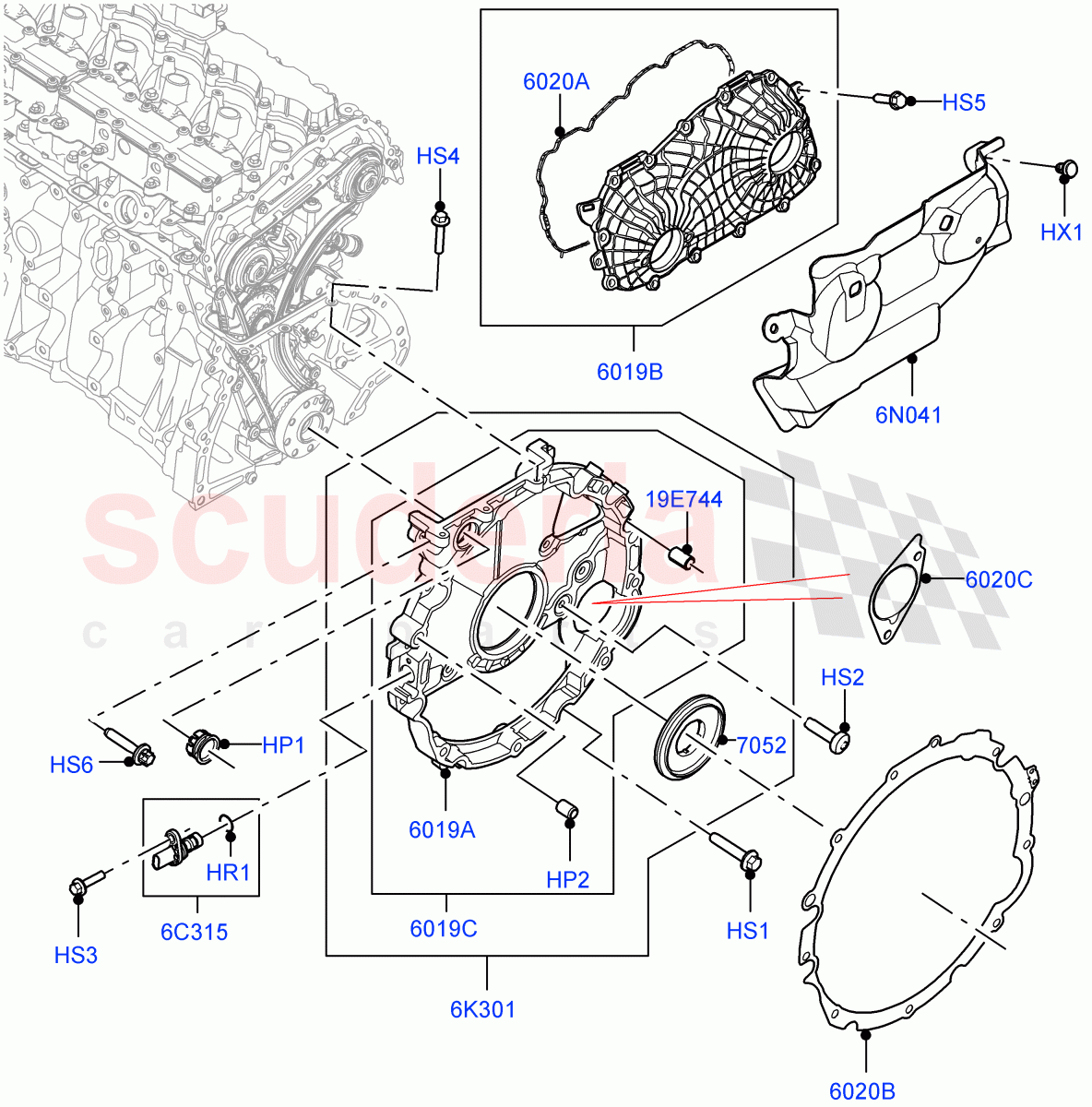

Timing Gear Covers (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 LR183648
PLUG - BLANKING
Blanking, Includes O'Ring / From: KA000001 		$11.12 1
HP2 LR073787
PIN - CENTERING
15.7MM, Pin - Dowell / From: KA000001 		$4.06 2
HR1 LR095782
O-RING
17.0MM, Crankshaft Position Sensor(CKP) / From: KA000001
IN STOCK 		$4.80 1
HS1 LR073676
SCREW
M8 x 35mm / From: KA000001 		$2.34 9
HS2 LR073786
SCREW
M8 X 30MM / From: KA000001 		$2.24 4
HS3 LR071842
SCREW AND WASHER - HEX HEAD
Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM / From: KA000001 		$1.34 1
HS4 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: KA000001
IN STOCK 		$2.66 3
HS5 LR128486
SCREW
M6 x 25MM / From: KA000001 		$1.04 13
HS6 LR158170
SCREW
M8 x 40MM / From: KA000001 		$1.77 1
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5, Insulator / From: KA000001 		$3.03 2
6C315 LR126181
SENSOR - CRANKSHAFT POSITION - CPS
From: KA000001 		$149.58 1
6K301 LR121751
RETAINER AND SEAL - CRANKSHAFT
Includes Seal, Lower, Timing Chain Cover / From: KA000001 		$252.00 1
6N041 LR123100
INSULATOR - CYLINDER HEAD
From: KA000001 		$72.39 1
19E744 LR122990
DOWEL - PIN 		$5.79 2
6019A LR127936
PLATE - CYLINDER BLOCK REAR
Lower, Timing Chain Cover / From: KA000001 / To: MA787084 		$622.79 1
6019A LR157779
PLATE - CYLINDER BLOCK REAR
Lower, Timing Chain Cover / From: MA787085 		$587.53 1
6019B LR121752
COVER - CAMSHAFT
Timing Chain Cover, Upper / From: KA000001 / To: KA873564 		$178.48 1
6019B LR136423
COVER - CAMSHAFT
Timing Chain Cover, Upper / From: KA873565 		$163.31 1
6019C LR162141
RETAINER - CRANKSHAFT OIL SEAL
Includes Pin-Dowels, Lower, Timing Chain Cover / From: KA000001 		$291.41 1
6020A LR121753
GASKET - COVER
Timing Chain Cover / From: KA000001 		$31.76 1
6020B LR123925
SEAL - TRANSMISSION
Transmission To Engine / From: KA000001 		$76.36 1
6020C LR123926
SEAL - STARTER MOTOR
Starter / From: KA000001 		$29.79 1
7052 LR122697
SEAL - CRANKSHAFT OIL - REAR
Crankshaft Oil Seal, Rear / From: KA000001
IN STOCK 		$51.73 1
