Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Power)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Power)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TYH500030 NUT $0.79 IN STOCK
Photo Part No Description Price (each) Stock
LR039010 SCREW $29.54 To Order
Photo Part No Description Price (each) Stock
LR040385 SCREW - ROUND HEAD $1.75 To Order
Photo Part No Description Price (each) Stock
LR038287 SPACER - WINDSCREEN GLASS OPENING $106.59 To Order
Photo Part No Description Price (each) Stock
LR038280 MOTOR - SUNROOF OPENING $687.77 To Order
Photo Part No Description Price (each) Stock
LR113700 LEVER - SLIDING ROOF PANEL ADJUST $135.89 To Order
Photo Part No Description Price (each) Stock
LR056885 OIL - LUBRICANT $34.93 To Order
Photo Part No Description Price (each) Stock
LR126276 GUIDE - ROOF SIDE RAIL $1,721.75 To Order
Photo Part No Description Price (each) Stock
LR038279 FRAME - SLIDING ROOF PANEL OPENING $3,571.43 To Order
LR121820 FRAME - SLIDING ROOF PANEL OPENING $3,938.44 To Order
LR145005 RAIL - ROOF $4,684.82 To Order
Photo Part No Description Price (each) Stock
LR040776 SPRING - ROOF $39.32 To Order
Photo Part No Description Price (each) Stock
LR040267 WIRING - ROOF $80.83 To Order
Photo Part No Description Price (each) Stock
LR053237 KIT - SCREWS $39.33 To Order
Photo Part No Description Price (each) Stock
LR056884 GREASE - HIGH TEMPERATURE $33.88 To Order
Photo Part No Description Price (each) Stock
LR038286 DEFLECTOR - ROOF AIR $256.10 To Order
Photo Part No Description Price (each) Stock
LR045010 TUBE - WATER DRAIN $20.94 To Order
LR045011 TUBE - WATER DRAIN $23.18 To Order
LR054822 TUBE - WATER DRAIN $20.58 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR084562 SEAL - ROOF PANEL OPENING $160.59 To Order
Photo Part No Description Price (each) Stock
LR057364 KIT - AIR DEFLECTOR $297.23 To Order
Photo Part No Description Price (each) Stock
LR057365 KIT - AIR DEFLECTOR $89.01 To Order
Photo Part No Description Price (each) Stock
LR163706 SEAL - ROOF PANEL OPENING $111.46 To Order
Photo Part No Description Price (each) Stock
LR038288 SEAL - ROOF PANEL OPENING $153.82 To Order
Photo Part No Description Price (each) Stock
LR163702 SEAL - ROOF PANEL OPENING $85.05 To Order
Photo Part No Description Price (each) Stock
LR040261 SHIELD - SUNROOF RAIL $92.25 To Order
LR040262 SHIELD - SUNROOF RAIL $92.25 To Order
Photo Part No Description Price (each) Stock
LR040750 SHIELD - SUNROOF RAIL $145.92 To Order
Photo Part No Description Price (each) Stock
LR040263 SHIELD - SUNROOF RAIL $105.13 To Order
View All

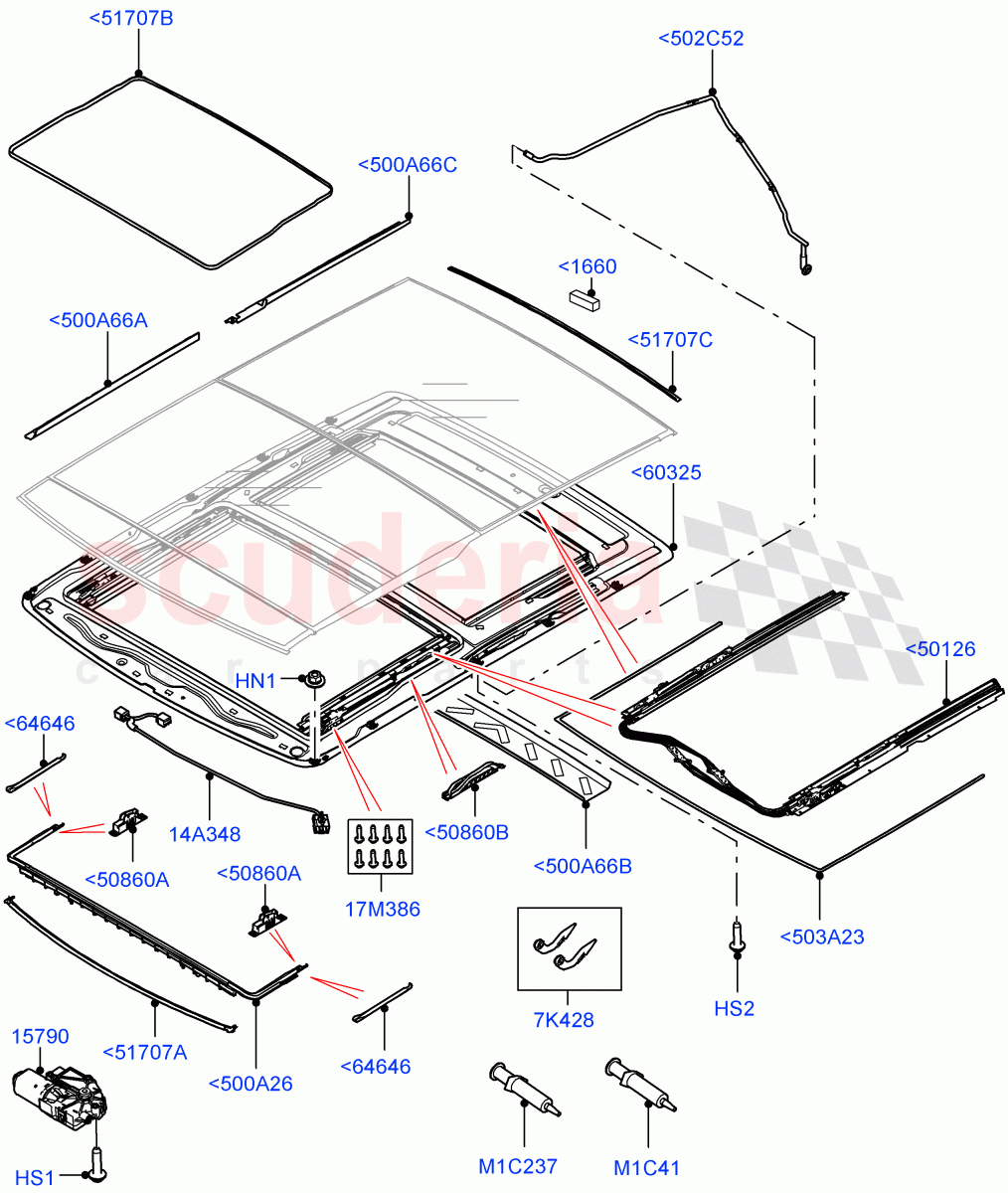

Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Power) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<500A26 LR038286
DEFLECTOR - ROOF AIR 		$256.10 1
<500A66A LR040261
SHIELD - SUNROOF RAIL
RH 		$92.25 1
<500A66A LR040262
SHIELD - SUNROOF RAIL
LH 		$92.25 1
<500A66B LR040750
SHIELD - SUNROOF RAIL
Centre 		$145.92 1
<500A66C LR040263
SHIELD - SUNROOF RAIL
Rear 		$105.13 1
<502C52 LR045010
TUBE - WATER DRAIN
RH / To: EA326897 		$20.94 1
<502C52 LR045011
TUBE - WATER DRAIN
LH / To: EA326897 		$23.18 1
<502C52 LR054822
TUBE - WATER DRAIN
RH / From: EA326898 / To: JA999999 		$20.58 1
<502C52 LR054830
TUBE - WATER DRAIN
LH / From: EA326898 / To: MA758539 		$23.18 1
<502C52 LR054822
TUBE - WATER DRAIN
Less Electric Engine Battery / RH / From: KA000001 / To: MA758539 		$20.58 1
<502C52 LR123055
TUBE - WATER DRAIN
Electric Engine Battery-MHEV / RH / From: KA000001 / To: MA794086 		$27.05 1
<502C52 LR145237
TUBE - WATER DRAIN
Less Electric Engine Battery / RH / From: MA758540 		$22.40 1
<502C52 LR145235
TUBE - WATER DRAIN
LH / From: MA758540 		$23.18 1
<502C52 LR161470
TUBE - WATER DRAIN
Electric Engine Battery-MHEV / RH / From: MA794087 		$56.46 1
<503A23 LR084562
SEAL - ROOF PANEL OPENING 		$160.59 1
<1660 LR038287
SPACER - WINDSCREEN GLASS OPENING
Pack Of 12 Spacers 		$106.59 1
<50126 LR126276
GUIDE - ROOF SIDE RAIL 		$1,721.75 1
<50860A LR057364
KIT - AIR DEFLECTOR
Includes Two Plastic Guides, With Fixing Parts 		$297.23 1
<50860B LR057365
KIT - AIR DEFLECTOR
With Fixing Parts 		$89.01 1
<51707A LR163706
SEAL - ROOF PANEL OPENING
Front 		$111.46 1
<51707B LR038288
SEAL - ROOF PANEL OPENING 		$153.82 1
<51707C LR163702
SEAL - ROOF PANEL OPENING
Rear 		$85.05 1
<60325 LR038279
FRAME - SLIDING ROOF PANEL OPENING
Include Only Front And Rear Glasses, The Middle Glass (Sliding) Is Serviced Separately / To: JA803094 		$3,571.43 1
<60325 LR121820
FRAME - SLIDING ROOF PANEL OPENING
Include Only Front And Rear Glasses, The Middle Glass (Sliding) Is Serviced Separately / From: JA803095 / To: LA745645 		$3,938.44 1
<60325 LR145005
RAIL - ROOF
Include Only Front And Rear Glasses, The Middle Glass (Sliding) Is Serviced Separately / From: LA745646 		$4,684.82 1
<64646 LR040776
SPRING - ROOF
Sliding Roof Deflector 		$39.32 2
HN1 TYH500030
NUT
M8, To Body
IN STOCK 		$0.79 4
HS1 LR039010
SCREW
M5 x 35MM 		$29.54 3
HS2 LR040385
SCREW - ROUND HEAD
Bolt And Washer, M6X16 		$1.75 2
M1C41 LR056885
OIL - LUBRICANT
Silicone Lubricant 		$34.93 1
M1C237 LR056884
GREASE - HIGH TEMPERATURE
grease 		$33.88 1
7K428 LR113700
LEVER - SLIDING ROOF PANEL ADJUST
Kit, RH And LH / From: HA000001 		$135.89 1
14A348 LR040267
WIRING - ROOF 		$80.83 1
17M386 LR053237
KIT - SCREWS
For Glass Panel Only, Retaining Screws, Set Of 8 Pieces 		$39.33 1
15790 LR038280
MOTOR - SUNROOF OPENING
For Power Moon Roof 		$687.77 1
