Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Tools

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR048484 JACK - LIFTING $126.38 To Order
LR077859 JACK - LIFTING $108.02 To Order
LR085685 JACK - LIFTING $123.95 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR079616 HANDLE - JACK OPERATING $52.65 To Order
LR079616 HANDLE - JACK OPERATING $52.65 To Order
Photo Part No Description Price (each) Stock
LR081513 HANDLE - JACK OPERATING $20.36 To Order
Photo Part No Description Price (each) Stock
LR081511 HANDLE - JACK OPERATING $17.59 To Order
Photo Part No Description Price (each) Stock
KAL000010 WRENCH - WHEEL NUT $31.79 To Order
KAL000010 WRENCH - WHEEL NUT $31.79 To Order
Photo Part No Description Price (each) Stock
LR081512 WRENCH - WHEEL NUT $27.90 To Order
Photo Part No Description Price (each) Stock
LR036698 HOOK - TOWING - REAR $93.77 To Order
Photo Part No Description Price (each) Stock
LR051814 TRAY - UTILITY $72.31 To Order
LR051814 TRAY - UTILITY $72.31 To Order
LR081518 TRAY - UTILITY $70.03 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR095888 BAG - TOOL STORAGE $39.13 To Order
LR157820 BAG - TOOL STORAGE $39.13 To Order
Photo Part No Description Price (each) Stock
LR034905 CHOCK - WHEEL $28.02 To Order
Photo Part No Description Price (each) Stock
LR040447 KIT - SPARE WHEEL CARRIER $121.90 To Order
LR124638 KIT - SPARE WHEEL CARRIER $120.32 To Order
LR085460 KIT - SPARE WHEEL CARRIER $124.80 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034911 STRAP - TOOL BAG $14.72 To Order
LR034911 STRAP - TOOL BAG $14.72 To Order
View All

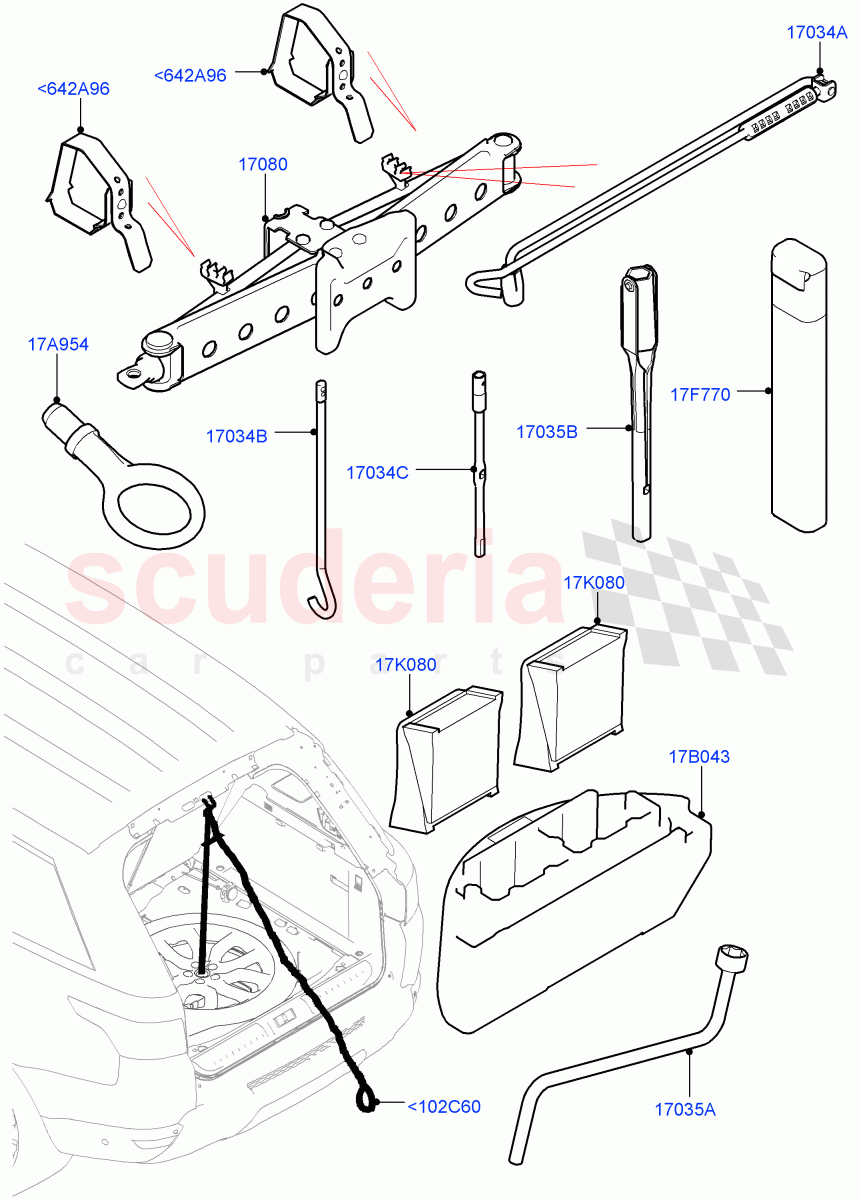

Tools of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<102C60 LR040447
KIT - SPARE WHEEL CARRIER
With Conventional Alloy Spare Wheel / Contains Strap, Bracket And Bag, New Type Spare Wheel Carrier / To: EA373128 		$121.90 1
<102C60 LR124638
KIT - SPARE WHEEL CARRIER
With Conventional Alloy Spare Wheel / Contains Strap, Bracket And Bag, New Type Spare Wheel Carrier / From: EA373129 / To: GA101062 		$120.32 1
<102C60 LR085460
KIT - SPARE WHEEL CARRIER
22" Full Size Spare Wheel / Contains Strap, Bracket And Bag, New Type Spare Wheel Carrier / From: GA101063 / To: JA999999 		$124.80 1
<102C60 LR085460
KIT - SPARE WHEEL CARRIER
21" Full Size Spare Wheel, Electric Engine Battery-MHEV, With 5 Seat Configuration / Contains Strap, Bracket And Bag, New Type Spare Wheel Carrier / From: KA000001 / To: KA852769 		$124.80 1
<102C60 LR124638
KIT - SPARE WHEEL CARRIER
21" Full Size Spare Wheel, Electric Engine Battery-MHEV, With 5 Seat Configuration / Contains Strap, Bracket And Bag, New Type Spare Wheel Carrier / From: KA852770 		$120.32 1
<642A96 LR034911
STRAP - TOOL BAG
Less Tyre Repair Service Kit / Jack, Wrench & Tool Bag / To: HA999999 		$14.72 2
<642A96 LR034911
STRAP - TOOL BAG
20" Full Size Spare Wheel / Jack, Wrench & Tool Bag / From: JA000001 		$14.72 2
17A954 LR036698
HOOK - TOWING - REAR
Less Trailer Towing Hitch / Towing Eye 		$93.77 1
17B043 LR051814
TRAY - UTILITY
Spare Wheel - Conventional Alloy, With Four Corner Air Suspension / From: HA000001 / To: HA150594 		$72.31 1
17B043 LR051814
TRAY - UTILITY
With Conventional Alloy Spare Wheel / To: GA999999 		$72.31 1
17B043 LR081518
TRAY - UTILITY
Instant Mobility System - High / From: HA150595 / To: JA999999 		$70.03 1
17B043 LR081518
TRAY - UTILITY
Instant Mobility System - High, Less Electric Engine Battery / From: KA000001 		$70.03 1
17F770 LR095888
BAG - TOOL STORAGE
With Standard Duty Coil Spring Susp / From: HA000001 / To: MA792243 		$39.13 1
17F770 LR157820
BAG - TOOL STORAGE
With Standard Duty Coil Spring Susp / From: MA792244 		$39.13 1
17K080 LR034905
CHOCK - WHEEL
To: GA556446 		$28.02 2
17034A LR079616
HANDLE - JACK OPERATING
Less Tyre Repair Service Kit / To: GA999999 		$52.65 1
17034A LR079616
HANDLE - JACK OPERATING
21" Full Size Spare Wheel, Electric Engine Battery-MHEV, With 5 Seat Configuration / From: HA000001 		$52.65 1
17034B LR081513
HANDLE - JACK OPERATING
With Standard Duty Coil Spring Susp / Jack / From: HA000001 		$20.36 1
17034C LR081511
HANDLE - JACK OPERATING
With Standard Duty Coil Spring Susp / Jack / From: HA000001 		$17.59 1
17035A KAL000010
WRENCH - WHEEL NUT
To: GA999999 		$31.79 1
17035A KAL000010
WRENCH - WHEEL NUT
With Four Corner Air Suspension / From: HA000001 		$31.79 1
17035B LR081512
WRENCH - WHEEL NUT
With Standard Duty Coil Spring Susp / From: HA000001 		$27.90 1
17080 LR048484
JACK - LIFTING
Less Tyre Repair Service Kit / To: FA532826 		$126.38 1
17080 LR077859
JACK - LIFTING
Less Tyre Repair Service Kit / From: FA532827 / To: GA571880 		$108.02 1
17080 LR085685
JACK - LIFTING
Less Tyre Repair Service Kit / From: GA571881 / To: GA999999 		$123.95 1
17080 LR085685
JACK - LIFTING
Spare Wheel - Conventional Alloy, With 5 Seat Configuration, With Performance Suspension / From: HA000001 / To: HA150488 		$123.95 1
17080 LR108585
JACK - LIFTING
Spare Wheel - Conventional Alloy, With 5 Seat Configuration, With Performance Suspension / From: HA150489 / To: HA157700 		$115.64 1
17080 LR177978
JACK - LIFTING
With 5 Seat Configuration, With Mini Alloy Spare Wheel, With Performance Suspension / With Handle And Wrench / From: HA157701 / To: JA999999 		$125.94 1
17080 LR177978
JACK - LIFTING
Less Electric Engine Battery, With 5 Seat Configuration, With Mini Alloy Spare Wheel / With Handle And Wrench / From: KA000001 / To: MA999999 		$125.94 1
17080 LR177978
JACK - LIFTING
21" Full Size Spare Wheel, Electric Engine Battery-MHEV, With 5 Seat Configuration / With Handle And Wrench / From: NA700000 / To: NA799999 		$125.94 1
17080 LR177978
JACK - LIFTING
21" Full Size Spare Wheel, Electric Engine Battery-MHEV, With 5 Seat Configuration / With Handle And Wrench / From: NA200000 / To: NA214431 		$125.94 1
17080 LR161610
JACK - LIFTING
22" Full Size Spare Wheel, Electric Engine Battery-MHEV, With 5 Seat Configuration / With Handle And Wrench / From: NA214432 / To: NA699999 		$115.64 1
17080 LR161610
JACK - LIFTING
21" Full Size Spare Wheel, Less Electric Engine Battery, With 5 Seat Configuration / With Handle And Wrench / From: PA000001 		$115.64 1
