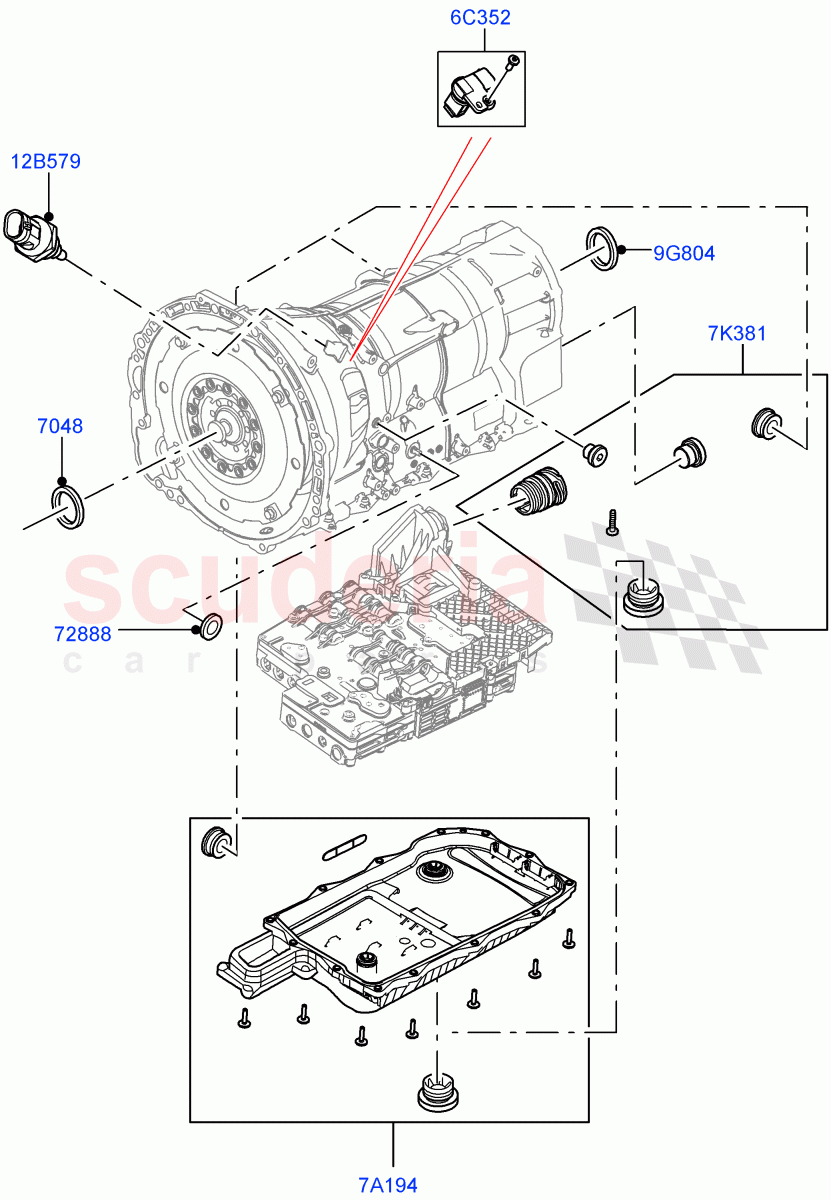

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR133662	SEAL - OIL	$40.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114020	PLUG - ROTOR POSITION SENSOR	$90.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114011	SEAL - TRANSMISSION	$14.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114012	PAN - TRANSMISSION OIL	$382.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059860	PLUG - TRANSMISSION	$51.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023291	SEAL - OUTPUT SHAFT OIL	$32.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133663	SENSOR - TEMPERATURE	$47.33	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6C352	LR114020	PLUG - ROTOR POSITION SENSOR	LR114020 PLUG - ROTOR POSITION SENSOR From: JA000001	$90.53	1
7A194	LR114012	PAN - TRANSMISSION OIL	LR114012 PAN - TRANSMISSION OIL Includes Oil Filter, Includes Sealing Gasket / From: JA000001	$382.44	1
7K381	LR059860	PLUG - TRANSMISSION	LR059860 PLUG - TRANSMISSION From: JA000001	$51.81	1
9G804	LR023291	SEAL - OUTPUT SHAFT OIL	LR023291 SEAL - OUTPUT SHAFT OIL Output Shaft / From: JA000001	$32.12	1
12B579	LR133663	SENSOR - TEMPERATURE	LR133663 SENSOR - TEMPERATURE Temperature / From: JA000001	$47.33	1
7048	LR133662	SEAL - OIL	LR133662 SEAL - OIL Input Shaft / From: JA000001	$40.26	1
72888	LR114011	SEAL - TRANSMISSION	LR114011 SEAL - TRANSMISSION Selector Shaft Seal / From: JA000001	$14.48	1
