Name: Timing Gear (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)
Rating: 4.8 (1 reviews)

Timing Gear (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

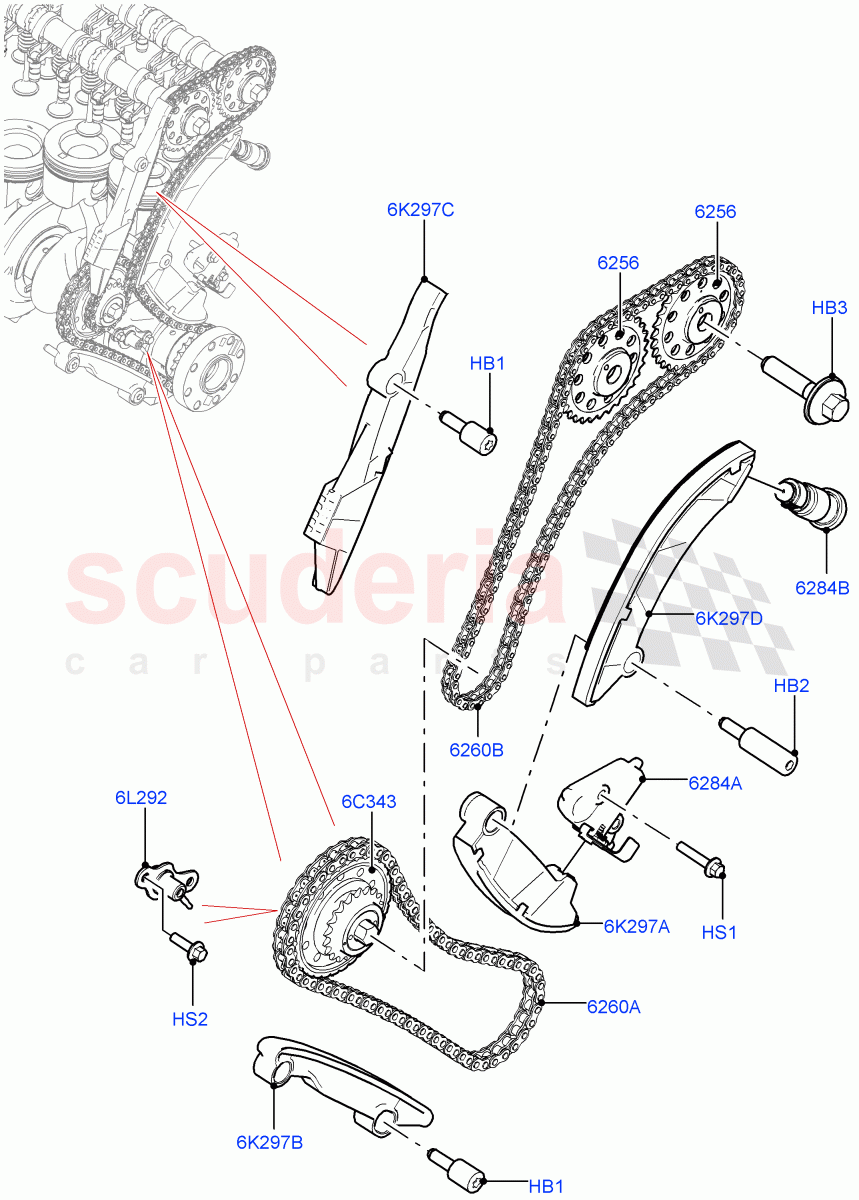

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Timing Gear (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123057	BOLT	$2.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125588	BOLT	$3.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125589	BOLT	$3.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073744	SPROCKET - CAMSHAFT	$146.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125575	CHAIN - TIMING	$90.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125576	CHAIN - TIMING	$122.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125581	TENSIONER - TIMING CHAIN	$134.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125580	TENSIONER - TIMING CHAIN	$98.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125587	IDLER - DRIVE CHAIN	$79.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125346	JET - CHAIN LUBRICATING	$22.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125584	BLADE - TENSIONER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125582	GUIDE - TIMING CHAIN	$71.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125583	GUIDE - TIMING CHAIN	$72.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125585	BLADE - TENSIONER	$35.31	To Order
	LR125585	BLADE - TENSIONER	$35.31	To Order
	LR125585	BLADE - TENSIONER	$35.31	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR123057	BOLT IN STOCK	LR123057 BOLT Chain Guide, M8 X 23MM, Short / From: LA000001 IN STOCK	$2.53	3
HB2	LR125588	BOLT	LR125588 BOLT Chain Guide, Long, M8 X 23MM / From: LA000001	$3.76	1
HB3	LR125589	BOLT IN STOCK	LR125589 BOLT Camshaft Sprocket, M12 x 1.5 x 55 / From: LA000001 IN STOCK	$3.75	2
HS1	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM, Tensioner / From: LA000001 IN STOCK	$2.67	2
HS2	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM, Oil Lubrication Jet / From: LA000001 IN STOCK	$1.60	2
6C343	LR125587	IDLER - DRIVE CHAIN	LR125587 IDLER - DRIVE CHAIN Intermediate / From: LA000001	$79.99	1
6K297A	LR125584	BLADE - TENSIONER	LR125584 BLADE - TENSIONER RH, Primary / From: LA000001	$28.55	1
6K297B	LR125582	GUIDE - TIMING CHAIN	LR125582 GUIDE - TIMING CHAIN LH, Primary / From: LA000001	$71.27	1
6K297C	LR125583	GUIDE - TIMING CHAIN	LR125583 GUIDE - TIMING CHAIN LH, Secondary / From: LA000001	$72.67	1
6K297D	LR125585	BLADE - TENSIONER	LR125585 BLADE - TENSIONER RH, Secondary / From: LA000001 / To: MA999999	$35.31	1
6K297D	LR125585	BLADE - TENSIONER	LR125585 BLADE - TENSIONER RH, Secondary / From: NA700000 / To: NA799999	$35.31	1
6K297D	LR125585	BLADE - TENSIONER	LR125585 BLADE - TENSIONER RH, Secondary / From: NA200001 / To: NA208896	$35.31	1
6K297D	LR164805	BLADE - TENSIONER	LR164805 BLADE - TENSIONER RH, Secondary / From: NA208897 / To: NA699999	$38.19	1
6K297D	LR164805	BLADE - TENSIONER	LR164805 BLADE - TENSIONER RH, Secondary / From: PA000001	$38.19	1
6L292	LR125346	JET - CHAIN LUBRICATING	LR125346 JET - CHAIN LUBRICATING Oil / From: LA000001	$22.11	1
6256	LR073744	SPROCKET - CAMSHAFT	LR073744 SPROCKET - CAMSHAFT From: LA000001	$146.44	2
6260A	LR125575	CHAIN - TIMING	LR125575 CHAIN - TIMING Lower, Primary / From: LA000001	$90.43	1
6260B	LR125576	CHAIN - TIMING	LR125576 CHAIN - TIMING Secondary, Upper / From: LA000001	$122.33	1
6284A	LR125581	TENSIONER - TIMING CHAIN	LR125581 TENSIONER - TIMING CHAIN Primary / From: LA000001	$134.57	1
6284B	LR125580	TENSIONER - TIMING CHAIN	LR125580 TENSIONER - TIMING CHAIN Secondary / From: LA000001	$98.80	1

Timing Gear (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Timing Gear (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)
