Fuel Injectors And Pipes (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Injectors And Pipes (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR125523 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR172461 O-RING $5.52 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.52 To Order
Photo Part No Description Price (each) Stock
LR125600 INSULATOR - INTAKE MANIFOLD $147.76 To Order
Photo Part No Description Price (each) Stock
LR125515 TUBE - FUEL PUMP $173.33 To Order
Photo Part No Description Price (each) Stock
LR125508 PIPE - FUEL $79.58 To Order
Photo Part No Description Price (each) Stock
LR125512 TUBE - FUEL $40.92 To Order
LR125513 TUBE - FUEL $30.43 To Order
Photo Part No Description Price (each) Stock
LR125503 RETAINER - INJECTION VALVE $5.12 To Order
Photo Part No Description Price (each) Stock
LR125514 MANIFOLD - FUEL SUPPLY $314.61 To Order
Photo Part No Description Price (each) Stock
LR125522 INJECTOR - FUEL $805.96 To Order
Photo Part No Description Price (each) Stock
LR093848 WASHER - SEALING $4.44 To Order
Photo Part No Description Price (each) Stock
LR125521 TUBE - LEAK OFF $92.50 To Order
Photo Part No Description Price (each) Stock
LR125528 COVER - INSULATOR $87.37 To Order
LR154867 COVER - INSULATOR $75.09 To Order
LR154867 COVER - INSULATOR $75.09 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR128419 GLOW PLUG $53.99 To Order
View All

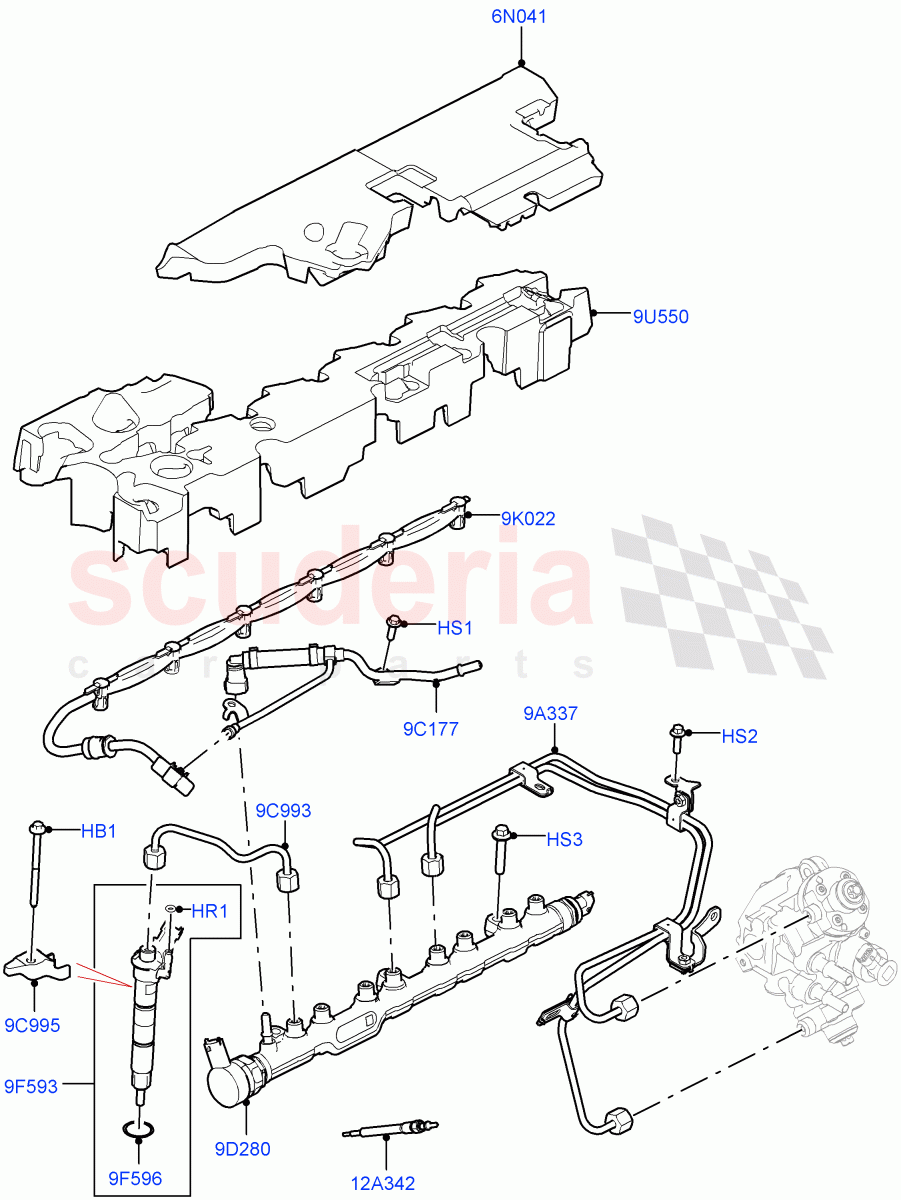

Fuel Injectors And Pipes (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR125523
BOLT
M6 X 77.0 / From: LA000001 		$2.57 6
HR1 LR172461
O-RING 		$5.52 6
HS1 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001 		$2.31 2
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001
IN STOCK 		$1.60 4
HS3 LR073649
SCREW
M8 x 40MM / From: LA000001 		$2.52 3
6N041 LR125600
INSULATOR - INTAKE MANIFOLD
Top / From: LA000001 		$147.76 1
9A337 LR125515
TUBE - FUEL PUMP
Fuel Supply / From: LA000001 		$173.33 1
9C177 LR125508
PIPE - FUEL
From: LA000001 		$79.58 1
9C993 LR125512
TUBE - FUEL
Cylinder No.1, Cylinder No.2, Cylinder No.4 / From: LA000001 		$40.92 3
9C993 LR125513
TUBE - FUEL
Cylinder No.3, Cylinder No.5, Cylinder No.6 / From: LA000001 		$30.43 3
9C995 LR125503
RETAINER - INJECTION VALVE
From: LA000001 		$5.12 6
9D280 LR125514
MANIFOLD - FUEL SUPPLY
From: LA000001 		$314.61 1
9F593 LR125522
INJECTOR - FUEL
From: LA000001 		$805.96 6
9F596 LR093848
WASHER - SEALING
From: LA000001 		$4.44 6
9K022 LR125521
TUBE - LEAK OFF
Leak Off / From: LA000001 		$92.50 1
9U550 LR125528
COVER - INSULATOR
Lower / From: LA000001 / To: MA776488 		$87.37 1
9U550 LR154867
COVER - INSULATOR
Lower / From: MA776489 / To: MA999999 		$75.09 1
9U550 LR154867
COVER - INSULATOR
Lower / From: NA700000 / To: NA799999 		$75.09 1
9U550 LR154867
COVER - INSULATOR
Lower / From: NA200000 / To: NA208021 		$75.09 1
9U550 LR163151
COVER - INSULATOR
Lower / From: NA208022 / To: NA699999 		$74.83 1
9U550 LR163151
COVER - INSULATOR
Lower / From: PA000001 		$74.83 1
12A342 LR128419
GLOW PLUG
From: LA000001 		$53.99 6
