Cylinder Head Cover (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Cylinder Head Cover (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR133542 RING - SEALING $4.67 IN STOCK
Photo Part No Description Price (each) Stock
LR095781 O-RING $9.79 IN STOCK
Photo Part No Description Price (each) Stock
LR073781 O-RING $5.08 IN STOCK
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.51 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.34 To Order
Photo Part No Description Price (each) Stock
LR125323 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.58 To Order
Photo Part No Description Price (each) Stock
LR125322 COVER - CYLINDER HEAD $589.77 To Order
Photo Part No Description Price (each) Stock
LR125592 GASKET - CAMSHAFT COVER $46.06 To Order
Photo Part No Description Price (each) Stock
LR121749 PIPE - OIL INLET $254.96 To Order
Photo Part No Description Price (each) Stock
LR125595 CAP - OIL FILLER $43.11 To Order
Photo Part No Description Price (each) Stock
LR125600 INSULATOR - INTAKE MANIFOLD $147.34 To Order
Photo Part No Description Price (each) Stock
LR125528 COVER - INSULATOR $87.12 To Order
LR154867 COVER - INSULATOR $74.87 To Order
LR154867 COVER - INSULATOR $74.87 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR074065 SENSOR - CAMSHAFT POSITION $204.82 To Order
View All

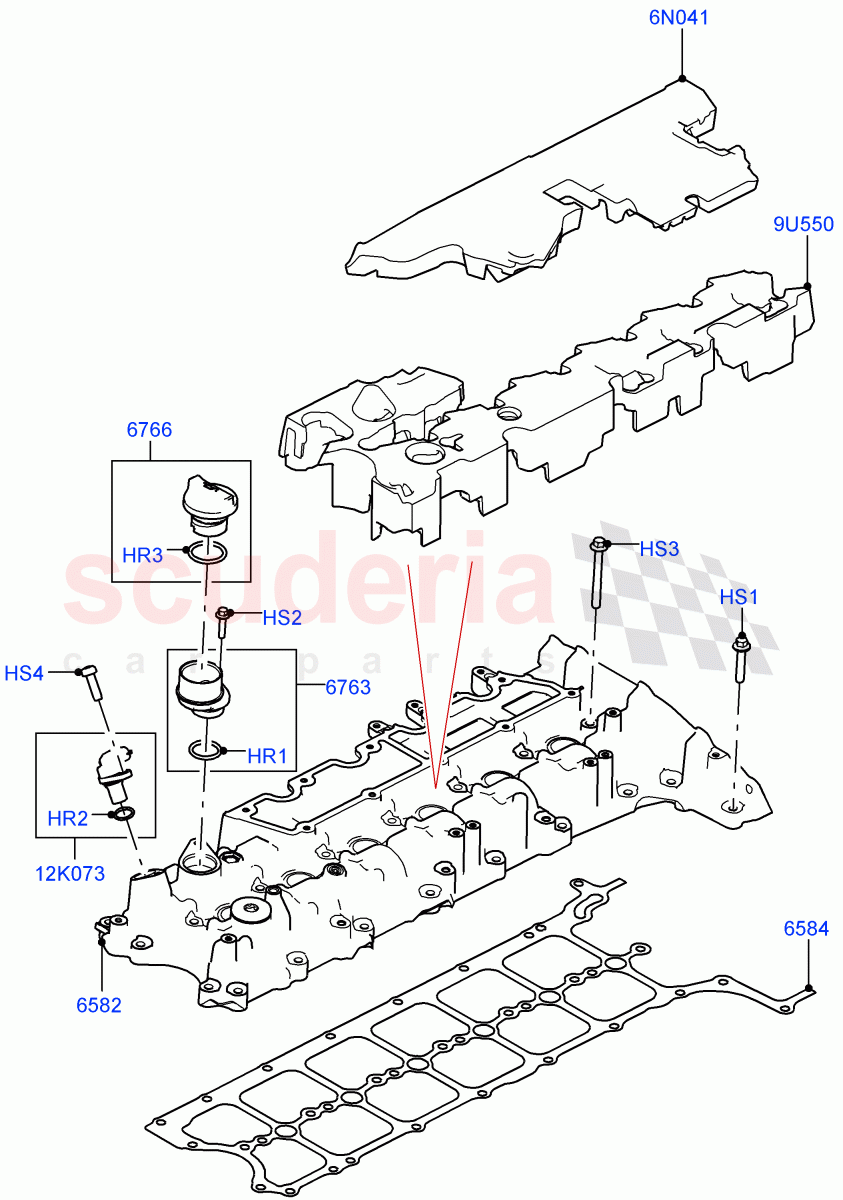

Cylinder Head Cover (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR133542
RING - SEALING
FILLER,
IN STOCK 		$4.67 1
HR2 LR095781
O-RING
17.0MM, Camshaft Position Sensor / From: LA000001
IN STOCK 		$9.79 1
HR3 LR073781
O-RING
Filler Cap,
IN STOCK 		$5.08 1
HS1 LR073649
SCREW
M8 x 40MM / From: LA000001 		$2.51 19
HS2 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: LA000001 		$1.34 1
HS3 LR125323
SCREW
M8 x 70MM / From: LA000001 		$1.97 7
HS4 LR073720
SCREW
Camshaft Position Sensor, M6 X 20MM / From: LA000001 		$1.58 1
6N041 LR125600
INSULATOR - INTAKE MANIFOLD
Top / From: LA000001 		$147.34 1
9U550 LR125528
COVER - INSULATOR
Lower / From: LA000001 / To: MA776488 		$87.12 1
9U550 LR154867
COVER - INSULATOR
Lower / From: MA776489 / To: MA999999 		$74.87 1
9U550 LR154867
COVER - INSULATOR
Lower / From: NA700000 / To: NA799999 		$74.87 1
9U550 LR154867
COVER - INSULATOR
Lower / From: NA200000 / To: NA208021 		$74.87 1
9U550 LR163151
COVER - INSULATOR
Lower / From: NA208022 / To: NA699999 		$74.62 1
9U550 LR163151
COVER - INSULATOR
Lower / From: PA000001 		$74.62 1
12K073 LR074065
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: LA000001 		$204.82 1
6582 LR125322
COVER - CYLINDER HEAD
From: LA000001 		$589.77 1
6584 LR125592
GASKET - CAMSHAFT COVER
Camshaft Cover / From: LA000001 		$46.06 1
6763 LR121749
PIPE - OIL INLET
From: LA000001 		$254.96 1
6766 LR125595
CAP - OIL FILLER
From: LA000001 		$43.11 1
