Front Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 20, Non Svr, Disc And...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Front Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 20, Non SVR, Disc And...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.20 IN STOCK
Photo Part No Description Price (each) Stock
LR033274 BOLT $8.06 IN STOCK
Photo Part No Description Price (each) Stock
LR043873 SCREW - PAN - TORX $1.11 IN STOCK
Photo Part No Description Price (each) Stock
RYP500920 SCREW $0.75 IN STOCK
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR016176 DISC - BRAKE $193.87 To Order
LR161894 DISC - BRAKE $230.65 To Order
LR161894 DISC - BRAKE $230.65 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083935 KIT - CALIPER BRAKE PAD $303.93 To Order
LR093886 KIT - CALIPER BRAKE PAD $303.93 To Order
LR110087 KIT - CALIPER BRAKE PAD $377.42 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR039525 SCREW - BLEED $16.22 IN STOCK
Photo Part No Description Price (each) Stock
LR020972 GREASE - CHASSIS LUBRICATION $54.84 To Order
Photo Part No Description Price (each) Stock
LR039523 CALIPER - BRAKE $1,279.62 To Order
LR039524 CALIPER - BRAKE $1,279.62 To Order
LR049115 CALIPER - BRAKE $1,272.01 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090700 BRACKET - WIRING $21.50 To Order
Photo Part No Description Price (each) Stock
LR016683 KIT - BRAKE CALIPER ATTACHMENT $100.63 To Order
LR113962 KIT - BRAKE CALIPER ATTACHMENT $102.61 To Order
Photo Part No Description Price (each) Stock
LR082551 SHIELD - SPLASH $103.92 To Order
LR089139 SHIELD - SPLASH $103.20 To Order
LR082550 SHIELD - SPLASH $99.40 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016685 KIT - BOOT $73.73 To Order
Photo Part No Description Price (each) Stock
LR039165 DUCT - BRAKE CALIPER COOLING $11.67 IN STOCK
Photo Part No Description Price (each) Stock
LR033275 WIRE - BRAKE PAD WEAR WARNING $40.23 IN STOCK
LR098988 WIRE - BRAKE PAD WEAR WARNING $41.30 IN STOCK
View All

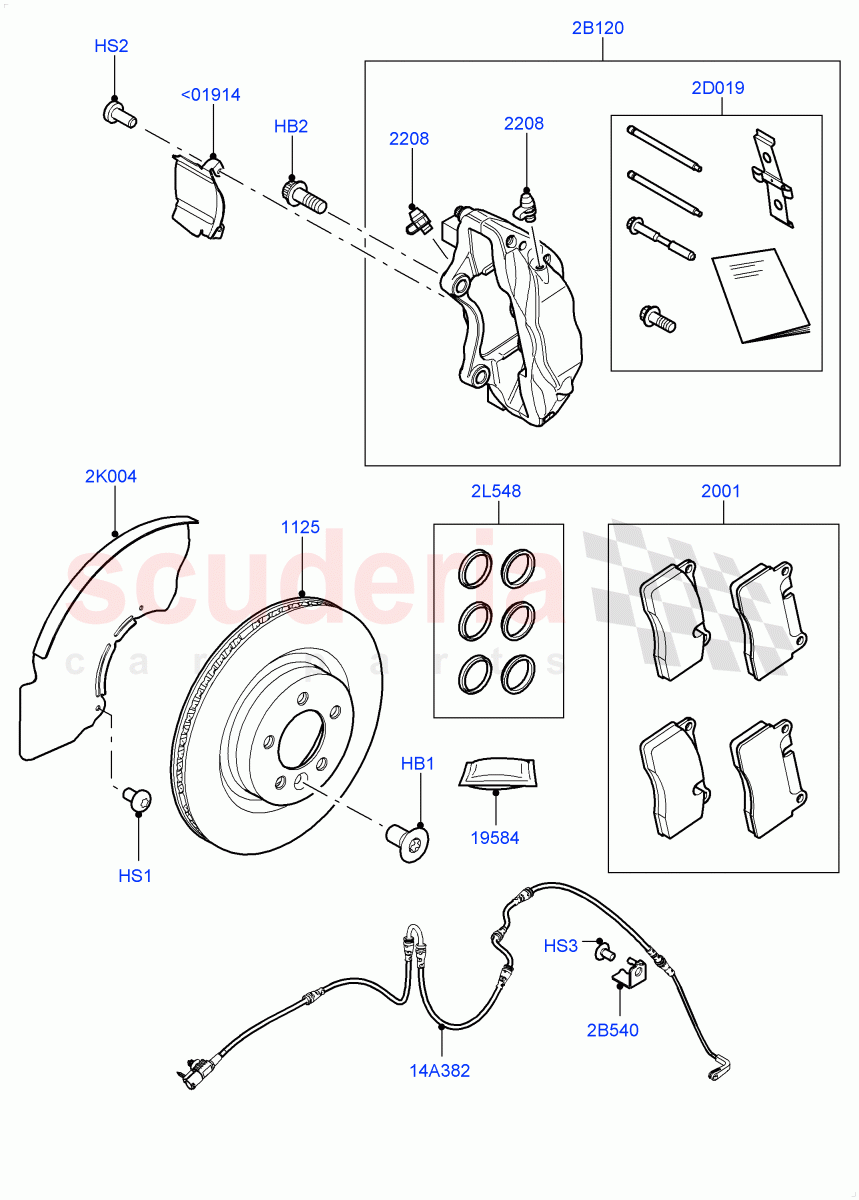

Front Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 20, Non SVR, Disc And Caliper Size-Frt 20/RR 20) ((V) FROMGA652128) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01914 LR039165
DUCT - BRAKE CALIPER COOLING
Brake Caliper Cooling, RH/LH / From: GA652129
IN STOCK 		$11.67 2
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: GA652129
IN STOCK 		$3.20 2
HB2 LR033274
BOLT
Hexagonal Head, M16 X 40 / From: GA652129
IN STOCK 		$8.06 4
HS1 LR043873
SCREW - PAN - TORX
M6 X 16MM, Torx / From: GA652129
IN STOCK 		$1.11 4
HS2 RYP500920
SCREW
M6 X 14MM, Torx / From: GA652129
IN STOCK 		$0.75 4
HS3 LR018509
SCREW
M6 X 10MM, Torx / From: JA000001
IN STOCK 		$1.24 1
2B120 LR039523
CALIPER - BRAKE
With Non Painted Brake Calipers / RH, Brembo 20" Caliper / From: GA652129 / To: HA688102 		$1,279.62 1
2B120 LR039524
CALIPER - BRAKE
With Non Painted Brake Calipers / LH, Brembo 20" Caliper / From: GA652129 / To: HA688102 		$1,279.62 1
2B120 LR049115
CALIPER - BRAKE
Brake Calipers - Red / RH, Brembo 20" Caliper / From: GA652129 / To: HA688102 		$1,272.01 1
2B120 LR049117
CALIPER - BRAKE
Brake Calipers - Red / LH, Brembo 20" Caliper / From: GA652129 / To: HA688102 		$1,272.01 1
2B120 LR110111
CALIPER - BRAKE - LESS PADS
Brake Calipers - Red / LH, Brembo 20" Caliper / From: JA000001 / To: LA709106 		$1,176.30 1
2B120 LR110105
CALIPER - BRAKE - LESS PADS
Brake Calipers - Red / RH, Brembo 20" Caliper / From: JA000001 / To: LA709106 		$1,176.30 1
2B120 LR110103
CALIPER - BRAKE - LESS PADS
Brake Calipers - Grey Anodised / RH, Brembo 20" Caliper / From: JA000001 / To: LA709106 		$1,097.20 1
2B120 LR110110
CALIPER - BRAKE - LESS PADS
Brake Calipers - Grey Anodised / LH, Brembo 20" Caliper / From: JA000001 / To: LA709106 		$1,097.20 1
2B120 LR139251
CALIPER - BRAKE
With Non Painted Brake Calipers / RH, Brembo 20" Caliper / From: HA688103 / To: HA999999 		$1,218.69 1
2B120 LR139252
CALIPER - BRAKE
With Non Painted Brake Calipers / LH, Brembo 20" Caliper / From: HA688103 / To: HA999999 		$1,171.55 1
2B120 LR139243
CALIPER - BRAKE
Brake Calipers - Red / RH, Brembo 20" Caliper / From: HA688103 / To: HA999999 		$1,272.01 1
2B120 LR139244
CALIPER - BRAKE
Brake Calipers - Red / LH, Brembo 20" Caliper / From: HA688103 / To: HA999999 		$1,211.45 1
2B120 LR138721
CALIPER - BRAKE - LESS PADS
Brake Calipers - Grey Anodised / RH, Brembo 20" Caliper / From: LA709107 		$1,097.20 1
2B120 LR138722
CALIPER - BRAKE - LESS PADS
Brake Calipers - Red / RH, Brembo 20" Caliper / From: LA709107 		$1,181.04 1
2B120 LR138723
CALIPER - BRAKE - LESS PADS
Brake Calipers - Grey Anodised / LH, Brembo 20" Caliper / From: LA709107 		$1,097.20 1
2B120 LR138724
CALIPER - BRAKE - LESS PADS
Brake Calipers - Red / LH, Brembo 20" Caliper / From: LA709107 		$1,120.29 1
2B540 LR090700
BRACKET - WIRING
From: JA000001 		$21.50 1
2D019 LR016683
KIT - BRAKE CALIPER ATTACHMENT
Pad Clip And Retaining Pins / From: GA652129 / To: JA188838 		$100.63 2
2D019 LR113962
KIT - BRAKE CALIPER ATTACHMENT
Pad Clip And Retaining Pins / From: JA188839 		$102.61 1
2K004 LR082551
SHIELD - SPLASH
RH / From: GA652129 / To: GA654192 		$103.92 1
2K004 LR089139
SHIELD - SPLASH
RH / From: GA654193 / To: HA999999 		$103.20 1
2K004 LR082550
SHIELD - SPLASH
LH / From: GA652129 / To: GA654192 		$99.40 1
2K004 LR089140
SHIELD - SPLASH
LH / From: GA654193 / To: HA999999 		$98.71 1
2K004 LR099009
SHIELD - SPLASH
LH / From: JA000001 		$85.67 1
2K004 LR099008
SHIELD - SPLASH
RH / From: JA000001 		$85.67 1
2L548 LR016685
KIT - BOOT
Brake Caliper / From: GA652129 		$73.73 1
14A382 LR033275
WIRE - BRAKE PAD WEAR WARNING
From: GA652129 / To: HA999999
IN STOCK 		$40.23 1
14A382 LR098988
WIRE - BRAKE PAD WEAR WARNING
From: JA000001
IN STOCK 		$41.30 1
1125 LR016176
DISC - BRAKE
From: GA652129 / To: HA999999 		$193.87 2
1125 LR161894
DISC - BRAKE
380MM / From: JA000001 / To: MA999999 		$230.65 2
1125 LR161894
DISC - BRAKE
380MM / From: NA700000 / To: NA799999 		$230.65 2
1125 LR161894
DISC - BRAKE
380MM / From: NA200000 / To: NA205230 		$230.65 2
1125 LR161894
DISC - BRAKE
380MM / From: NA205231 / To: NA699999 		$230.65 2
1125 LR161894
DISC - BRAKE
380MM / From: PA000001 		$230.65 2
2001 LR083935
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips / From: GA652129 / To: HA133374 		$303.93 1
2001 LR093886
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips / From: HA133375 / To: HA138414 		$303.93 1
2001 LR110087
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: JA000001 / To: MA999999 		$377.42 1
2001 LR160069
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips / From: HA138415 / To: HA999999
IN STOCK 		$442.83 1
2001 LR160069
KIT - CALIPER BRAKE PAD
Axle Set, High Performance Retailer Fit Option In Europe Only, Less Clips / From: JA000001
IN STOCK 		$442.83 1
2001 LR110087
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: NA700000 / To: NA799999 		$377.42 1
2001 LR110087
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: NA200000 / To: NA202416 		$377.42 1
2001 LR156926
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: NA202417 / To: NA211157
IN STOCK 		$377.42 1
2001 LR164745
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: NA211158 / To: NA699999 		$357.56 1
2001 LR164745
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: PA000001 		$357.56 1
2208 LR039525
SCREW - BLEED
From: GA652129
IN STOCK 		$16.22 4
19584 LR020972
GREASE - CHASSIS LUBRICATION
Molykote CU7439 Plus / From: GA652129 		$54.84 1
