Rear Axle (With Petrol Engines, 8Hp Gen3 Hybrid Trans, Torque Vectoring By Braking (Tvbb), 4.4L...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Rear Axle (With Petrol Engines, 8HP Gen3 Hybrid Trans, Torque Vectoring By Braking (TVBB), 4.4L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033214 BOLT $4.50 IN STOCK
Photo Part No Description Price (each) Stock
LR085983 BOLT $6.48 To Order
Photo Part No Description Price (each) Stock
RYH500510 NUT - HEX. $3.67 To Order
Photo Part No Description Price (each) Stock
LR053501 STUD - THREADED $8.61 To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $23.08 To Order
LR158113 SEAL - OIL $23.08 To Order
Photo Part No Description Price (each) Stock
LR091697 DIFFERENTIAL - REAR $4,059.33 To Order
LR091681 DIFFERENTIAL - REAR $4,079.06 To Order
LR052906 DIFFERENTIAL - REAR $2,080.43 To Order
...and 20 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500080 PLUG - OIL $21.80 To Order
Photo Part No Description Price (each) Stock
LR058291 DAMPER - DAMPING MASS $174.26 IN STOCK
Photo Part No Description Price (each) Stock
LR041966 MOTOR - REAR DIFFERENTIAL $726.29 To Order
LR137482 MOTOR - REAR DIFFERENTIAL $467.06 To Order
Photo Part No Description Price (each) Stock
LR034527 TUBE - BREATHER $29.26 To Order
LR034527 TUBE - BREATHER $29.26 To Order
LR087164 TUBE - BREATHER $37.90 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.49 To Order
Photo Part No Description Price (each) Stock
LR043121 HOUSING-DIFFERENTIAL LOCKING MOTOR $375.01 To Order
Photo Part No Description Price (each) Stock
LR033261 INSULATOR - BUSH TYPE $23.22 To Order
Photo Part No Description Price (each) Stock
LR033262 INSULATOR - BUSH TYPE $23.22 To Order
Photo Part No Description Price (each) Stock
NSC500590 SENSOR - TRANS. FLUID TEMP. - TFT $64.36 To Order
Photo Part No Description Price (each) Stock
LR174475 SEAL - OIL $21.89 To Order
LR174475 SEAL - OIL $21.89 To Order
LR174475 SEAL - OIL $21.89 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR072608 PLATE - DIFFERENTAL MOUNTING $30.14 To Order
Photo Part No Description Price (each) Stock
LR072607 PLATE - DIFFERENTAL MOUNTING $30.14 To Order
View All

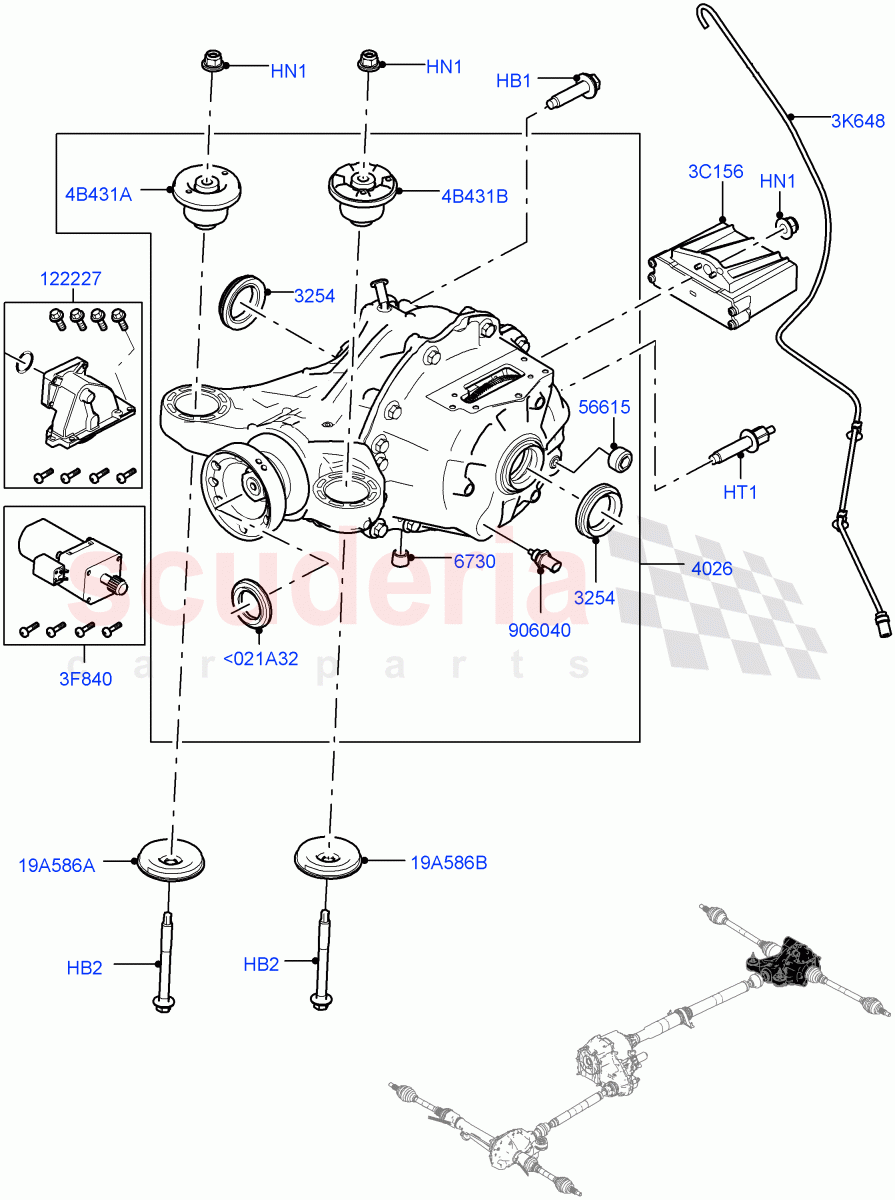

Rear Axle (With Petrol Engines, 8HP Gen3 Hybrid Trans, Torque Vectoring By Braking (TVBB), 4.4L DOHC DITC V8 Diesel, 3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP76, 8 Speed Auto Trans ZF 8HP70 4WD, 8 Speed Auto Trans ZF 8HP45, 3.0L AJ20D6 Diesel High) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR174475
SEAL - OIL
Pinion Seal kit / From: HA000001 / To: MA999999 		$21.89 1
<021A32 LR174475
SEAL - OIL
Pinion Seal kit / From: NA700000 / To: NA799999 		$21.89 1
<021A32 LR174475
SEAL - OIL
Pinion Seal kit / From: NA200000 / To: NA206553 		$21.89 1
<021A32 LR161976
SEAL - OIL
Pinion Seal kit / From: NA206554 / To: NA699999 		$33.14 1
<021A32 LR161976
SEAL - OIL
Pinion Seal kit / From: PA000001 		$33.14 1
HB1 LR033214
BOLT
Bolt And Washer, Hexagonal Head, M14 X 55MM / From: HA000001
IN STOCK 		$4.50 1
HB2 LR085983
BOLT
Hexagonal Head, M12 X 114,5 / From: HA000001 		$6.48 2
HN1 RYH500510
NUT - HEX.
M12, Nut And Washer / From: HA000001 		$3.67 3
HT1 LR053501
STUD - THREADED
M14 X 55 + M8 X 21 / From: HA000001 		$8.61 1
3C156 LR058291
DAMPER - DAMPING MASS
From: HA000001
IN STOCK 		$174.26 1
3F840 LR041966
MOTOR - REAR DIFFERENTIAL
New Part - Please Check For Remanufactured Version, Service Kit - Motor, Fixing And O-ring / From: HA000001 		$726.29 1
3F840 LR137482
MOTOR - REAR DIFFERENTIAL
Remanufactured Part, Service Kit - Motor, Fixing And O-ring / From: HA000001 		$467.06 1
3K648 LR034527
TUBE - BREATHER
From: HA000001 / To: HA999999 		$29.26 1
3K648 LR034527
TUBE - BREATHER
3.0L DOHC GDI SC V6 PETROL / From: JA000001 		$29.26 1
3K648 LR087164
TUBE - BREATHER
2.0L I4 High DOHC AJ200 Petrol / From: JA000001 		$37.90 1
3K648 LR100850
TUBE - BREATHER
2.0L AJ200P Hi PHEV / From: JA000001 		$37.90 1
4B431A LR033261
INSULATOR - BUSH TYPE
RH / From: HA000001 		$23.22 1
4B431B LR033262
INSULATOR - BUSH TYPE
LH / From: HA000001 		$23.22 1
19A586A LR072608
PLATE - DIFFERENTAL MOUNTING
RH / From: HA000001 		$30.14 1
19A586B LR072607
PLATE - DIFFERENTAL MOUNTING
LH / From: HA000001 		$30.14 1
3254 LR158113
SEAL - OIL
Driveshaft / From: HA000001 / To: LA999999 		$23.08 2
3254 LR158113
SEAL - OIL
Driveshaft / From: MA000001 		$23.08 2
4026 LR091697
DIFFERENTIAL - REAR
4.4L DOHC DITC V8 Diesel / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: HA000001 		$4,059.33 1
4026 LR091681
DIFFERENTIAL - REAR
3.0 V6 Diesel / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing / From: HA000001 / To: HA999999 		$4,079.06 1
4026 LR052906
DIFFERENTIAL - REAR
3.0 V6 Diesel / Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: JA000001 		$2,080.43 1
4026 LR091689
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: HA000001 / To: HA999999 		$2,709.66 1
4026 LR091689
DIFFERENTIAL - REAR
5.0 Petrol AJ133 DOHC CDA / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: JA000001 / To: MA999999 		$2,709.66 1
4026 LR091674
DIFFERENTIAL - REAR
2.0L AJ200P Hi PHEV / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: JA000001 / To: MA999999 		$2,937.14 1
4026 LR091689
DIFFERENTIAL - REAR
3.0L AJ20D6 Diesel High / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: LA000001 / To: MA999999 		$2,709.66 1
4026 LR125017
DIFFERENTIAL - REAR
4.4L DOHC DITC V8 Diesel / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, Remanufactured Part, UK Market Only / From: HA000001 		$3,051.48 1
4026 LR125022
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, Remanufactured Part, UK Market Only / From: HA000001 / To: HA999999 		$2,036.88 1
4026 LR125022
DIFFERENTIAL - REAR
5.0L P AJ133 DOHC CDA S/C Enhanced / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, Remanufactured Part, UK Market Only / From: JA000001 / To: MA999999 		$2,036.88 1
4026 LR125022
DIFFERENTIAL - REAR
3.0L AJ20D6 Diesel High / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, Remanufactured Part, UK Market Only / From: LA000001 		$2,036.88 1
4026 LR125026
DIFFERENTIAL - REAR
2.0L I4 High DOHC AJ200 Petrol / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, Remanufactured Part, UK Market Only / From: JA000001 		$2,036.88 1
4026 LR052907
DIFFERENTIAL - REAR
3.0 V6 Diesel / Less Motor And Motor Housing, Remanufactured Part / From: JA000001 		$1,837.93 1
4026 LR091674
DIFFERENTIAL - REAR
2.0L I4 High DOHC AJ200 Petrol / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: NA700000 / To: NA799999 		$2,937.14 1
4026 LR091674
DIFFERENTIAL - REAR
2.0L I4 High DOHC AJ200 Petrol / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: NA200000 / To: NA206553 		$2,937.14 1
4026 LR161862
DIFFERENTIAL - REAR
2.0L I4 High DOHC AJ200 Petrol / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: NA206554 / To: NA699999 		$3,160.92 1
4026 LR161862
DIFFERENTIAL - REAR
2.0L AJ200P Hi PHEV / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: PA000001 		$3,160.92 1
4026 LR091689
DIFFERENTIAL - REAR
5.0L P AJ133 DOHC CDA S/C Enhanced / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: NA700000 / To: NA799999 		$2,709.66 1
4026 LR091689
DIFFERENTIAL - REAR
3.0L AJ20D6 Diesel High / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: NA200000 / To: NA206553 		$2,709.66 1
4026 LR161861
DIFFERENTIAL - REAR
5.0L P AJ133 DOHC CDA S/C Enhanced / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: PA000001 		$3,295.86 1
4026 LR161861
DIFFERENTIAL - REAR
3.0L AJ20D6 Diesel High / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, New Part-Please Check For Reman Version / From: NA206554 / To: NA699999 		$3,295.86 1
4026 LR125022
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, Remanufactured Part, UK Market Only / From: NA700000 / To: NA799999 		$2,036.88 1
4026 LR125022
DIFFERENTIAL - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / Less Electronic Torque Managed (ETM) Actuator Motor, Less Motor And Motor Housing, Remanufactured Part, UK Market Only / From: NA200000 / To: NA206553 		$2,036.88 1
6730 TYB500080
PLUG - OIL
Plug - Oil Drain / From: HA000001 		$21.80 1
56615 TYB500060
PLUG - FILLER
Filler Plug / From: HA000001 		$3.49 1
122227 LR043121
HOUSING-DIFFERENTIAL LOCKING MOTOR
Service Kit - Reduction Gear Housing, Fixing And O-ring / From: HA000001 		$375.01 1
906040 NSC500590
SENSOR - TRANS. FLUID TEMP. - TFT
Sensor - Oil Temperature / From: HA000001 		$64.36 1
