Find Your Part

View All

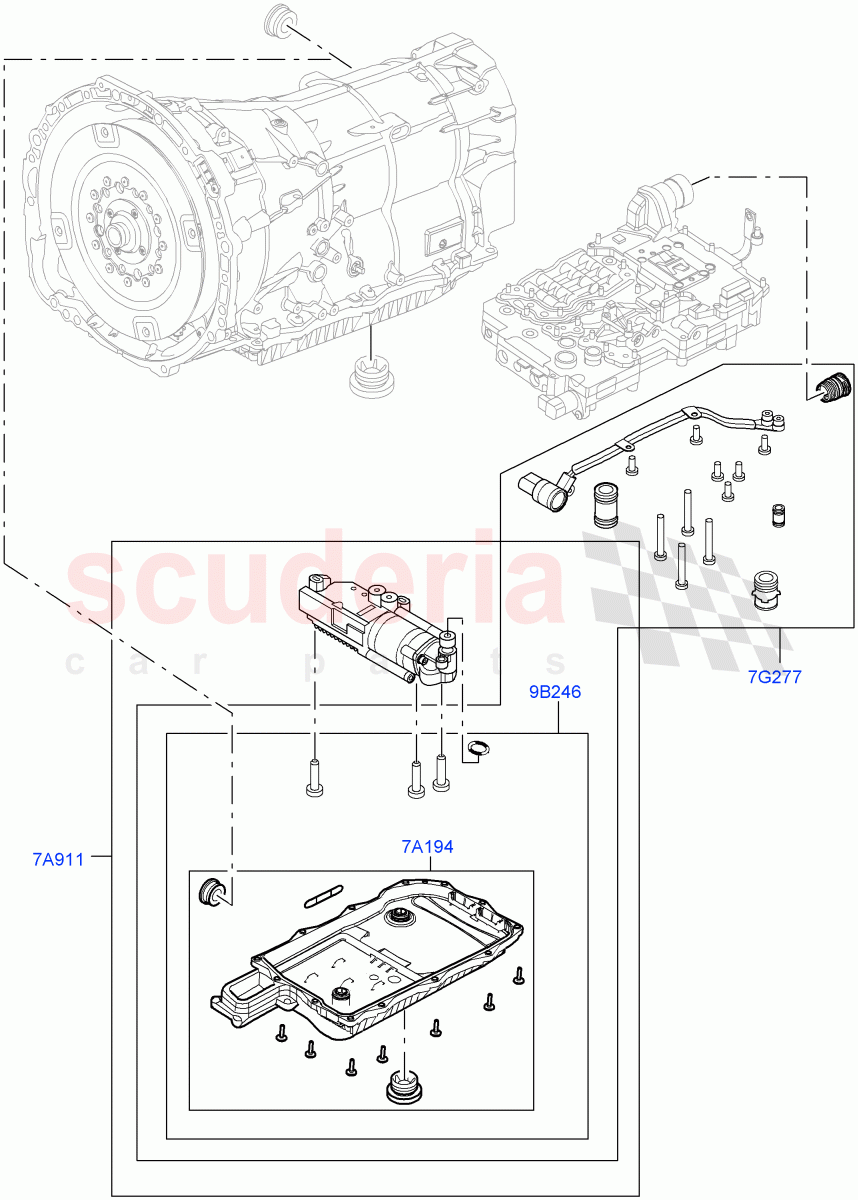

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR114012	PAN - TRANSMISSION OIL	$381.91	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114015	KIT - HARNESS - ELECT. OIL PUMP	$499.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114021	RING - SEALING	$268.24	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
7A194	LR114012	PAN - TRANSMISSION OIL	LR114012 PAN - TRANSMISSION OIL Includes Oil Filter, Includes Sealing Gasket / From: JA000001	$381.91	1
7A911	LR114013	KIT - ELECTRIC OIL PUMP	LR114013 KIT - ELECTRIC OIL PUMP Includes Oil Pan / From: JA000001 / To: KA999999	$2,735.26	1
7A911	LR146224	KIT - ELECTRIC OIL PUMP	LR146224 KIT - ELECTRIC OIL PUMP Includes Oil Pan / From: LA714355 / To: LA799999	$2,787.25	1
7A911	LR114013	KIT - ELECTRIC OIL PUMP	LR114013 KIT - ELECTRIC OIL PUMP Includes Oil Pan / From: LA800000 / To: LA899999	$2,735.26	1
7A911	LR114013	KIT - ELECTRIC OIL PUMP	LR114013 KIT - ELECTRIC OIL PUMP Includes Oil Pan / From: LA700000 / To: LA714354	$2,735.26	1
7A911	LR146224	KIT - ELECTRIC OIL PUMP	LR146224 KIT - ELECTRIC OIL PUMP Includes Oil Pan / From: MA000001	$2,787.25	1
7G277	LR114015	KIT - HARNESS - ELECT. OIL PUMP	LR114015 KIT - HARNESS - ELECT. OIL PUMP Includes Oil Pan, Supplied Without Oil Pump / From: JA000001	$499.10	1
9B246	LR114021	RING - SEALING	LR114021 RING - SEALING Includes Oil Pan, Supplied Without Oil Pump / From: JA000001	$268.24	1
