Timing Gear (Lower, Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Timing Gear (Lower, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006027 BOLT $6.44 To Order
LR056262 BOLT - HEX.HEAD $3.13 To Order
LR062017 BOLT - HEX.HEAD $3.10 To Order
Photo Part No Description Price (each) Stock
FT110256 SCREW $2.30 IN STOCK
Photo Part No Description Price (each) Stock
LR005996 GEAR - CRANKSHAFT $122.55 To Order
LR067242 GEAR - CRANKSHAFT $121.54 To Order
LR097162 GEAR - CRANKSHAFT $119.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013377 BOLT - HEX.HEAD $13.66 To Order
Photo Part No Description Price (each) Stock
1311306 KIT - DRIVE BELT $83.88 IN STOCK
Photo Part No Description Price (each) Stock
LR016655 BELT - TIMING $209.64 To Order
LR078913 BELT - TIMING $230.63 IN STOCK
View All

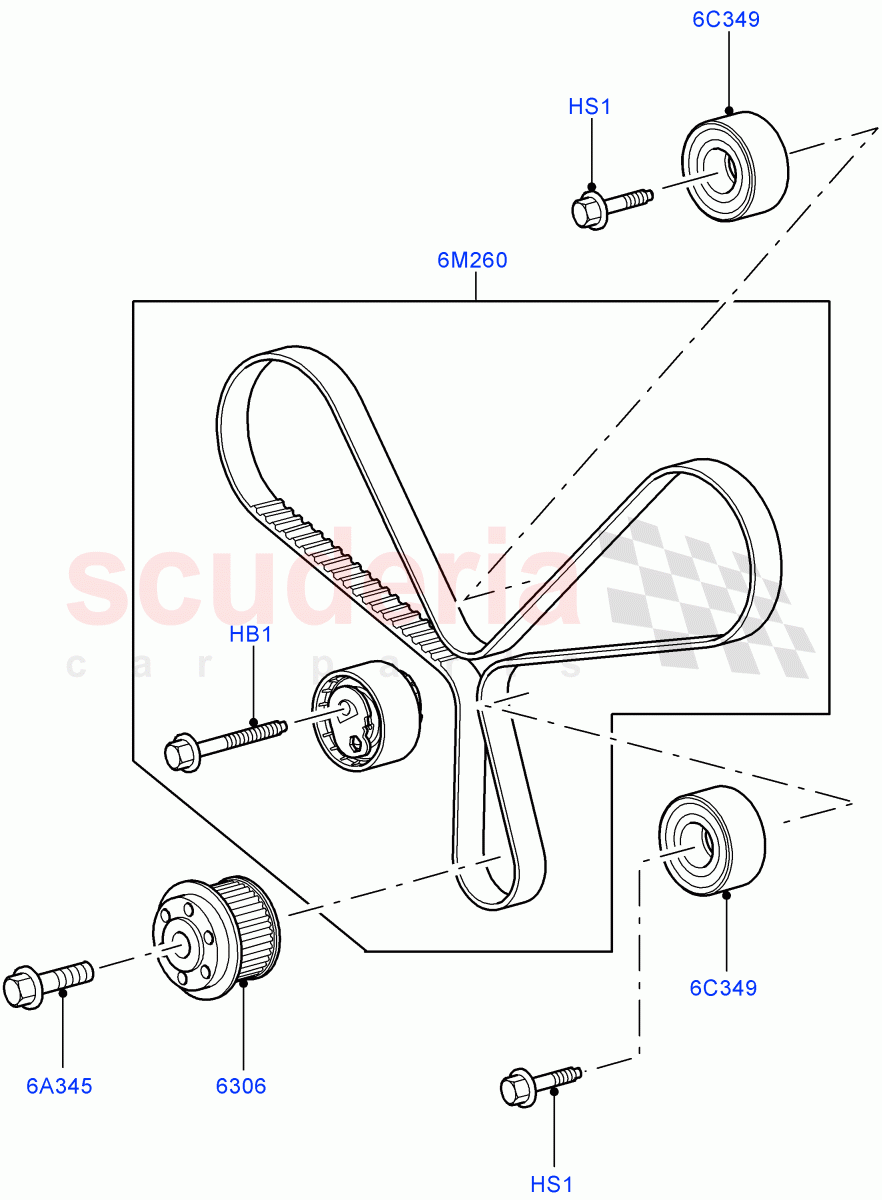

Timing Gear (Lower, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006027
BOLT
3.0L 24V V6 Turbo Diesel Std Flow / M8 X 75MM / To: EA308270 		$6.44 1
HB1 LR056262
BOLT - HEX.HEAD
3.0L 24V V6 Turbo Diesel Std Flow / M8 X 75MM / From: EA308271 		$3.13 1
HB1 LR062017
BOLT - HEX.HEAD
3.0 V6 D Low MT ROW / M10 x 75MM / From: FA000001 		$3.10 1
HS1 FT110256
SCREW
M10 X 25MM
IN STOCK 		$2.30 2
6A345 LR013377
BOLT - HEX.HEAD
M16 X 70 		$13.66 1
6C349 1311306
KIT - DRIVE BELT
Timing Belt
IN STOCK 		$83.88 2
6M260 LR016655
BELT - TIMING
3.0L 24V V6 Turbo Diesel Std Flow 		$209.64 1
6M260 LR078913
BELT - TIMING
3.0 V6 D Low MT ROW / From: FA000001
IN STOCK 		$230.63 1
6306 LR005996
GEAR - CRANKSHAFT
3.0L 24V V6 Turbo Diesel Std Flow 		$122.55 1
6306 LR067242
GEAR - CRANKSHAFT
3.0 V6 D Gen2 Twin Turbo / Includes Friction Washer / From: FA000001 / To: GA999999 		$121.54 1
6306 LR097162
GEAR - CRANKSHAFT
3.0 V6 D Low MT ROW / Includes Friction Washer / From: HA000001 / To: JA186243 		$119.07 1
6306 LR114018
GEAR - CRANKSHAFT
3.0 V6 D Gen2 Twin Turbo / From: JA186244 		$130.20 1
