Name: Fuel Lines (Front) (3.0 V6 Diesel)
Rating: 4.3 (1 reviews)

Fuel Lines (Front) (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Front) (3.0 V6 Diesel)

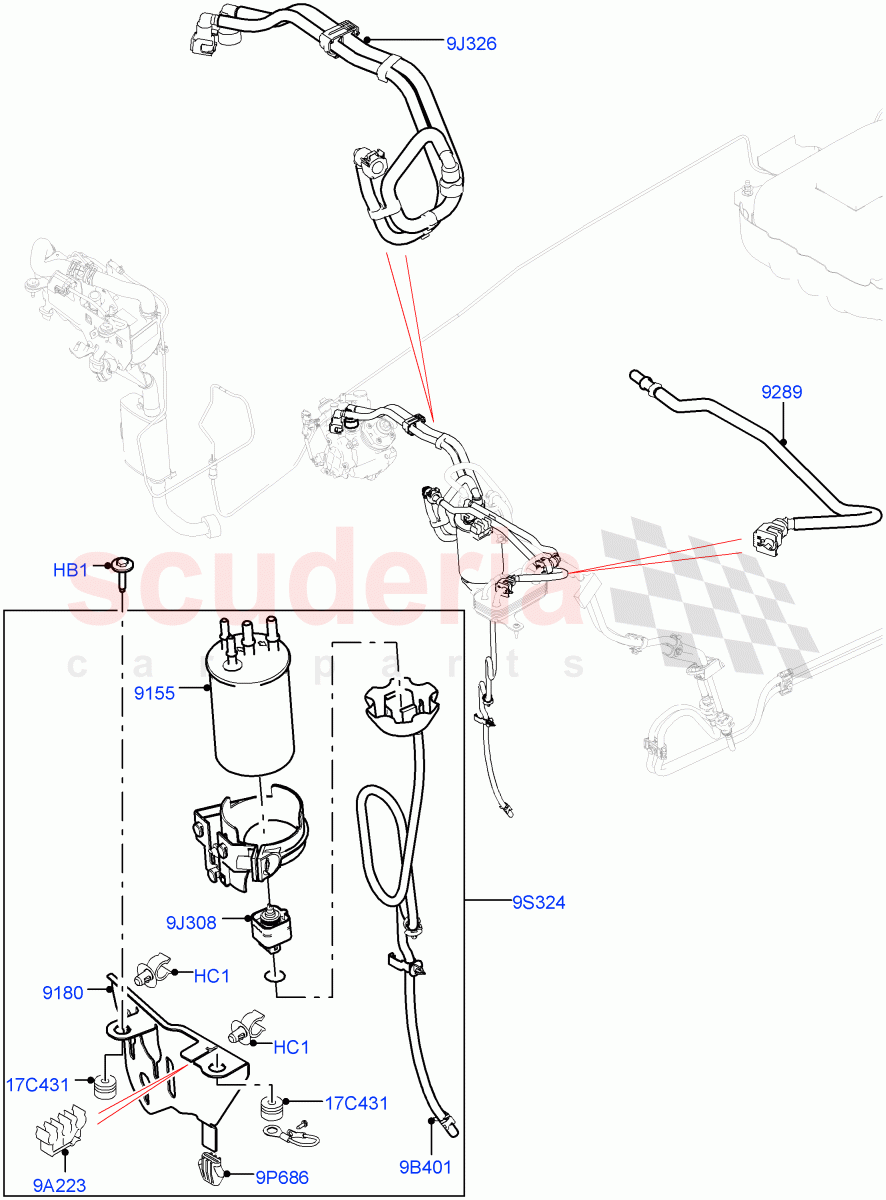

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106066	BOLT	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041978	FILTER - FUEL	$128.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR040360	BRACKET - FUEL FILTER	$23.03	To Order
	LR064222	Bracket - Fuel Filter	Enquire	To Order
	LR067324	BRACKET - FUEL FILTER	$30.91	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036736	TUBE - FUEL	$57.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040124	CLIP	$4.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040357	TUBE - DRAIN	$51.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084452	SENSOR	$132.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR037461	TUBE - FUEL	$163.95	To Order
	LR062825	TUBE - FUEL	$40.25	To Order
	LR088539	TUBE - FUEL	$38.85	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081537	GROMMET - ADAPTOR TO BRACKET	$9.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045806	FILTER - FUEL - PRIMARY	$428.61	To Order
	LR064182	FILTER - FUEL - PRIMARY	$168.83	To Order
	LR067323	FILTER - FUEL - PRIMARY	$159.05	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081530	GROMMET - FUEL FILTER	$11.03	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB106066	BOLT IN STOCK	FB106066 BOLT M6 x 30MM IN STOCK	$0.67	2
HC1	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic	$1.69	2
9A223	LR040124	CLIP	LR040124 CLIP Triple	$4.07	1
9B401	LR040357	TUBE - DRAIN	LR040357 TUBE - DRAIN Drain, Less Sensor	$51.09	1
9J308	LR084452	SENSOR IN STOCK	LR084452 SENSOR Sensor - Water Detector IN STOCK	$132.35	1
9J326	LR037461	TUBE - FUEL	LR037461 TUBE - FUEL Feed, Return, Set Of 2 Pieces / To: EA999999	$163.95	1
9J326	LR062825	TUBE - FUEL	LR062825 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: FA000001 / To: GA112867	$40.25	1
9J326	LR088539	TUBE - FUEL	LR088539 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: GA112868 / To: HA136675	$38.85	1
9J326	LR105299	TUBE - FUEL	LR105299 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: HA149649	$114.96	1
9J326	LR094012	TUBE - FUEL	LR094012 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: HA136676 / To: HA149648	$103.83	1
9P686	LR081537	GROMMET - ADAPTOR TO BRACKET	LR081537 GROMMET - ADAPTOR TO BRACKET From: FA000001	$9.22	1
9S324	LR045806	FILTER - FUEL - PRIMARY	LR045806 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / To: EA999999	$428.61	1
9S324	LR064182	FILTER - FUEL - PRIMARY	LR064182 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: FA000001 / To: FA516469	$168.83	1
9S324	LR067323	FILTER - FUEL - PRIMARY	LR067323 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: FA516470 / To: FA999999	$159.05	1
9S324	LR081085	FILTER - FUEL - PRIMARY	LR081085 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: GA000001 / To: GA591157	$227.68	1
9S324	LR084459	FILTER - FUEL - PRIMARY	LR084459 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: GA591158	$220.39	1
17C431	LR081530	GROMMET - FUEL FILTER	LR081530 GROMMET - FUEL FILTER	$11.03	2
9155	LR041978	FILTER - FUEL IN STOCK	LR041978 FILTER - FUEL Less Bracket, Primary IN STOCK	$128.38	1
9180	LR040360	BRACKET - FUEL FILTER	LR040360 BRACKET - FUEL FILTER To: EA999999	$23.03	1
9180	LR064222	Bracket - Fuel Filter	LR064222 Bracket - Fuel Filter From: FA000001 / To: FA516469	-	1	Enquire
9180	LR067324	BRACKET - FUEL FILTER	LR067324 BRACKET - FUEL FILTER From: FA516470 / To: FA999999	$30.91	1
9180	LR081087	BRACKET - FUEL FILTER	LR081087 BRACKET - FUEL FILTER From: GA000001	$37.93	1
9289	LR036736	TUBE - FUEL	LR036736 TUBE - FUEL Cooler, Inlet	$57.39	1

Fuel Lines (Front) (3.0 V6 Diesel)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Front) (3.0 V6 Diesel)
