Cooling System Pipes And Hoses (Engine) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans Zf 8Hp70 4Wd,...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Engine) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4147433 BOLT $1.64 IN STOCK
LR105435 BOLT $1.13 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.47 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR063041 BRACKET - HEATER MOUNTING $41.30 To Order
Photo Part No Description Price (each) Stock
1336551 GASKET $3.75 To Order
Photo Part No Description Price (each) Stock
LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW $31.35 To Order
LR081659 HOSE - RADIATOR TO ENG. VENT ELBOW $62.77 To Order
Photo Part No Description Price (each) Stock
LR073372 CONNECTION - WATER OUTLET $65.53 IN STOCK
Photo Part No Description Price (each) Stock
LR062071 HOSE - COOLING SYSTEM $55.09 To Order
Photo Part No Description Price (each) Stock
LR062104 T-CONNECTOR $66.89 To Order
Photo Part No Description Price (each) Stock
LR038158 HEATER - ENGINE BLOCK $247.27 To Order
Photo Part No Description Price (each) Stock
LR095226 HOSE - RADIATOR $157.59 To Order
LR081657 HOSE - RADIATOR $115.54 To Order
LR095226 HOSE - RADIATOR $157.59 To Order
Photo Part No Description Price (each) Stock
LR062083 HOSE - THERMOSTAT $83.01 To Order
LR078767 HOSE - THERMOSTAT $42.94 To Order
Photo Part No Description Price (each) Stock
LR062074 HOSE - OIL COOLER $75.30 To Order
Photo Part No Description Price (each) Stock
LR078764 HOSE - WATER $74.85 To Order
LR139398 HOSE - WATER $74.85 To Order
Photo Part No Description Price (each) Stock
LR062095 HOSE - WATER $212.72 To Order
Photo Part No Description Price (each) Stock
LR062094 HOSE - WATER $66.02 To Order
Photo Part No Description Price (each) Stock
LR062081 HOSE - RADIATOR $344.05 To Order
LR081664 HOSE - RADIATOR $201.75 To Order
Photo Part No Description Price (each) Stock
LR013165 TUBE - CONNECTING $31.77 To Order
Photo Part No Description Price (each) Stock
LR079608 THERMOSTAT AND HOUSING $119.22 To Order
LR085946 THERMOSTAT AND HOUSING $115.74 To Order
Photo Part No Description Price (each) Stock
LR079609 BRACKET - THERMOSTAT $108.11 To Order
Photo Part No Description Price (each) Stock
LR035627 HOSE - RADIATOR $35.68 To Order
Photo Part No Description Price (each) Stock
LR035631 HOSE - RADIATOR VENTILATION $13.24 To Order
Photo Part No Description Price (each) Stock
LR062097 HOSE - WATER $48.19 To Order
Photo Part No Description Price (each) Stock
LR018829 GASKET - THERMOSTAT $3.69 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.88 To Order
Photo Part No Description Price (each) Stock
LR026206 STRAP - CABLE $0.61 To Order
View All

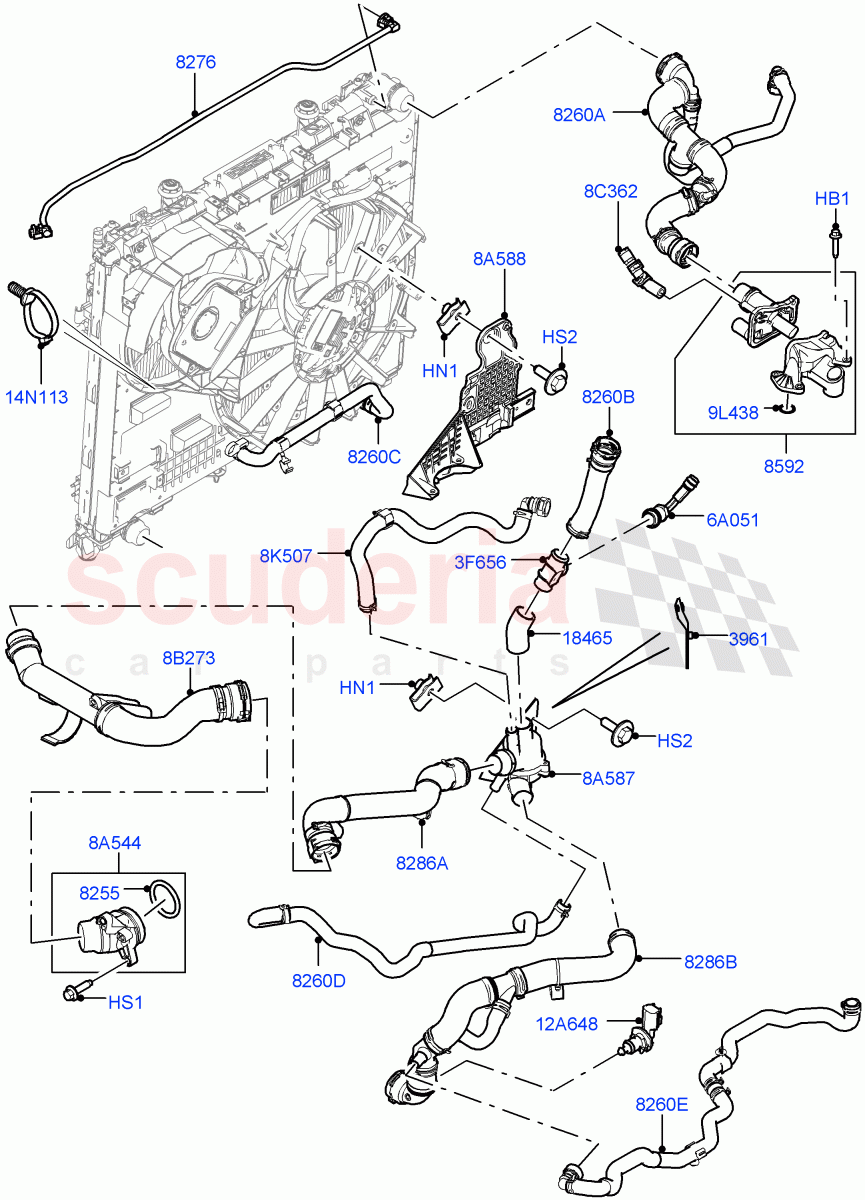

Cooling System Pipes And Hoses (Engine) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, (+) "CDN/MEX/USA", Crankcase Pressure Sensor, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMGA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4147433
BOLT
M6 X 25MM / From: GA000001 / To: HA159759
IN STOCK 		$1.64 4
HB1 LR105435
BOLT
M6 x 27MM / From: HA159760 		$1.13 4
HN1 LR000053
NUT - FLANGED
M6 / From: GA000001
IN STOCK 		$1.63 3
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: GA000001
IN STOCK 		$3.47 2
HS2 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: GA000001
IN STOCK 		$0.96 3
3F656 LR062104
T-CONNECTOR
T-Connector / From: GA000001 		$66.89 1
6A051 LR038158
HEATER - ENGINE BLOCK
From: GA000001 		$247.27 1
8A544 LR013165
TUBE - CONNECTING
Bottom / From: GA000001 		$31.77 1
8A587 LR079608
THERMOSTAT AND HOUSING
From: GA000001 / To: HA156265 		$119.22 1
8A587 LR085946
THERMOSTAT AND HOUSING
From: HA156266 		$115.74 1
8A588 LR079609
BRACKET - THERMOSTAT
From: GA000001 		$108.11 1
8B273 LR035627
HOSE - RADIATOR
Bottom, Engine Side, Thermostat To Engine / From: GA000001 		$35.68 1
8C362 LR035631
HOSE - RADIATOR VENTILATION
Cooling System Bleed / From: GA000001 		$13.24 1
8K507 LR062097
HOSE - WATER
Thermostat To Engine, Upper / From: GA000001 		$48.19 1
9L438 LR018829
GASKET - THERMOSTAT
From: GA000001 		$3.69 2
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: GA000001 		$59.88 1
14N113 LR026206
STRAP - CABLE
From: GA000001 		$0.61 1
3961 LR063041
BRACKET - HEATER MOUNTING
Heater / From: GA000001 		$41.30 1
8255 1336551
GASKET
From: GA000001 		$3.75 1
8260A LR095226
HOSE - RADIATOR
Radiator, Top / From: GA000001 / To: GA073302 		$157.59 1
8260A LR081657
HOSE - RADIATOR
Radiator, Top / From: HA000001 		$115.54 1
8260A LR095226
HOSE - RADIATOR
Radiator, Top / From: GA073303 / To: GA999999 		$157.59 1
8260B LR062083
HOSE - THERMOSTAT
Thermostat To Top Radiator Hose, Upper / From: GA000001 / To: GA545738 		$83.01 1
8260B LR078767
HOSE - THERMOSTAT
Thermostat To Top Radiator Hose, Upper / From: GA545739 		$42.94 1
8260C LR062074
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: GA000001 		$75.30 1
8260D LR078764
HOSE - WATER
Expansion Reservoir To Thermostat / From: GA000001 / To: LA877919 		$74.85 1
8260D LR139398
HOSE - WATER
Expansion Reservoir To Thermostat / From: LA877920 		$74.85 1
8260E LR062095
HOSE - WATER
From: GA000001 		$212.72 1
8276 LR077702
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: GA000001 / To: GA999999 		$31.35 1
8276 LR081659
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: HA000001 		$62.77 1
8286A LR062094
HOSE - WATER
Bottom, Thermostat Side, Thermostat To Engine / From: GA000001 		$66.02 1
8286B LR062081
HOSE - RADIATOR
Bottom, Radiator / From: GA000001 / To: GA999999 		$344.05 1
8286B LR081664
HOSE - RADIATOR
3.0 V6 D Gen2 Mono Turbo / Bottom, Radiator / From: HA000001 		$201.75 1
8592 LR073372
CONNECTION - WATER OUTLET
From: GA000001
IN STOCK 		$65.53 1
18465 LR062071
HOSE - COOLING SYSTEM
Lower, Thermostat To Top Radiator Hose / From: GA000001 		$55.09 1
