Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low Mt...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106106 BOLT $0.92 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR011038 PLUG - BLANKING $5.12 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR068879 CONNECTION - TUBE $29.24 To Order
Photo Part No Description Price (each) Stock
LR082425 BRACKET - COOLING HOSE $37.19 To Order
Photo Part No Description Price (each) Stock
LR062413 HOSE - COMPRESSED AIR $136.38 To Order
LR088290 HOSE - AIR $122.10 To Order
Photo Part No Description Price (each) Stock
LR085500 BRACKET - AIR DUCT SUPPORT $128.08 To Order
Photo Part No Description Price (each) Stock
LR036489 BRACKET - TUBE $11.07 To Order
Photo Part No Description Price (each) Stock
LR062408 HOSE - COMPRESSED AIR $82.40 To Order
LR084256 HOSE - COMPRESSED AIR $134.26 To Order
LR116344 HOSE - COMPRESSED AIR $145.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR062410 HOSE - COMPRESSED AIR $310.66 To Order
Photo Part No Description Price (each) Stock
LR067016 HOSE - COMPRESSED AIR $155.71 To Order
Photo Part No Description Price (each) Stock
LR062032 TUBE - OUTLET $281.63 To Order
LR077735 TUBE - OUTLET $178.97 To Order
LR109965 TUBE - OUTLET $302.80 To Order
View All

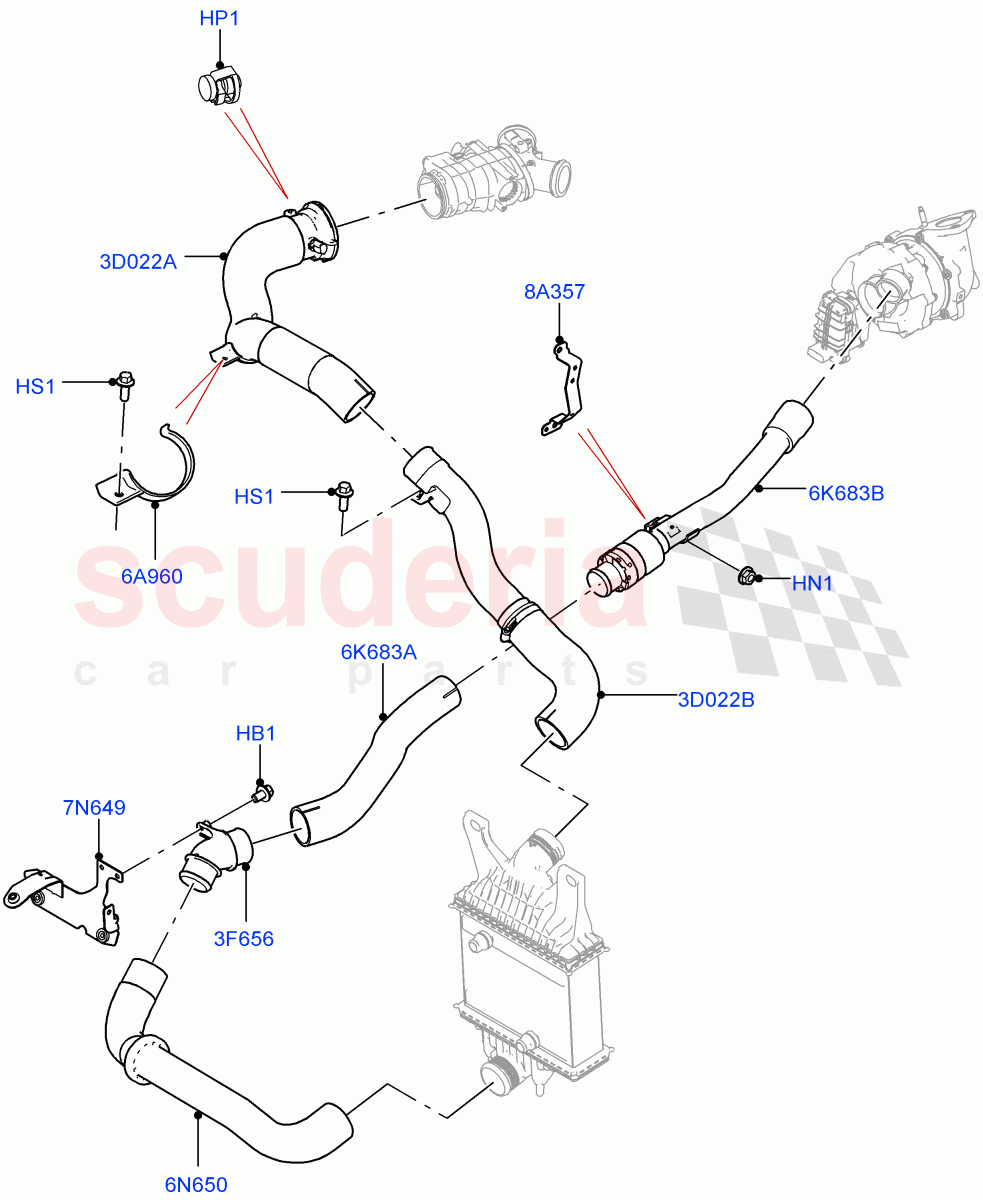

Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106106
BOLT
Hexagonal Head, M6 X 10MM / From: FA000001 		$0.92 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: FA000001
IN STOCK 		$1.46 1
HP1 LR011038
PLUG - BLANKING
Blanking, Cooling System Bleed / From: FA000001 		$5.12 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: FA000001
IN STOCK 		$1.24 2
3D022A LR062408
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: FA000001 / To: GA611826 		$82.40 1
3D022A LR084256
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: GA611827 / To: HA999999 		$134.26 1
3D022A LR116344
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: JA000001 / To: JA999999 		$145.31 1
3D022A LR117083
HOSE - COMPRESSED AIR
Intercooler To Throttle Body, With Clamps / From: KA000001 		$150.39 1
3D022B LR062410
HOSE - COMPRESSED AIR
Intercooler Outlet, With Clamps / From: FA000001 		$310.66 1
3F656 LR068879
CONNECTION - TUBE
From: FA000001 		$29.24 1
6A960 LR082425
BRACKET - COOLING HOSE
Air Intake Hose / From: FA000001 		$37.19 1
6K683A LR067016
HOSE - COMPRESSED AIR
Inlet, Shut Off Valve, With Clamps / From: FA000001 		$155.71 1
6K683B LR062032
TUBE - OUTLET
Turbocharger Outlet, With Clamps / From: FA000001 / To: FA527544 		$281.63 1
6K683B LR077735
TUBE - OUTLET
Turbocharger Outlet, With Clamps / From: FA527545 / To: HA155305 		$178.97 1
6K683B LR109965
TUBE - OUTLET
Turbocharger Outlet, With Clamps / From: HA155306 		$302.80 1
6N650 LR062413
HOSE - COMPRESSED AIR
Bottom, Intercooler Inlet, With Clamps / From: FA000001 / To: GA999999 		$136.38 1
6N650 LR088290
HOSE - AIR
Bottom, Intercooler Inlet, With Clamps / From: HA000001 		$122.10 1
7N649 LR085500
BRACKET - AIR DUCT SUPPORT
From: FA000001 		$128.08 1
8A357 LR036489
BRACKET - TUBE
Turbocharger Outlet / From: FA000001 		$11.07 1
