Cylinder Head (3.0L 24V Dohc V6 Tc Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Cylinder Head (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1102774 PLUG - ENGINE $6.55 To Order
Photo Part No Description Price (each) Stock
LR018831 SCREW $3.26 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.46 IN STOCK
Photo Part No Description Price (each) Stock
LR014249 CYLINDER HEAD $2,599.40 To Order
LR014248 CYLINDER HEAD $2,765.46 To Order
LR083672 CYLINDER HEAD $2,535.61 To Order
Photo Part No Description Price (each) Stock
LR013063 GASKET-CYLINDER HEAD $101.35 To Order
LR013066 GASKET - CYLINDER HEAD $101.35 To Order
LR013070 GASKET - CYLINDER HEAD $101.35 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1331316 BOLT - CYLINDER HEAD $4.47 To Order
Photo Part No Description Price (each) Stock
LR008130 VALVE - EXHAUST $32.47 To Order
Photo Part No Description Price (each) Stock
1311281 VALVE - INLET $21.63 To Order
Photo Part No Description Price (each) Stock
LR006720 SPRING - VALVE $7.45 To Order
Photo Part No Description Price (each) Stock
1311283 RETAINER - VALVE SPRING $3.89 To Order
Photo Part No Description Price (each) Stock
1072051 COLLET - VALVE SPRING RETAINER $7.37 To Order
Photo Part No Description Price (each) Stock
1336545 ARM - FOLLOWER $33.67 To Order
Photo Part No Description Price (each) Stock
1311285 SEAL - VALVE STEM $13.99 To Order
Photo Part No Description Price (each) Stock
1316119 SWITCH - OIL PRESSURE $28.79 To Order
Photo Part No Description Price (each) Stock
LR013458 SENSOR - CAMSHAFT POSITION $309.19 To Order
View All

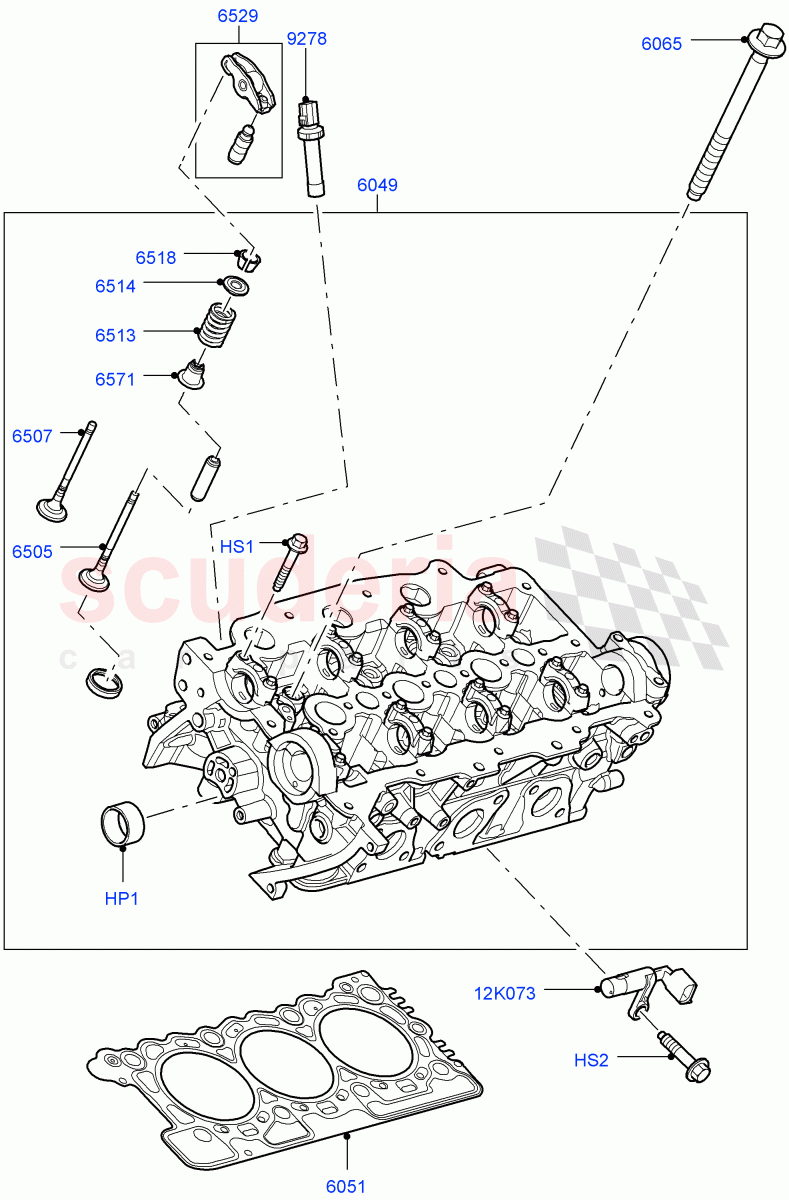

Cylinder Head (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 1102774
PLUG - ENGINE
22MM 		$6.55 4
HS1 LR018831
SCREW
M6 x 35MM
IN STOCK 		$3.26 36
HS2 RYG500220
SCREW
Camshaft Position Sensor, Hexagonal Head, M6 X 20MM
IN STOCK 		$3.46 2
12K073 LR013458
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor 		$309.19 1
6049 LR014249
CYLINDER HEAD
RH 		$2,599.40 1
6049 LR014248
CYLINDER HEAD
LH / To: GA555823 		$2,765.46 1
6049 LR083672
CYLINDER HEAD
LH / From: GA555824 		$2,535.61 1
6051 LR013063
GASKET-CYLINDER HEAD
Grade 2 		$101.35 -
6051 LR013066
GASKET - CYLINDER HEAD
Grade 3 		$101.35 -
6051 LR013070
GASKET - CYLINDER HEAD
Grade 4 		$101.35 -
6051 LR013073
GASKET-CYLINDER HEAD
Grade 5 		$101.35 -
6065 1331316
BOLT - CYLINDER HEAD
M13 X 155 		$4.47 16
6505 LR008130
VALVE - EXHAUST 		$32.47 12
6507 1311281
VALVE - INLET 		$21.63 12
6513 LR006720
SPRING - VALVE 		$7.45 24
6514 1311283
RETAINER - VALVE SPRING 		$3.89 24
6518 1072051
COLLET - VALVE SPRING RETAINER 		$7.37 48
6529 1336545
ARM - FOLLOWER 		$33.67 24
6571 1311285
SEAL - VALVE STEM 		$13.99 24
9278 1316119
SWITCH - OIL PRESSURE 		$28.79 1
