Name: Pulleys And Drive Belts (Rear, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

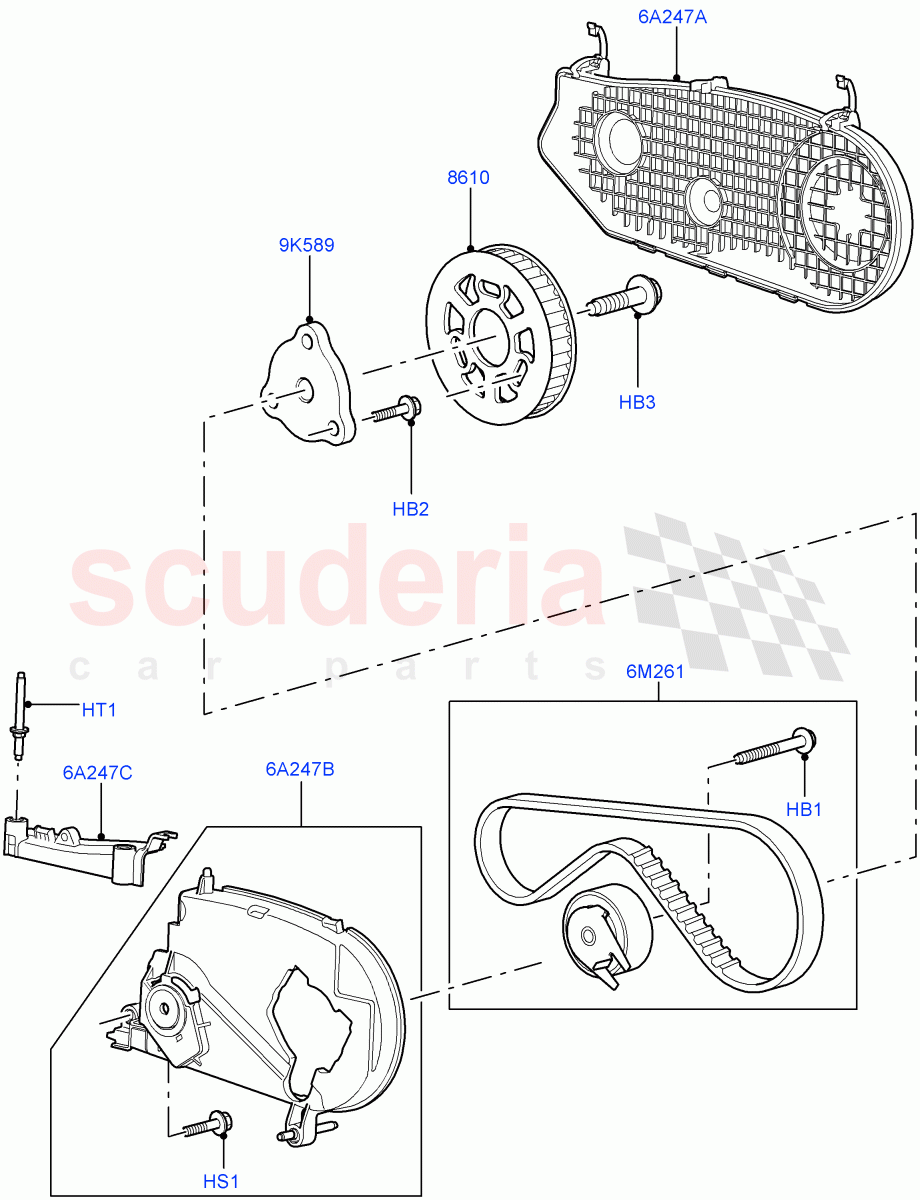

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000374	BOLT	$6.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4622661	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068165	BOLT	$12.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110747	SCREW	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014211	STUD	$3.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013590	HUB - CAMSHAFT PULLEY	$55.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014189	COVER - TIMING BELT	$109.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013443	COVER - TIMING BELT	$92.14	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000374	BOLT IN STOCK	LR000374 BOLT M8 x 60MM IN STOCK	$6.43	1
HB2	4622661	SCREW	4622661 SCREW M8 X 16MM, Pulley	$0.73	3
HB3	LR068165	BOLT	LR068165 BOLT M12 x 1.5 x 35MM	$12.76	1
HS1	LR110747	SCREW	LR110747 SCREW M6 x 35MM	$3.91	1
HT1	LR014211	STUD	LR014211 STUD M6 X 14MM, M6 X 40MM	$3.10	2
6A247A	LR014189	COVER - TIMING BELT	LR014189 COVER - TIMING BELT Outer, Rear Engine Accessory Drive	$109.21	1
6A247B	LR013444	COVER - TIMING BELT	LR013444 COVER - TIMING BELT Inner, Rear Engine Accessory Drive / To: HA159936	$113.67	1
6A247B	LR104351	COVER	LR104351 COVER Inner, Rear Engine Accessory Drive / From: HA159937	$40.29	1
6A247C	LR013443	COVER - TIMING BELT	LR013443 COVER - TIMING BELT Inner, Rear Engine Accessory Drive	$92.14	1
6M261	LR016656	KIT - INJ PUMP BELT	LR016656 KIT - INJ PUMP BELT 3.0L 24V V6 Turbo Diesel Std Flow	$220.13	1
6M261	LR069054	KIT - FUEL PUMP DRIVE BELT IN STOCK	LR069054 KIT - FUEL PUMP DRIVE BELT 3.0 V6 D Low MT ROW / From: FA000001 IN STOCK	$219.08	1
9K589	LR013590	HUB - CAMSHAFT PULLEY	LR013590 HUB - CAMSHAFT PULLEY Camshaft Pulley, Rear Engine Accessory Drive	$55.30	1
8610	LR013428	PULLEY - AUX. DRIVE	LR013428 PULLEY - AUX. DRIVE Rear Engine Accessory Drive / To: DA999999	$39.21	1
8610	LR084437	PULLEY - AUX. DRIVE	LR084437 PULLEY - AUX. DRIVE Rear Engine Accessory Drive / From: EA000001	$116.19	1

Pulleys And Drive Belts (Rear, Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]
