Name: Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac, 8 Speed Auto Trans ZF 8HP70 4WD, 8 Speed Auto Trans ZF 8HP45) ((V) TOGA999999)
Rating: 5.0 (1 reviews)

Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac, 8 Speed Auto Trans ZF 8HP70 4WD, 8 Speed Auto Trans ZF 8HP45) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	IZB500040	RING - SEALING	$18.55	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500050	RING - SEALING	$23.08	To Order

Photo	Part No	Description	Price (each)	Stock
	IYP500080	SCREW	$2.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027974	SCREW - SELF-TAPPING	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	IYF500030	WASHER	$1.04	To Order
	LR048842	WASHER - DRAIN PLUG	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072212	UNIT - GROUNDING	$69.23	To Order

Photo	Part No	Description	Price (each)	Stock
	IYB500020	PLUG - OIL DRAIN	$5.16	To Order
	LR048841	PLUG - OIL DRAIN	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	$25.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105429	KIT - TRANSFER CASE CLUTCH	$692.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043578	MODULE - TRANSFER SHIFT CONTROL	$539.29	To Order
	LR052557	MODULE - TRANSFER SHIFT CONTROL	$405.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094511	DAMPER - VIBRATION	$78.22	To Order

Photo	Part No	Description	Price (each)	Stock
	IGH500040	MOTOR - TRANSFER CASE	$741.23	To Order

Photo	Part No	Description	Price (each)	Stock
	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	$187.67	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500030	SEAL - TRANSFER BOX	$31.22	To Order

Photo	Part No	Description	Price (each)	Stock
	IAB500191	SENSOR - TRIPMINDER	$182.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086059	FLANGE - PROPSHAFT	$217.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039528	KIT - TRANSFER BOX FLANGE	$271.51	To Order

View All

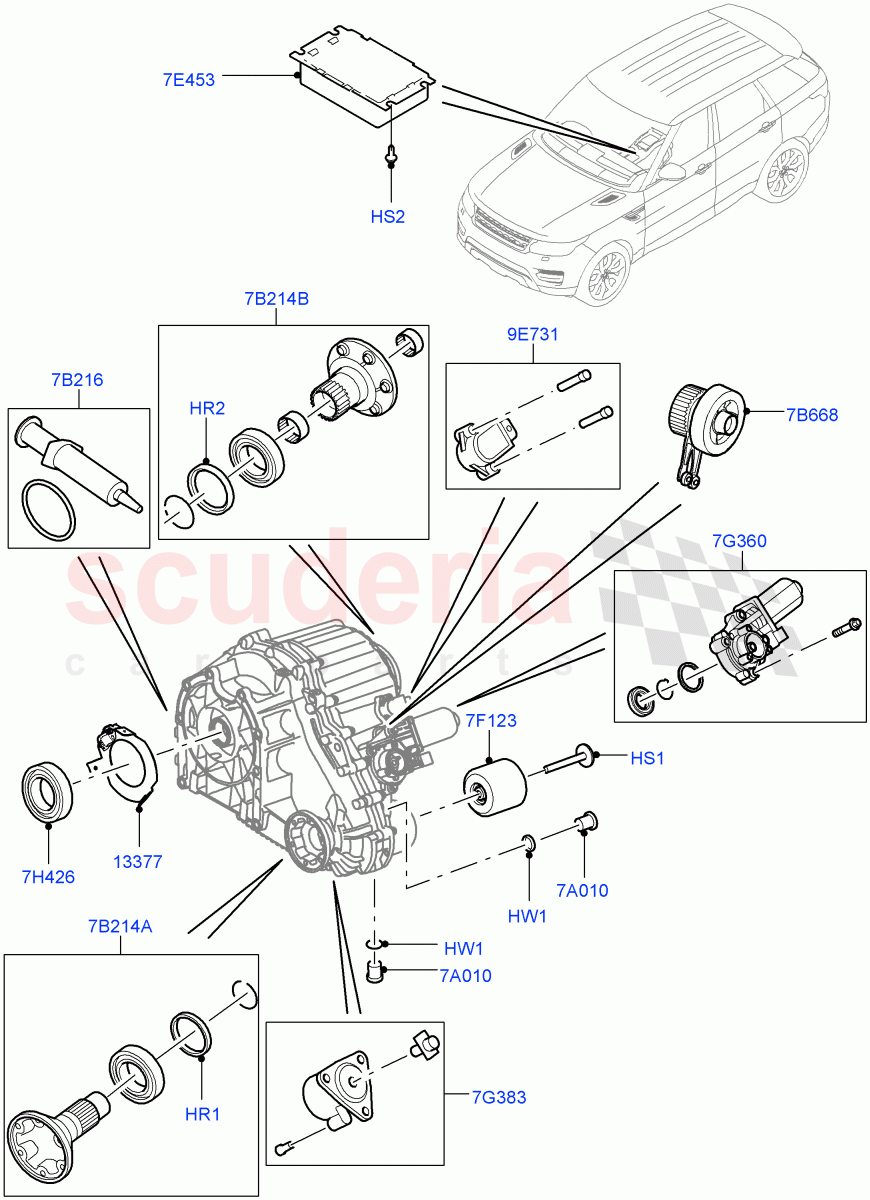

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	IZB500040	RING - SEALING	IZB500040 RING - SEALING Front Output, Seal	$18.55	1
HR2	IZB500050	RING - SEALING	IZB500050 RING - SEALING Rear Output, Seal	$23.08	1
HS1	IYP500080	SCREW	IYP500080 SCREW Bolt And Washer, HEX Flange, M10 X 80MM	$2.75	1
HS2	LR027974	SCREW - SELF-TAPPING	LR027974 SCREW - SELF-TAPPING M6X16	$1.29	4
HW1	IYF500030	WASHER	IYF500030 WASHER M16, Plug - Oil Drain	$1.04	2
HW1	LR048842	WASHER - DRAIN PLUG	LR048842 WASHER - DRAIN PLUG Filler Plug, M18, Plug - Oil Drain	$1.14	2
7A010	IYB500020	PLUG - OIL DRAIN	IYB500020 PLUG - OIL DRAIN Filler Plug, M16, Plug - Oil Drain	$5.16	2
7A010	LR048841	PLUG - OIL DRAIN	LR048841 PLUG - OIL DRAIN Filler Plug, M18, Plug - Oil Drain	$6.20	2
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft	$217.49	1
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear	$271.51	1
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING Input Shaft, Kit	$25.28	1
7B668	LR105429	KIT - TRANSFER CASE CLUTCH	LR105429 KIT - TRANSFER CASE CLUTCH From: EA308099	$692.44	1
7E453	LR043578	MODULE - TRANSFER SHIFT CONTROL	LR043578 MODULE - TRANSFER SHIFT CONTROL To: EA308098	$539.29	1
7E453	LR052557	MODULE - TRANSFER SHIFT CONTROL	LR052557 MODULE - TRANSFER SHIFT CONTROL From: EA308099	$405.49	1
7F123	LR094511	DAMPER - VIBRATION	LR094511 DAMPER - VIBRATION	$78.22	1
7G360	IGH500040	MOTOR - TRANSFER CASE	IGH500040 MOTOR - TRANSFER CASE Transfer Case Shifter	$741.23	1
7G383	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL Transfer Box	$187.67	1
7H426	IZB500030	SEAL - TRANSFER BOX	IZB500030 SEAL - TRANSFER BOX Input Shaft	$31.22	1
9E731	IAB500191	SENSOR - TRIPMINDER	IAB500191 SENSOR - TRIPMINDER High/Low Position Sensor	$182.23	1
13377	LR072212	UNIT - GROUNDING	LR072212 UNIT - GROUNDING 3.0 V6 Diesel Electric Hybrid Eng, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Clip - Grounding / From: GA000001	$69.23	1

Transfer Drive Components (8 Speed Auto Trans Zf 8Hp70 Hev 4Wd, With 2 Spd Trans Case With Ctl...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl...
