Name: Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 5.0 (1 reviews)

Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol)

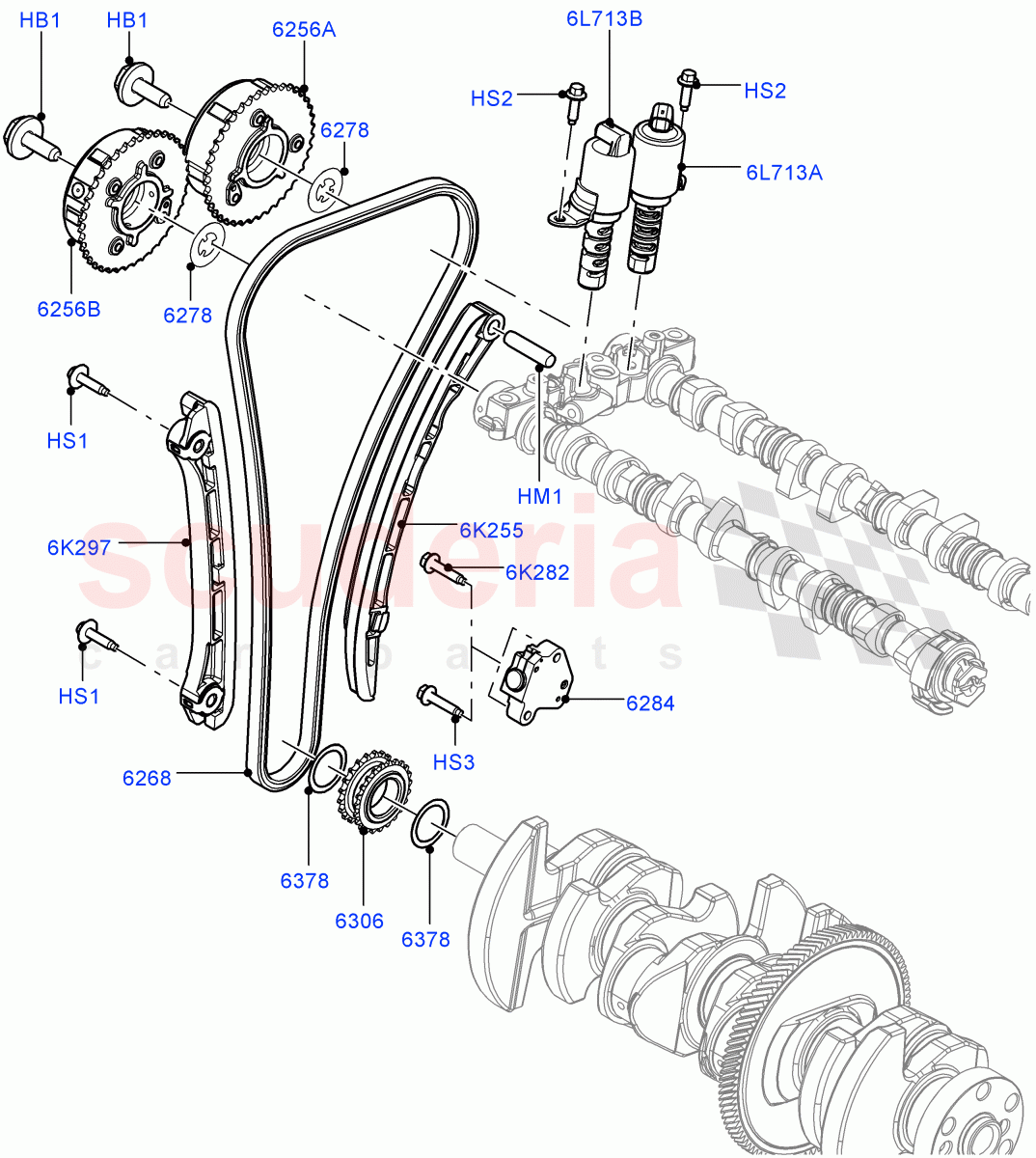

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025016	BOLT	$4.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025654	PIN	$4.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025653	BOLT	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068809	SCREW	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025263	CHAIN - TIMING	$95.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025305	WASHER - CAMSHAFT SPROCKET	$12.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066543	TENSIONER - TIMING BELT	$111.26	To Order
	LR095137	TENSIONER - TIMING BELT	$156.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025264	GEAR	$58.54	To Order
	LR079625	GEAR - CRANKSHAFT	$62.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025011	WASHER - CRANKSHAFT DAMPER	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033733	SPROCKET - CAMSHAFT	$226.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR050849	SPROCKET - CAMSHAFT	$186.43	To Order
	LR083920	SPROCKET - CAMSHAFT	$303.65	To Order
	LR095897	SPROCKET - CAMSHAFT	$227.35	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025632	ARM - TIMING CHAIN TENSIONER	$46.11	To Order
	LR111078	ARM - TIMING CHAIN TENSIONER	$53.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025008	BOLT	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025000	GUIDE - TIMING CHAIN	$28.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025652	SOLENOID - ENGINE VARIABLE TIMING	$139.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024995	SOLENOID - ENGINE VARIABLE TIMING	$139.52	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR025016	BOLT	LR025016 BOLT Sprocket - Drive	$4.93	2
HM1	LR025654	PIN	LR025654 PIN Pin, Tensioner	$4.48	1
HS1	LR025653	BOLT	LR025653 BOLT Chain Guide, M6 X 23MM	$2.72	2
HS2	LR000622	SCREW	LR000622 SCREW M6 x 12MM	$0.61	2
HS3	LR068809	SCREW	LR068809 SCREW For LR095137 Tensioner, M6 x 25MM, Tensioner / From: FA000001	$3.23	2
6K255	LR025632	ARM - TIMING CHAIN TENSIONER	LR025632 ARM - TIMING CHAIN TENSIONER To: GA119595	$46.11	1
6K255	LR111078	ARM - TIMING CHAIN TENSIONER IN STOCK	LR111078 ARM - TIMING CHAIN TENSIONER From: GA119596 IN STOCK	$53.05	1
6K282	LR025008	BOLT	LR025008 BOLT M6 X 1.0 X 30, Tensioner / To: EA999999	$2.61	2
6K297	LR025000	GUIDE - TIMING CHAIN IN STOCK	LR025000 GUIDE - TIMING CHAIN Main, Timing Chain IN STOCK	$28.69	1
6L713A	LR025652	SOLENOID - ENGINE VARIABLE TIMING	LR025652 SOLENOID - ENGINE VARIABLE TIMING Exhaust	$139.52	1
6L713B	LR024995	SOLENOID - ENGINE VARIABLE TIMING	LR024995 SOLENOID - ENGINE VARIABLE TIMING Intake	$139.52	1
6256A	LR033733	SPROCKET - CAMSHAFT IN STOCK	LR033733 SPROCKET - CAMSHAFT Exhaust IN STOCK	$226.11	1
6256B	LR050849	SPROCKET - CAMSHAFT	LR050849 SPROCKET - CAMSHAFT Intake / To: GA587102	$186.43	1
6256B	LR083920	SPROCKET - CAMSHAFT	LR083920 SPROCKET - CAMSHAFT Intake / From: GA587103 / To: HA113828	$303.65	1
6256B	LR095897	SPROCKET - CAMSHAFT IN STOCK	LR095897 SPROCKET - CAMSHAFT Intake / From: HA133860 IN STOCK	$227.35	1
6256B	LR085467	SPROCKET - CAMSHAFT	LR085467 SPROCKET - CAMSHAFT Intake / From: HA113829 / To: HA133859	$137.76	1
6268	LR025263	CHAIN - TIMING	LR025263 CHAIN - TIMING Timing Chain	$95.30	1
6278	LR025305	WASHER - CAMSHAFT SPROCKET	LR025305 WASHER - CAMSHAFT SPROCKET	$12.68	2
6284	LR066543	TENSIONER - TIMING BELT	LR066543 TENSIONER - TIMING BELT To: EA999999	$111.26	1
6284	LR095137	TENSIONER - TIMING BELT	LR095137 TENSIONER - TIMING BELT Requires LR068809 Bolts / From: FA000001	$156.39	1
6306	LR025264	GEAR	LR025264 GEAR Use With Washers 6378 / To: EA397187	$58.54	1
6306	LR079625	GEAR - CRANKSHAFT	LR079625 GEAR - CRANKSHAFT Washers 6378 Not Required / From: EA397188	$62.44	1
6378	LR025011	WASHER - CRANKSHAFT DAMPER	LR025011 WASHER - CRANKSHAFT DAMPER Crankshaft	$14.68	2

Timing Gear (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol)
