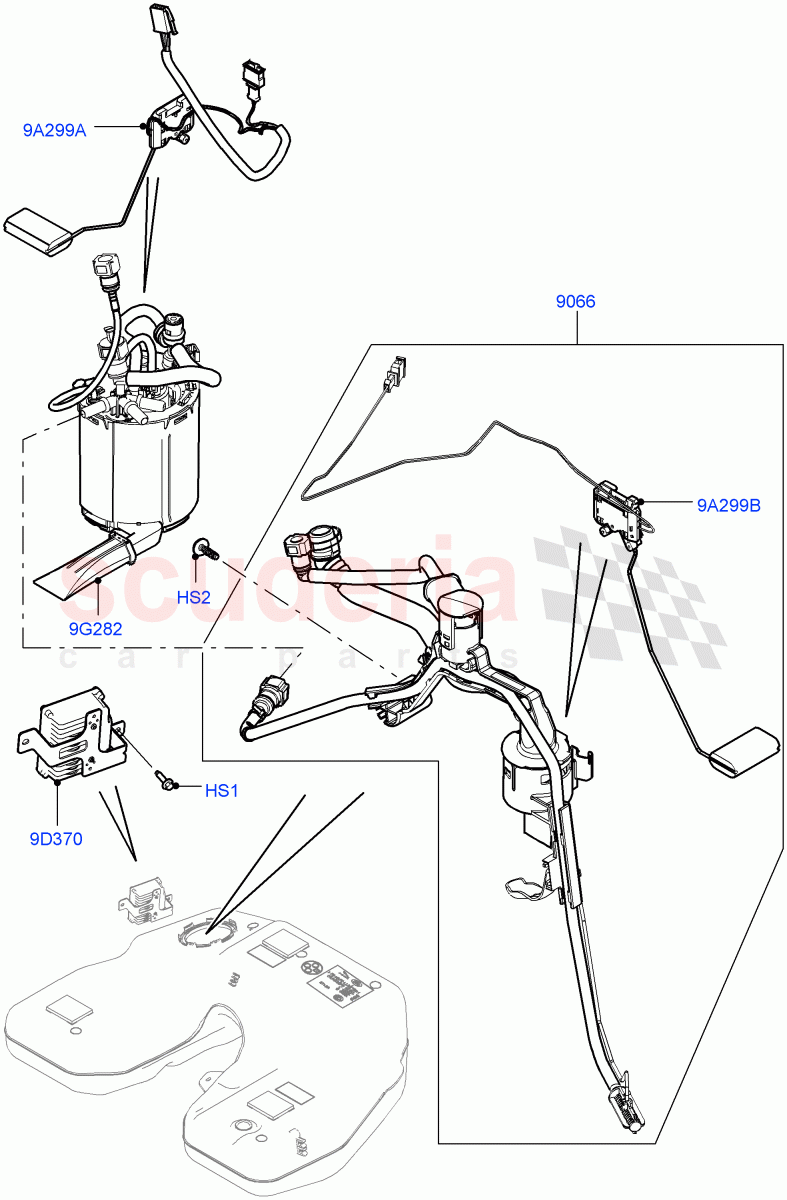

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038710	SCREW - SELF-TAPPING	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079271	SENSOR - FUEL LEVEL	$486.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039218	CONTROL - FUEL PUMP DRIVE	$337.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040878	PUMP - FUEL	$542.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050479	SENDER - FUEL TANK	$171.14	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$3.47	2
HS2	LR038710	SCREW - SELF-TAPPING	LR038710 SCREW - SELF-TAPPING M6 x 12MM	$2.68	1
9A299A	LR036701	SENDER - FUEL TANK	LR036701 SENDER - FUEL TANK To: GA571268	$195.66	1
9A299A	LR095885	SENDER - FUEL TANK	LR095885 SENDER - FUEL TANK RH / From: GA571269	$189.68	1
9A299B	LR050479	SENDER - FUEL TANK	LR050479 SENDER - FUEL TANK	$171.14	1
9D370	LR039218	CONTROL - FUEL PUMP DRIVE	LR039218 CONTROL - FUEL PUMP DRIVE	$337.75	1
9G282	LR040878	PUMP - FUEL	LR040878 PUMP - FUEL	$542.74	1
9066	LR079271	SENSOR - FUEL LEVEL	LR079271 SENSOR - FUEL LEVEL	$486.95	1
