Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Electrical Wiring - Engine And Dash (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088516 CLIP - RETAINING $2.17 To Order
Photo Part No Description Price (each) Stock
LR089197 STUD $4.00 To Order
Photo Part No Description Price (each) Stock
LR085672 WIRE - ALTERNATOR $240.03 To Order
LR107826 WIRE - ALTERNATOR $248.60 To Order
Photo Part No Description Price (each) Stock
LR086133 WIRE - GLOW PLUG $74.99 To Order
LR110286 WIRE - GLOW PLUG $78.98 To Order
Photo Part No Description Price (each) Stock
LR085666 TERMINAL - BATTERY $107.35 To Order
Photo Part No Description Price (each) Stock
LR086134 WIRING - ENGINE $1,120.26 To Order
LR098468 WIRING - ENGINE $1,047.83 To Order
LR110292 WIRE $1,631.53 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR070822 WIRING - STARTER MOTOR $76.16 To Order
Photo Part No Description Price (each) Stock
LR083964 WIRING - STARTER MOTOR $55.23 To Order
LR110287 WIRING - STARTER MOTOR $54.41 To Order
Photo Part No Description Price (each) Stock
LR083960 WIRING - STARTER MOTOR $49.61 To Order
View All

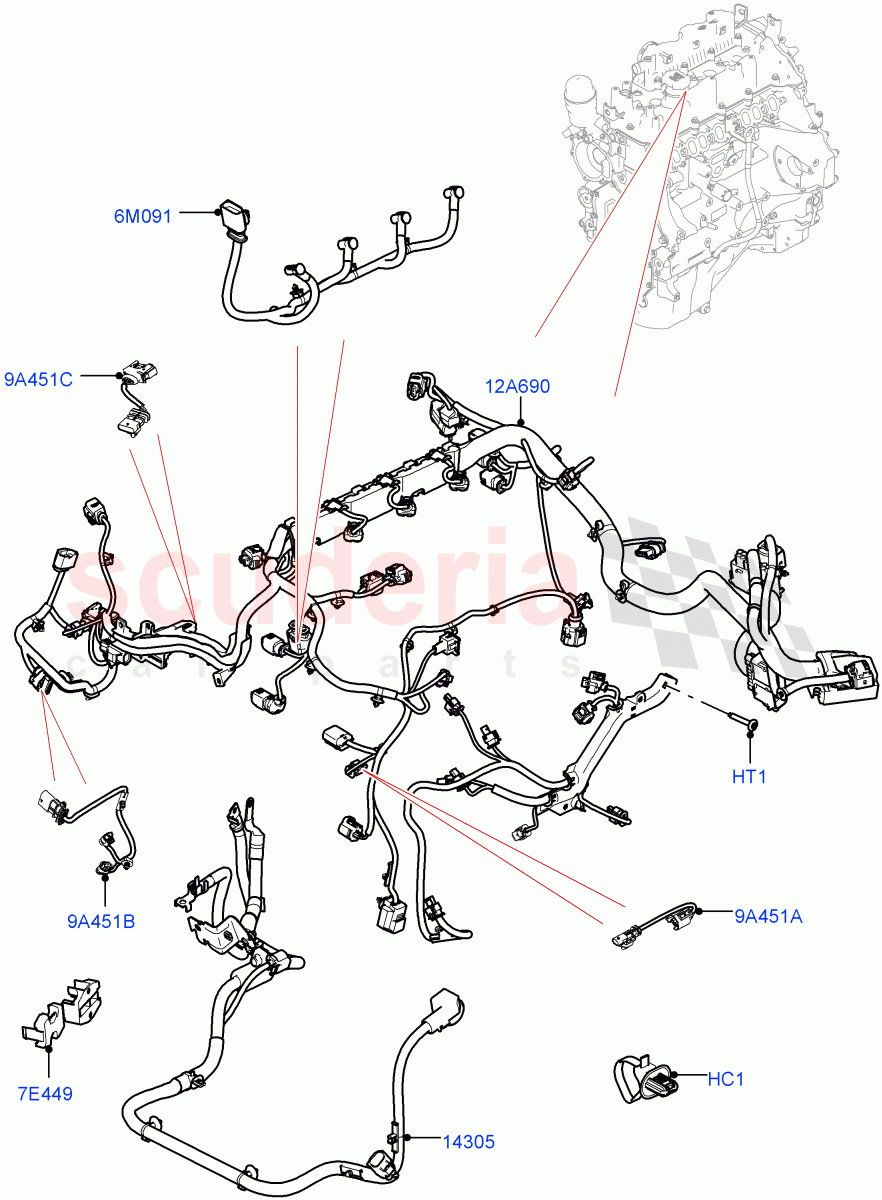

Electrical Wiring - Engine And Dash (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR088516
CLIP - RETAINING
Engine Harness / From: HA000001 		$2.17 1
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: HA000001 		$4.00 2
6M091 LR086133
WIRE - GLOW PLUG
From: HA000001 / To: JA184963 		$74.99 1
6M091 LR110286
WIRE - GLOW PLUG
From: JA184964 		$78.98 1
7E449 LR085666
TERMINAL - BATTERY
Battery Cables / From: HA000001 		$107.35 1
9A451A LR070822
WIRING - STARTER MOTOR
Alternator / From: HA000001 		$76.16 1
9A451B LR083964
WIRING - STARTER MOTOR
Coolant Temperature Sensor / From: HA000001 / To: HA173454 		$55.23 1
9A451B LR110287
WIRING - STARTER MOTOR
Coolant Temperature Sensor / From: HA173455 		$54.41 1
9A451C LR083960
WIRING - STARTER MOTOR
Service Repair Link - Turbocharger / From: HA000001 		$49.61 1
12A690 LR086134
WIRING - ENGINE
Engine / From: HA000001 / To: HA137208 		$1,120.26 1
12A690 LR098468
WIRING - ENGINE
Engine / From: HA137209 / To: HA165991 		$1,047.83 1
12A690 LR110292
WIRE
Engine, For Engine Serial Number Earlier Than ESN 180206W0745204DTD / From: HA165992 / To: JA999999 		$1,631.53 1
12A690 LR112880
WIRING - ENGINE
Engine, For Engine Serial Number Later Than ESN 180206W0745204DTD / From: HA165992 / To: JA801454 		$1,032.32 1
12A690 LR118836
WIRING - ENGINE
Engine / From: KA000001 / To: KA830428 		$889.28 1
12A690 LR123813
WIRING - ENGINE
Engine / From: KA830429 		$813.80 1
12A690 LR128719
WIRING - ENGINE
Engine, For Engine Serial Number Later Than ESN 180206W0745204DTD / From: JA801455 / To: JA999999 		$1,682.82 1
14305 LR085672
WIRE - ALTERNATOR
Alternator, Starter / From: HA000001 / To: HA172158 		$240.03 1
14305 LR107826
WIRE - ALTERNATOR
Alternator, Starter / From: HA172159 		$248.60 1
