Front Door Glass & Window Controls

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Front Door Glass & Window Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.91 IN STOCK
Photo Part No Description Price (each) Stock
LR028083 CLIP - CABLE $0.73 To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.46 IN STOCK
Photo Part No Description Price (each) Stock
LR018267 SCREW $1.19 To Order
Photo Part No Description Price (each) Stock
LR033645 SCREW $1.56 IN STOCK
LR042471 SCREW $1.73 To Order
Photo Part No Description Price (each) Stock
RYP500350 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
LR043944 GLASS - DOOR DROP $308.39 To Order
LR043946 GLASS - DOOR DROP $284.75 To Order
LR043947 GLASS - DOOR DROP $308.39 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR043854 RUN - DOOR GLASS $114.59 To Order
LR043855 RUN - DOOR GLASS $171.87 To Order
LR056335 RUN - DOOR GLASS $240.39 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR045817 PANEL - DOOR TRIM $129.45 To Order
LR045816 PANEL - DOOR TRIM $129.45 To Order
LR110433 PANEL - DOOR TRIM $129.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR084524 PAD $15.87 To Order
Photo Part No Description Price (each) Stock
LR043934 REGULATOR - WINDOW $402.10 To Order
LR043935 REGULATOR - WINDOW $405.93 To Order
LR057338 REGULATOR AND MOTOR - WINDOW $479.28 To Order
...and 5 more part variants. See table on right for more details.
View All

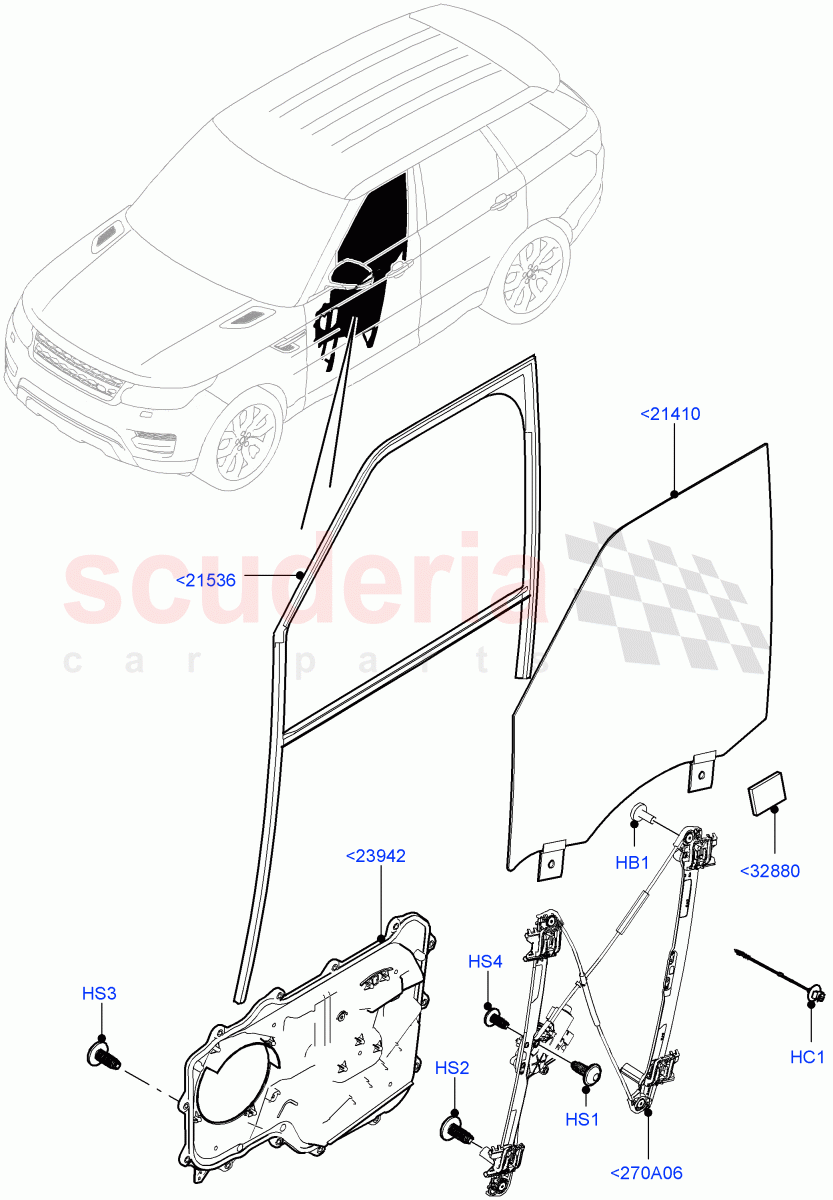

Front Door Glass & Window Controls of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<270A06 LR043934
REGULATOR - WINDOW
RH, Contains Motor Assy / To: EA331883 		$402.10 1
<270A06 LR043935
REGULATOR - WINDOW
LH, Contains Motor Assy / To: EA331883 		$405.93 1
<270A06 LR057338
REGULATOR AND MOTOR - WINDOW
RH, Contains Motor Assy / From: EA331884 / To: FA539166 		$479.28 1
<270A06 LR057339
REGULATOR AND MOTOR - WINDOW
LH, Contains Motor Assy / From: EA331884 / To: FA539166 		$479.28 1
<270A06 LR077816
REGULATOR AND MOTOR - WINDOW
LH, Contains Motor Assy / From: FA539167 / To: MA786827 		$417.56 1
<270A06 LR077817
REGULATOR AND MOTOR - WINDOW
RH, Contains Motor Assy / From: FA539167 / To: MA786827 		$454.29 1
<270A06 LR153951
REGULATOR AND MOTOR - WINDOW
RH, Contains Motor Assy / From: MA786828 		$479.28 1
<270A06 LR153952
REGULATOR AND MOTOR - WINDOW
LH, Contains Motor Assy / From: MA786828 		$479.28 1
<21410 LR043944
GLASS - DOOR DROP
Infra Red Front/Privacy Rear Glass / RH / To: HA999999 		$308.39 1
<21410 LR043946
GLASS - DOOR DROP
Green Tinted Glass All Round / RH / To: HA999999 		$284.75 1
<21410 LR043947
GLASS - DOOR DROP
Infra Red Front/Privacy Rear Glass / LH / To: HA999999 		$308.39 1
<21410 LR043949
GLASS - DOOR DROP
Green Tinted Glass All Round / LH / To: HA999999 		$284.75 1
<21410 LR043946
GLASS - DOOR DROP
Frt/Rr Toughened Glass / RH / From: JA000001 / To: JA999999 		$284.75 1
<21410 LR043949
GLASS - DOOR DROP
Frt/Rr Toughened Glass / LH / From: JA000001 / To: JA999999 		$284.75 1
<21410 LR100155
GLASS - DOOR DROP
Frt Ira Lam Acs/Rr Tough w/Prv Glas / LH / From: JA000001 		$298.01 1
<21410 LR100156
GLASS - DOOR DROP
Frt Infra Lam Acst/Rr Tghnd Glass / RH / From: JA000001 / To: JA999999 		$280.98 1
<21410 LR100156
GLASS - DOOR DROP
Frt Ira Lam Acs/Rr Tough w/Prv Glas / RH / From: JA000001 		$280.98 1
<21410 LR100155
GLASS - DOOR DROP
Frt Infra Lam Acst/Rr Tghnd Glass / LH / From: JA000001 / To: JA999999 		$298.01 1
<21410 LR043947
GLASS - DOOR DROP
Frt Lam Acoustic/Rr Toughened Glass / LH / From: JA000001 		$308.39 1
<21410 LR043944
GLASS - DOOR DROP
Frt Laminated/Rr Tough With Priv Gl / RH / From: JA000001 		$308.39 1
<21410 LR118392
GLASS - DOOR DROP
Frt/Rr Toughened Glass / RH / From: KA000001 		$267.56 1
<21410 LR118393
GLASS - DOOR DROP
Frt Infra Lam Acst/Rr Tghnd Glass / RH / From: KA000001 		$334.44 1
<21410 LR118394
GLASS - DOOR DROP
Frt/Rr Toughened Glass / LH / From: KA000001 		$267.56 1
<21410 LR118395
GLASS - DOOR DROP
Frt Infra Lam Acst/Rr Tghnd Glass / LH / From: KA000001 		$334.44 1
<21536 LR043854
RUN - DOOR GLASS
RH / To: EA315860 		$114.59 1
<21536 LR043855
RUN - DOOR GLASS
LH / To: EA315860 		$171.87 1
<21536 LR056335
RUN - DOOR GLASS
RH / From: EA315861 / To: GA549732 		$240.39 1
<21536 LR056336
RUN - DOOR GLASS
LH / From: EA315861 / To: GA549732 		$240.39 1
<21536 LR080133
RUN - DOOR GLASS
RH / From: GA549733 / To: GA569711 		$105.64 1
<21536 LR080135
RUN - DOOR GLASS
LH / From: GA549733 / To: GA569711 		$105.64 1
<21536 LR084156
RUN - DOOR GLASS
RH / From: GA569712 		$352.27 1
<21536 LR084157
RUN - DOOR GLASS
LH / From: GA569712 		$352.27 1
<23942 LR045817
PANEL - DOOR TRIM
LH / To: HA180008 		$129.45 1
<23942 LR045816
PANEL - DOOR TRIM
RH / To: HA180008 		$129.45 1
<23942 LR110433
PANEL - DOOR TRIM
RH / From: HA180009 		$129.45 1
<23942 LR110434
PANEL - DOOR TRIM
LH / From: HA180009 		$129.45 1
<32880 LR084524
PAD
Felt Pad - Please Refer To Technical Bulletin LTB00880 For Fitting Details / From: GA577000 		$15.87 1
HB1 XYG500160
BOLT
M6 x 12MM, Torx, Window Regulator
IN STOCK 		$0.91 2
HC1 LR028083
CLIP - CABLE
Cable Tie, Clip 6 X 6.5 X 1.9 - 2.1 		$0.73 1
HS1 VYP500060
SCREW
4.8 X 16MM, Motor - Window, Torx
IN STOCK 		$0.46 2
HS2 LR018267
SCREW
M6 X 20MM, Torx / To: FA539166 		$1.19 2
HS3 LR033645
SCREW
Door Trim Panel, M6 X 16MM, Torx
IN STOCK 		$1.56 13
HS3 LR042471
SCREW
Can Be Used If The Current Fixing Is Stripped, M8 X 20MM 		$1.73 1
HS4 RYP500350
SCREW
4.8 X 19MM, Motor - Window, Torx 		$0.83 1
