Fuel Tank & Related Parts (2.0L I4 High Dohc Aj200 Petrol) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD $2.40 IN STOCK
Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.89 IN STOCK
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.49 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR110438 SCREW AND WASHER $0.92 To Order
Photo Part No Description Price (each) Stock
LR086524 TANK - FUEL $1,366.21 To Order
Photo Part No Description Price (each) Stock
202123475 CAP - FUEL TANK FILLER $40.76 To Order
LR053665 CAP - FUEL TANK FILLER $34.88 To Order
LR138720 CAP - FUEL TANK FILLER $39.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051671 PIPE - FUEL FILLER $225.14 To Order
LR095804 PIPE - FUEL FILLER $338.53 To Order
Photo Part No Description Price (each) Stock
LR051676 HOSE - FILLER PIPE $225.14 To Order
LR051675 HOSE - FILLER PIPE $225.14 To Order
Photo Part No Description Price (each) Stock
LR053462 TUBE - FUEL VAPOUR $70.89 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.38 To Order
Photo Part No Description Price (each) Stock
LR054812 SHIELD - FUEL TANK $675.87 To Order
Photo Part No Description Price (each) Stock
LR086522 TUBE - FUEL $286.46 To Order
View All

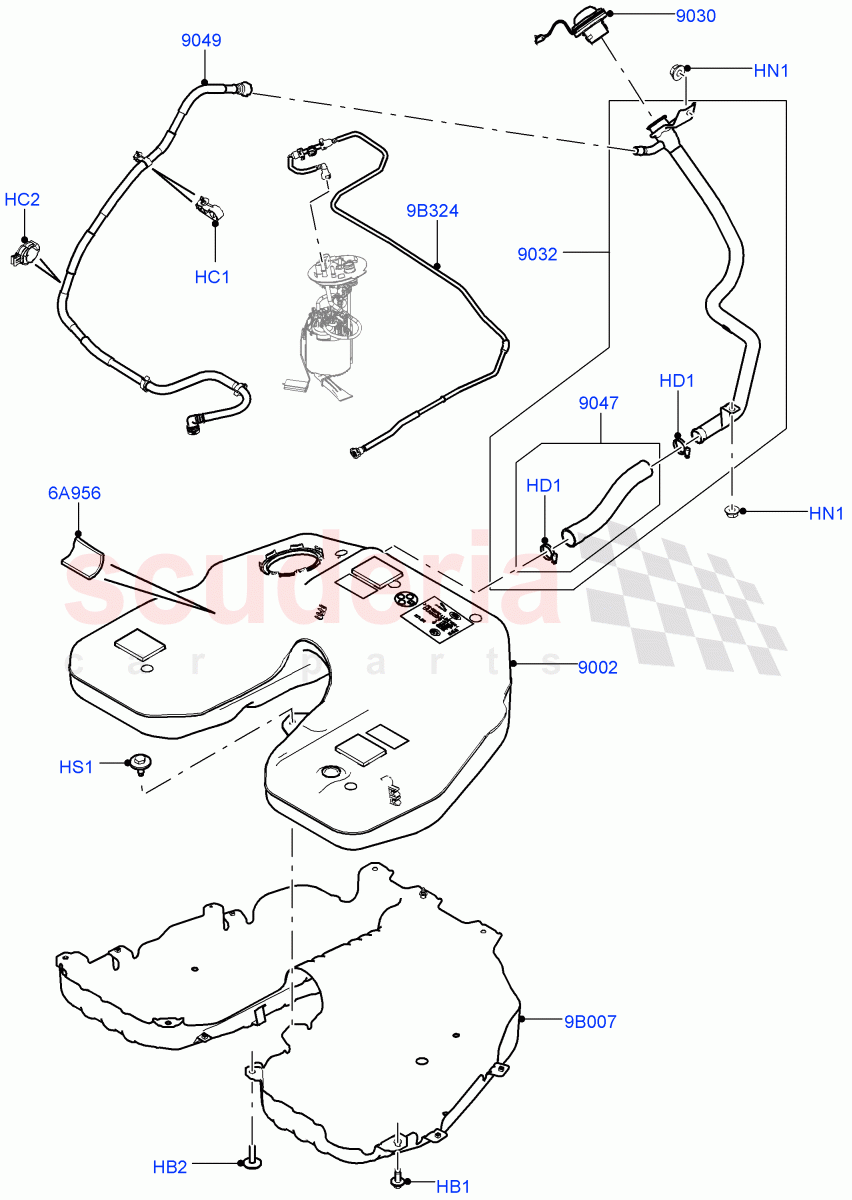

Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR037935
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 X 25MM / From: JA000001
IN STOCK 		$2.40 3
HB2 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM / From: JA000001
IN STOCK 		$2.89 4
HC1 LR094032
CLIP - HOSE
For Unleaded Fuel, Narrow Filler Neck - Unleaded / Plastic / From: JA000001 		$4.41 2
HC2 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic / From: JA000001 		$2.49 1
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: JA000001 		$6.12 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: JA000001
IN STOCK 		$1.47 2
HS1 LR110438
SCREW AND WASHER
2.0L I4 DSL HIGH DOHC AJ200 / Shield / From: JA000001 		$0.92 2
6A956 LR025789
FOAM PAD - ENERGY ABSORBING
100mm x 80mm x 10mm / From: JA000001 		$23.38 3
9B007 LR054812
SHIELD - FUEL TANK
Protective / From: JA000001 		$675.87 1
9B324 LR086522
TUBE - FUEL
Feed, Includes Fuel Pressure Sensor / From: JA000001 		$286.46 1
9002 LR086524
TANK - FUEL
From: JA000001 		$1,366.21 1
9030 202123475
CAP - FUEL TANK FILLER
For Unleaded Fuel, Narrow Filler Neck - Unleaded / From: JA000001 / To: MA755911 		$40.76 1
9030 LR053665
CAP - FUEL TANK FILLER
For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: JA000001 / To: MA758030 		$34.88 1
9030 LR138720
CAP - FUEL TANK FILLER
For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: MA755912 		$39.31 1
9030 LR138718
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: MA758031 		$39.31 1
9032 LR051671
PIPE - FUEL FILLER
For Unleaded Fuel, Fuel Tank Filler Neck - Unleaded / From: JA000001 		$225.14 1
9032 LR095804
PIPE - FUEL FILLER
For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: JA000001 		$338.53 1
9047 LR051676
HOSE - FILLER PIPE
For Unleaded Fuel, Fuel Tank Filler Neck - Unleaded / From: JA000001 		$225.14 1
9047 LR051675
HOSE - FILLER PIPE
For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: JA000001 		$225.14 1
9049 LR053462
TUBE - FUEL VAPOUR
For Unleaded Fuel, Fuel Tank Filler Neck - Unleaded / From: JA000001 		$70.89 1
