Rear Exhaust System (2.0L I4 High Dohc Aj200 Petrol) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Rear Exhaust System (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR112283 DAMPER - DAMPING MASS $86.38 To Order
Photo Part No Description Price (each) Stock
LR105219 RESONATOR - EXHAUST SYSTEM $1,198.98 To Order
LR120477 RESONATOR - EXHAUST SYSTEM $1,253.48 To Order
Photo Part No Description Price (each) Stock
LR036441 CLAMP - EXHAUST $31.02 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $80.10 To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $24.16 To Order
Photo Part No Description Price (each) Stock
LR093418 INSULATOR - RUBBER $36.58 To Order
Photo Part No Description Price (each) Stock
LR105231 MUFFLER - REAR $841.12 To Order
Photo Part No Description Price (each) Stock
LR105236 MUFFLER - REAR $841.12 To Order
Photo Part No Description Price (each) Stock
LR110248 BRACKET - REAR MUFFLER $47.43 To Order
Photo Part No Description Price (each) Stock
LR110250 BRACKET - REAR MUFFLER $32.06 To Order
Photo Part No Description Price (each) Stock
LR110249 BRACKET - REAR MUFFLER $31.04 To Order
Photo Part No Description Price (each) Stock
LR063757 BRACKET - EXHAUST PIPE MOUNTING $33.64 To Order
Photo Part No Description Price (each) Stock
LR063756 BRACKET - EXHAUST PIPE MOUNTING $66.62 To Order
View All

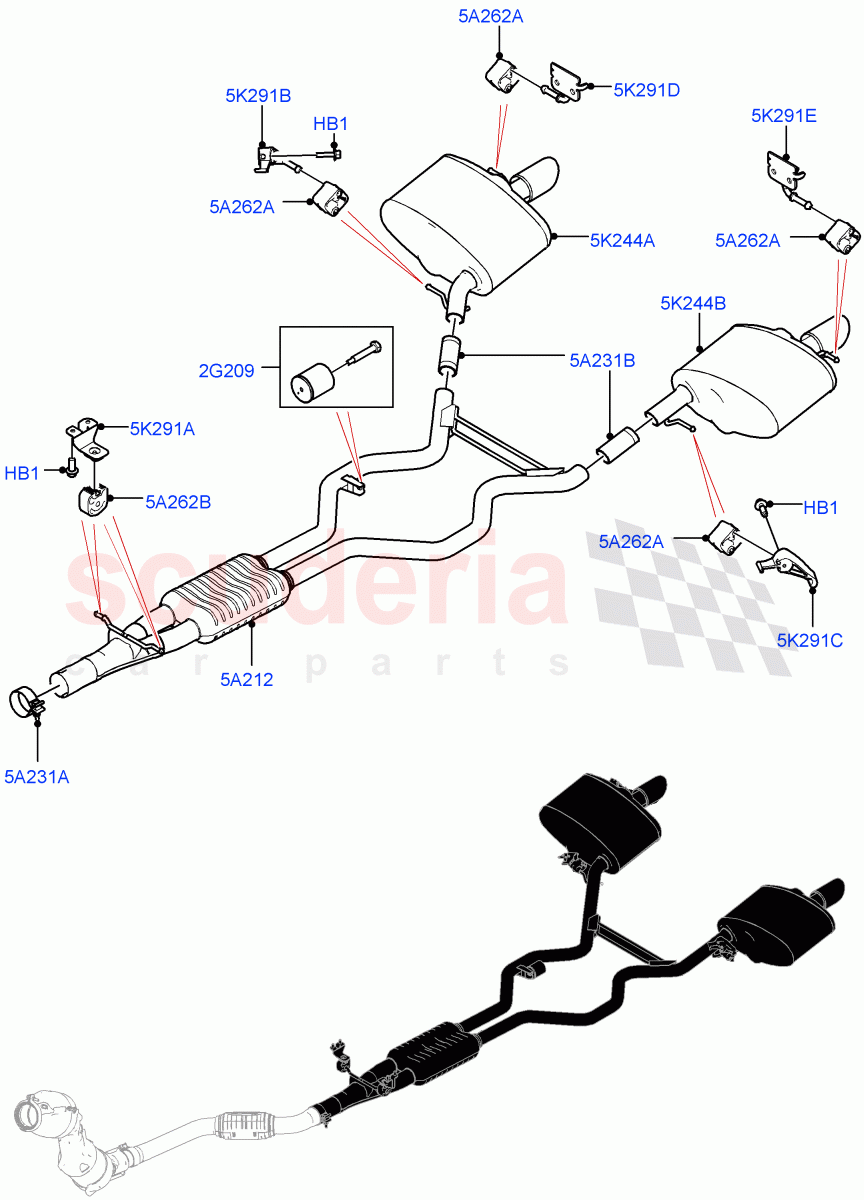

Rear Exhaust System (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: JA000001
IN STOCK 		$2.29 6
2G209 LR112283
DAMPER - DAMPING MASS
From: JA000001 		$86.38 1
5A212 LR105219
RESONATOR - EXHAUST SYSTEM
From: JA000001 / To: KA817907 		$1,198.98 1
5A212 LR120477
RESONATOR - EXHAUST SYSTEM
From: KA817908 		$1,253.48 1
5A231A LR036441
CLAMP - EXHAUST
70MM, Front / From: JA000001 		$31.02 1
5A231B WCL500020
CLAMP - EXHAUST
50MM, Rear / From: JA000001 		$80.10 2
5A262A LR090360
INSULATOR - RUBBER
For Rear Muffler / From: JA000001 		$24.16 4
5A262B LR093418
INSULATOR - RUBBER
Front / From: JA000001 		$36.58 2
5K244A LR105231
MUFFLER - REAR
RH / From: JA000001 		$841.12 1
5K244B LR105236
MUFFLER - REAR
LH / From: JA000001 		$841.12 1
5K291A LR110248
BRACKET - REAR MUFFLER
Front, RH And LH / From: JA000001 		$47.43 2
5K291B LR110250
BRACKET - REAR MUFFLER
LH, For Rear Muffler, Front / From: JA000001 		$32.06 1
5K291C LR110249
BRACKET - REAR MUFFLER
RH, For Rear Muffler, Front / From: JA000001 		$31.04 1
5K291D LR063757
BRACKET - EXHAUST PIPE MOUNTING
LH, For Rear Muffler, Rear / From: JA000001 		$33.64 1
5K291E LR063756
BRACKET - EXHAUST PIPE MOUNTING
RH, For Rear Muffler, Rear / From: JA000001 		$66.62 1
