Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Intercooler/Air Ducts And Hoses (Solihull Plant Build, Air Ducts And Hoses) (2.0L AJ200P Hi PHEV,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.51 To Order
Photo Part No Description Price (each) Stock
LR092412 TUBE - OUTLET $124.68 To Order
LR101002 HOSE - COMPRESSED AIR $120.11 To Order
Photo Part No Description Price (each) Stock
LR101005 HOSE - COMPRESSED AIR $89.48 To Order
LR100459 HOSE - AIR $54.62 To Order
LR138625 HOSE - AIR $63.25 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR100460 HOSE - COMPRESSED AIR $178.23 To Order
LR101007 HOSE - COMPRESSED AIR $180.43 To Order
Photo Part No Description Price (each) Stock
LR093490 ACTUATOR - SUPERCHARGER BYPASS $281.79 To Order
View All

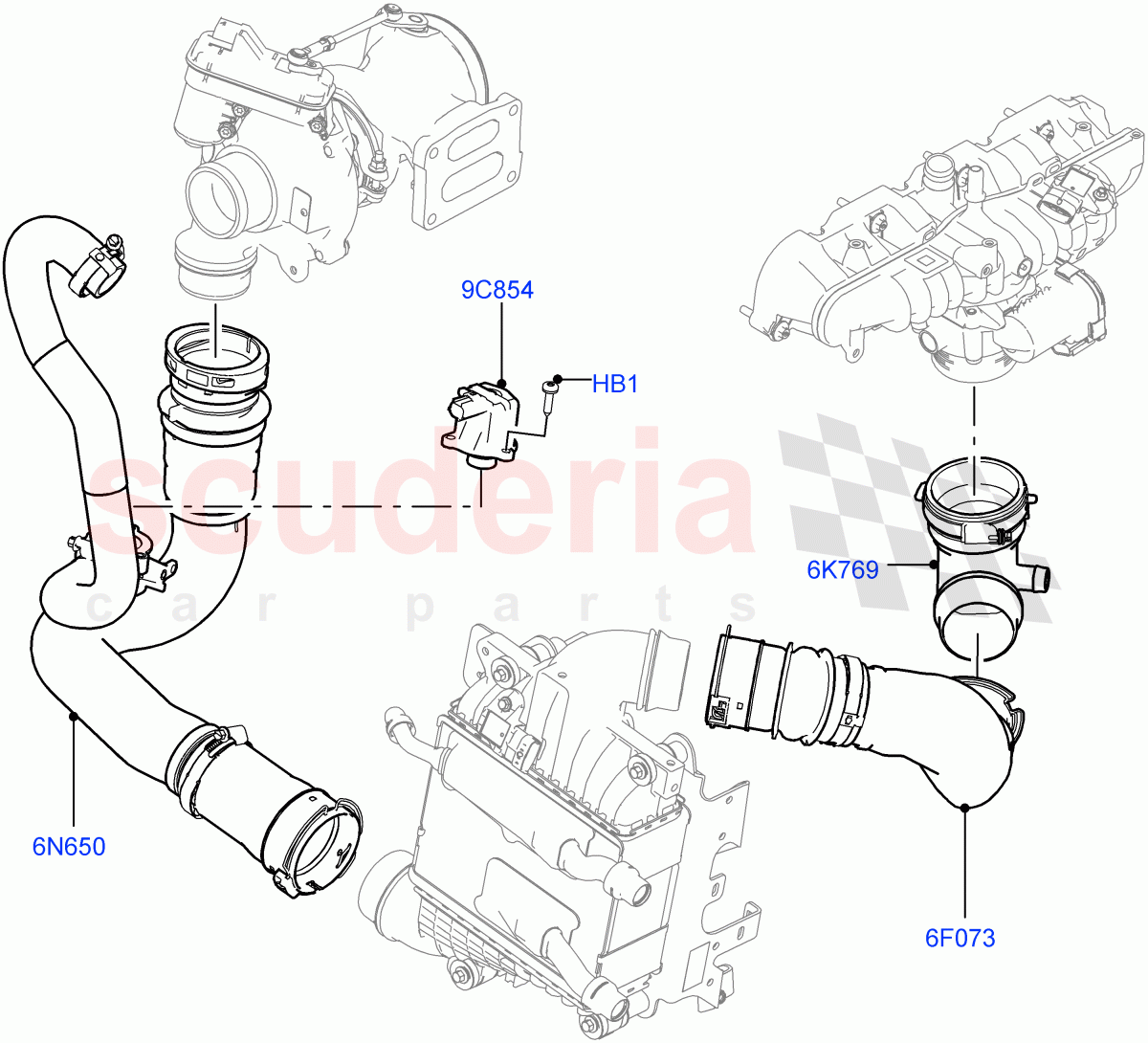

Intercooler/Air Ducts And Hoses (Solihull Plant Build, Air Ducts And Hoses) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001, (V) TOLA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033002
BOLT AND WASHER - TORX HEAD
M6 X 20.5, Torx / From: JA000001 		$1.51 3
6F073 LR092412
TUBE - OUTLET
2.0L I4 High DOHC AJ200 Petrol / From: JA000001 		$124.68 1
6F073 LR101002
HOSE - COMPRESSED AIR
2.0L AJ200P Hi PHEV / From: JA000001 		$120.11 1
6K769 LR101005
HOSE - COMPRESSED AIR
2.0L AJ200P Hi PHEV / From: JA000001 / To: LA728054 		$89.48 1
6K769 LR100459
HOSE - AIR
2.0L I4 High DOHC AJ200 Petrol / From: JA000001 / To: LA724820 		$54.62 1
6K769 LR138625
HOSE - AIR
2.0L I4 High DOHC AJ200 Petrol / From: LA724821 		$63.25 1
6K769 LR138626
HOSE - COMPRESSED AIR
2.0L AJ200P Hi PHEV / From: LA728055 		$87.54 1
6N650 LR100460
HOSE - COMPRESSED AIR
2.0L I4 High DOHC AJ200 Petrol / From: JA000001 		$178.23 1
6N650 LR101007
HOSE - COMPRESSED AIR
2.0L AJ200P Hi PHEV / From: JA000001 		$180.43 1
9C854 LR093490
ACTUATOR - SUPERCHARGER BYPASS
From: JA000001 		$281.79 1
