Cylinder Head (Solihull Plant Build) (2.0L I4 High Dohc Aj200 Petrol, 2.0L Aj200P Hi Phev, 2.0L I4...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Cylinder Head (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR170798 PLUG - ENGINE $4.34 To Order
Photo Part No Description Price (each) Stock
LR170956 Plug $0.79 To Order
Photo Part No Description Price (each) Stock
LR123819 O-RING $3.33 To Order
Photo Part No Description Price (each) Stock
LR073689 SCREW $2.36 To Order
Photo Part No Description Price (each) Stock
LR073738 SCREW $3.88 IN STOCK
Photo Part No Description Price (each) Stock
LR091530 CYLINDER HEAD $3,474.89 To Order
LR117019 CYLINDER HEAD $2,745.00 To Order
Photo Part No Description Price (each) Stock
LR091486 GASKET-CYLINDER HEAD $86.21 To Order
Photo Part No Description Price (each) Stock
LR091487 BOLT - HEX.HEAD $12.03 To Order
Photo Part No Description Price (each) Stock
LR091743 TENSIONER - TIMING BELT $124.41 To Order
Photo Part No Description Price (each) Stock
LR073777 TAPPET - VALVE $51.02 To Order
Photo Part No Description Price (each) Stock
LR091763 VALVE - EXHAUST $23.53 To Order
LR134473 VALVE - EXHAUST $27.93 To Order
Photo Part No Description Price (each) Stock
LR124745 VALVE - INLET $27.85 To Order
LR124745 VALVE - INLET $27.85 To Order
Photo Part No Description Price (each) Stock
LR091753 RETAINER - VALVE SPRING - UPPER $17.07 To Order
Photo Part No Description Price (each) Stock
LR073774 COLLET - VALVE SPRING RETAINER $3.33 To Order
Photo Part No Description Price (each) Stock
LR091754 ARM - VALVE ROCKER $46.25 To Order
LR091754 ARM - VALVE ROCKER $46.25 To Order
LR091754 ARM - VALVE ROCKER $46.25 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091757 SEAL - VALVE STEM $5.92 To Order
LR116489 SEAL - VALVE STEM $7.99 IN STOCK
Photo Part No Description Price (each) Stock
LR171244 TUBE - WATER OUTLET $49.11 To Order
LR122821 TUBE - WATER OUTLET $48.70 To Order
LR122821 TUBE - WATER OUTLET $48.70 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091751 SPRING - VALVE $13.56 To Order
Photo Part No Description Price (each) Stock
LR091752 SPRING - VALVE $12.92 To Order
LR117018 SPRING - VALVE $41.77 To Order
Photo Part No Description Price (each) Stock
LR077674 VALVE - CHECK $9.66 To Order
Photo Part No Description Price (each) Stock
LR073651 DOWEL - PIN $3.84 To Order
Photo Part No Description Price (each) Stock
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $63.31 To Order
LR115083 SENSOR - CYLINDER HEAD TEMPERATURE $49.97 To Order
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $63.31 To Order
Photo Part No Description Price (each) Stock
LR073685 TUBE - DRAIN $24.81 To Order
View All

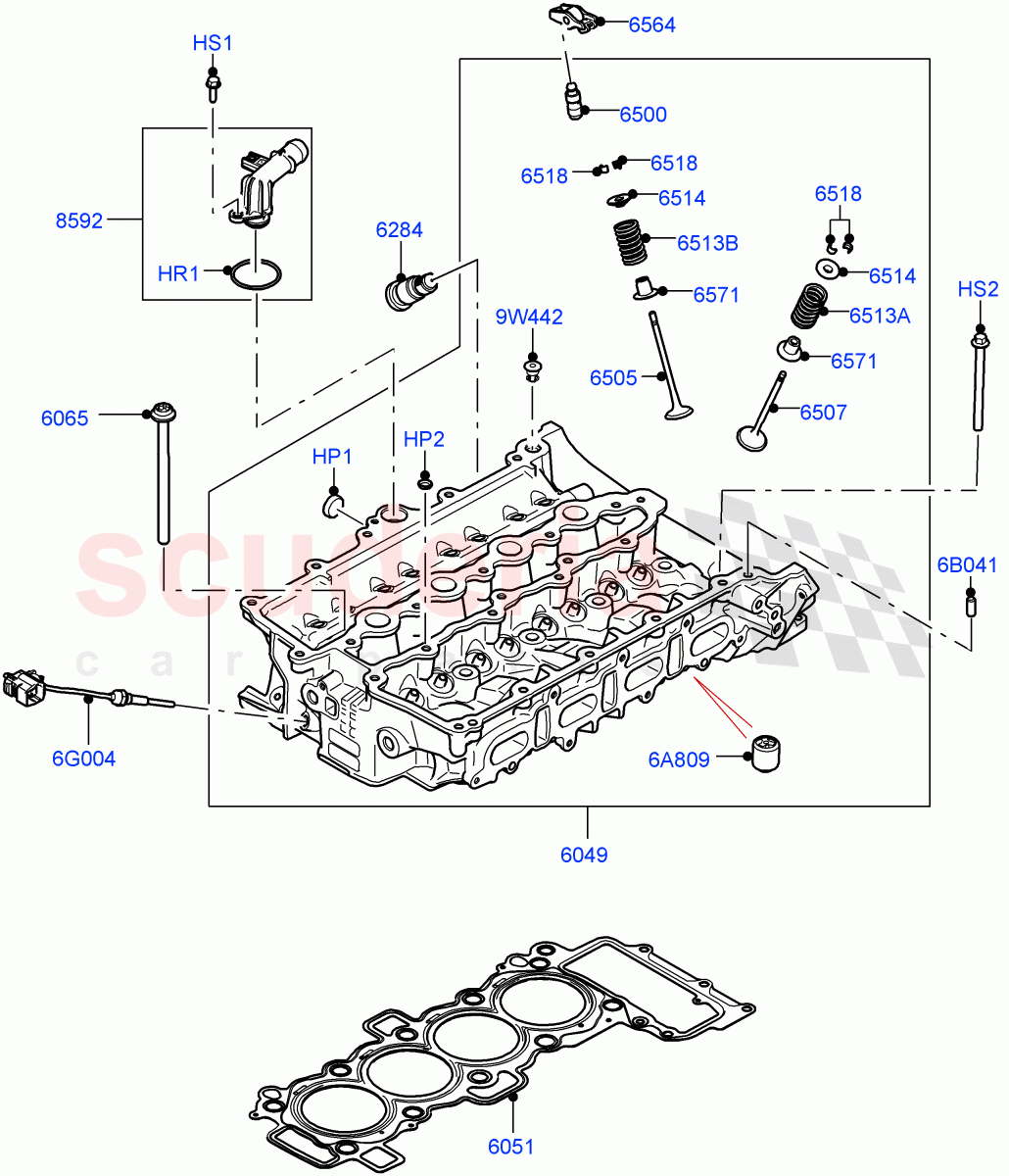

Cylinder Head (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 LR170798
PLUG - ENGINE 		$4.34 3
HP2 LR170956
Plug 		$0.79 6
HR1 LR123819
O-RING
Between Cylinder Head And Coolant Inlet Pipe / From: JA000001 		$3.33 1
HS1 LR073689
SCREW
Hexagonal Head, M6 X 20MM, Outlet pipe / From: JA000001 		$2.36 1
HS2 LR073738
SCREW
M8 x 100MM / From: JA000001
IN STOCK 		$3.88 1
6A809 LR077674
VALVE - CHECK
From: JA000001 		$9.66 1
6B041 LR073651
DOWEL - PIN
8 x 19MM / From: JA000001 		$3.84 2
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Sensor - Cylinder Head Temperature / From: JA000001 / To: JA186243 		$63.31 1
6G004 LR115083
SENSOR - CYLINDER HEAD TEMPERATURE
Sensor - Cylinder Head Temperature / From: JA186244 / To: MA779323 		$49.97 1
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Sensor - Cylinder Head Temperature / From: MA779324 		$63.31 1
9W442 LR073685
TUBE - DRAIN
Drain / From: JA000001 		$24.81 1
6049 LR091530
CYLINDER HEAD
With Valves / From: JA000001 / To: JA198828 		$3,474.89 1
6049 LR117019
CYLINDER HEAD
With Valves / From: JA198829 		$2,745.00 1
6051 LR091486
GASKET-CYLINDER HEAD
From: JA000001 		$86.21 1
6065 LR091487
BOLT - HEX.HEAD
From: JA000001 		$12.03 10
6284 LR091743
TENSIONER - TIMING BELT
Secondary / From: JA000001 		$124.41 1
6500 LR073777
TAPPET - VALVE
From: JA000001 		$51.02 8
6505 LR091763
VALVE - EXHAUST
From: JA000001 / To: MA781700 		$23.53 8
6505 LR134473
VALVE - EXHAUST
From: MA781701 		$27.93 8
6507 LR124745
VALVE - INLET
From: JA000001 / To: MA781700 		$27.85 8
6507 LR124745
VALVE - INLET
From: MA781701 		$27.85 8
6513A LR091751
SPRING - VALVE
Intake Side / From: JA000001 		$13.56 8
6513B LR091752
SPRING - VALVE
EXHAUST SIDE / From: JA000001 / To: JA198828 		$12.92 8
6513B LR117018
SPRING - VALVE
EXHAUST SIDE / From: JA198829 		$41.77 8
6514 LR091753
RETAINER - VALVE SPRING - UPPER
From: JA000001 		$17.07 16
6518 LR073774
COLLET - VALVE SPRING RETAINER
From: JA000001 		$3.33 32
6564 LR091754
ARM - VALVE ROCKER
From: JA000001 / To: MA999999 		$46.25 8
6564 LR091754
ARM - VALVE ROCKER
From: NA700000 / To: NA799999 		$46.25 8
6564 LR091754
ARM - VALVE ROCKER
From: NA200000 / To: NA208024 		$46.25 8
6564 LR163044
ARM - VALVE ROCKER
From: NA208025 / To: NA699999 		$43.60 8
6564 LR163044
ARM - VALVE ROCKER
From: PA000001 		$43.60 8
6571 LR091757
SEAL - VALVE STEM
From: JA000001 / To: JA193550 		$5.92 16
6571 LR116489
SEAL - VALVE STEM
From: JA193551
IN STOCK 		$7.99 16
8592 LR171244
TUBE - WATER OUTLET
From: JA000001 / To: KA418301 		$49.11 1
8592 LR122821
TUBE - WATER OUTLET
From: KA418302 / To: MA999999 		$48.70 1
8592 LR122821
TUBE - WATER OUTLET
From: NA700000 / To: NA799999 		$48.70 1
8592 LR122821
TUBE - WATER OUTLET
From: NA200000 / To: NA219324 		$48.70 1
8592 LR171244
TUBE - WATER OUTLET
From: NA219325 / To: NA699999 		$49.11 1
8592 LR171244
TUBE - WATER OUTLET
From: PA000001 		$49.11 1
