Name: Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)
Rating: 4.9 (1 reviews)

Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)

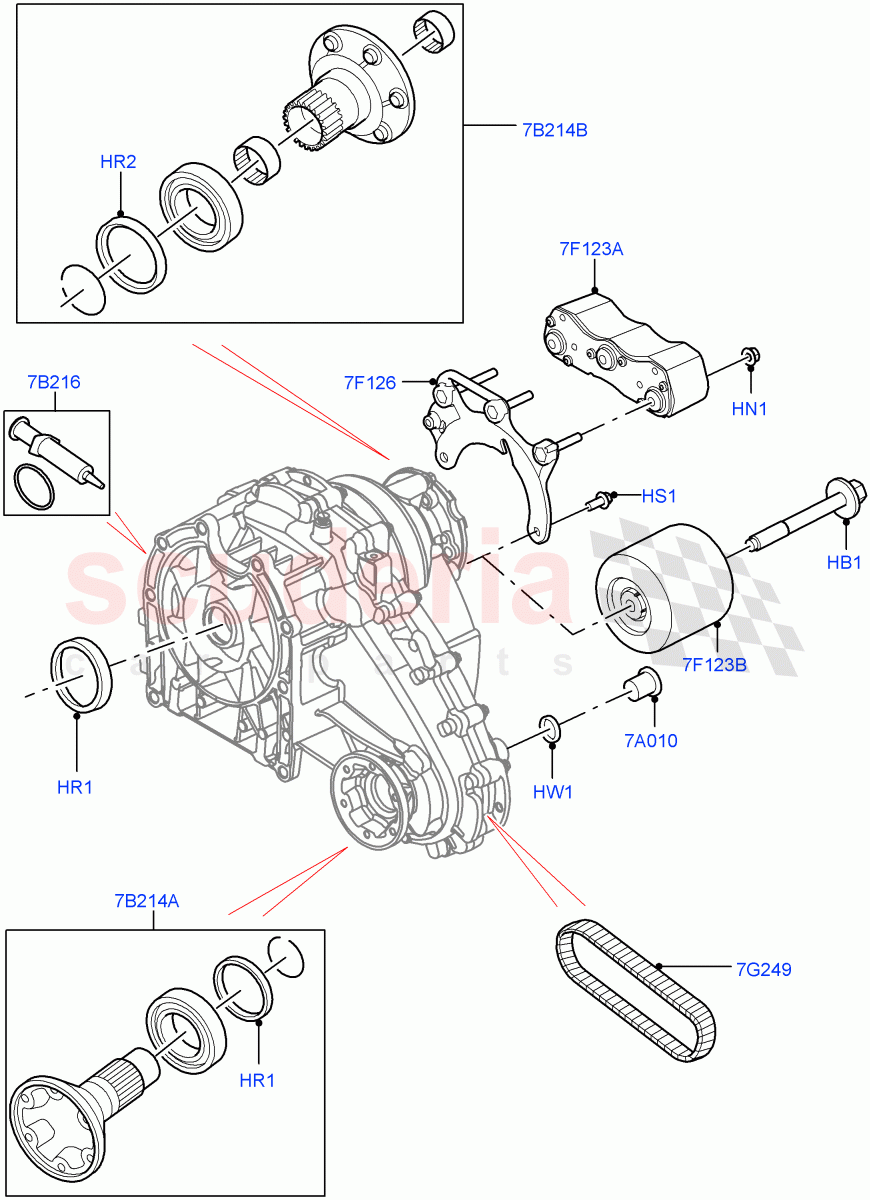

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126162	BOLT - HEX.HEAD	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000048	NUT - HEX. - FLANGED	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086041	SEAL - SPECIAL	$19.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086042	SEAL - SPECIAL	$23.82	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048842	WASHER - DRAIN PLUG	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048841	PLUG - OIL DRAIN	$6.16	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	$25.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048332	BRACKET - DAMPER	$92.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044897	CHAIN - TRANSFER DRIVE	$237.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086059	FLANGE - PROPSHAFT	$200.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039528	KIT - TRANSFER BOX FLANGE	$255.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046648	DAMPER - VIBRATION	$197.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122972	DAMPER - VIBRATION	$379.13	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR126162	BOLT - HEX.HEAD	LR126162 BOLT - HEX.HEAD 3.0L AJ20P6 Petrol High / Bolt And Washer, HEX Flange, M10 X 80MM / From: KA852707	$3.86	1
HN1	LR000048	NUT - HEX. - FLANGED	LR000048 NUT - HEX. - FLANGED 3.0L DOHC GDI SC V6 PETROL / M8 / From: HA000001 / To: KA852706	$0.55	3
HR1	LR086041	SEAL - SPECIAL	LR086041 SEAL - SPECIAL Seal / From: HA000001	$19.30	1
HR2	LR086042	SEAL - SPECIAL	LR086042 SEAL - SPECIAL Seal, Oil - Rear Output Flange / From: HA000001	$23.82	1
HS1	FA108202	SCREW	FA108202 SCREW 3.0L DOHC GDI SC V6 PETROL / Hexagonal Head, M8 X 20MM, Taptite / From: HA000001 / To: KA852706	$1.33	3
HW1	LR048842	WASHER - DRAIN PLUG	LR048842 WASHER - DRAIN PLUG Drain, FILLER, M18 / From: HA000001	$1.13	2
7A010	LR048841	PLUG - OIL DRAIN	LR048841 PLUG - OIL DRAIN Drain, FILLER, M18 / From: HA000001	$6.16	2
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: HA000001	$200.90	1
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear / From: HA000001	$255.83	1
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING From: HA000001	$25.01	1
7F123A	LR046648	DAMPER - VIBRATION	LR046648 DAMPER - VIBRATION 3.0L DOHC GDI SC V6 PETROL / From: HA000001 / To: KA852706	$197.04	1
7F123B	LR122972	DAMPER - VIBRATION	LR122972 DAMPER - VIBRATION 3.0L DOHC GDI SC V6 PETROL / From: KA852707	$379.13	1
7F126	LR048332	BRACKET - DAMPER	LR048332 BRACKET - DAMPER 3.0L DOHC GDI SC V6 PETROL / From: HA000001 / To: KA852706	$92.74	1
7G249	LR044897	CHAIN - TRANSFER DRIVE	LR044897 CHAIN - TRANSFER DRIVE From: HA000001	$237.71	1

Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Transfer Drive Components (Solihull Plant Build) (With 1 Speed Transfer Case) ((V) FROMHA000001)
