Electrical Wiring - Engine And Dash (3.0 V6 D Low Mt Row) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Electrical Wiring - Engine And Dash (3.0 V6 D Low MT ROW) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
4380670 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
LR085675 WIRE - ALTERNATOR $156.75 To Order
LR085676 WIRE - ALTERNATOR $194.35 To Order
LR107822 WIRE - ALTERNATOR $166.07 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041092 STUD $5.28 To Order
Photo Part No Description Price (each) Stock
LR085666 TERMINAL - BATTERY $106.59 To Order
Photo Part No Description Price (each) Stock
LR079353 WIRE $2,214.86 To Order
LR118759 WIRING - ENGINE $2,237.45 To Order
View All

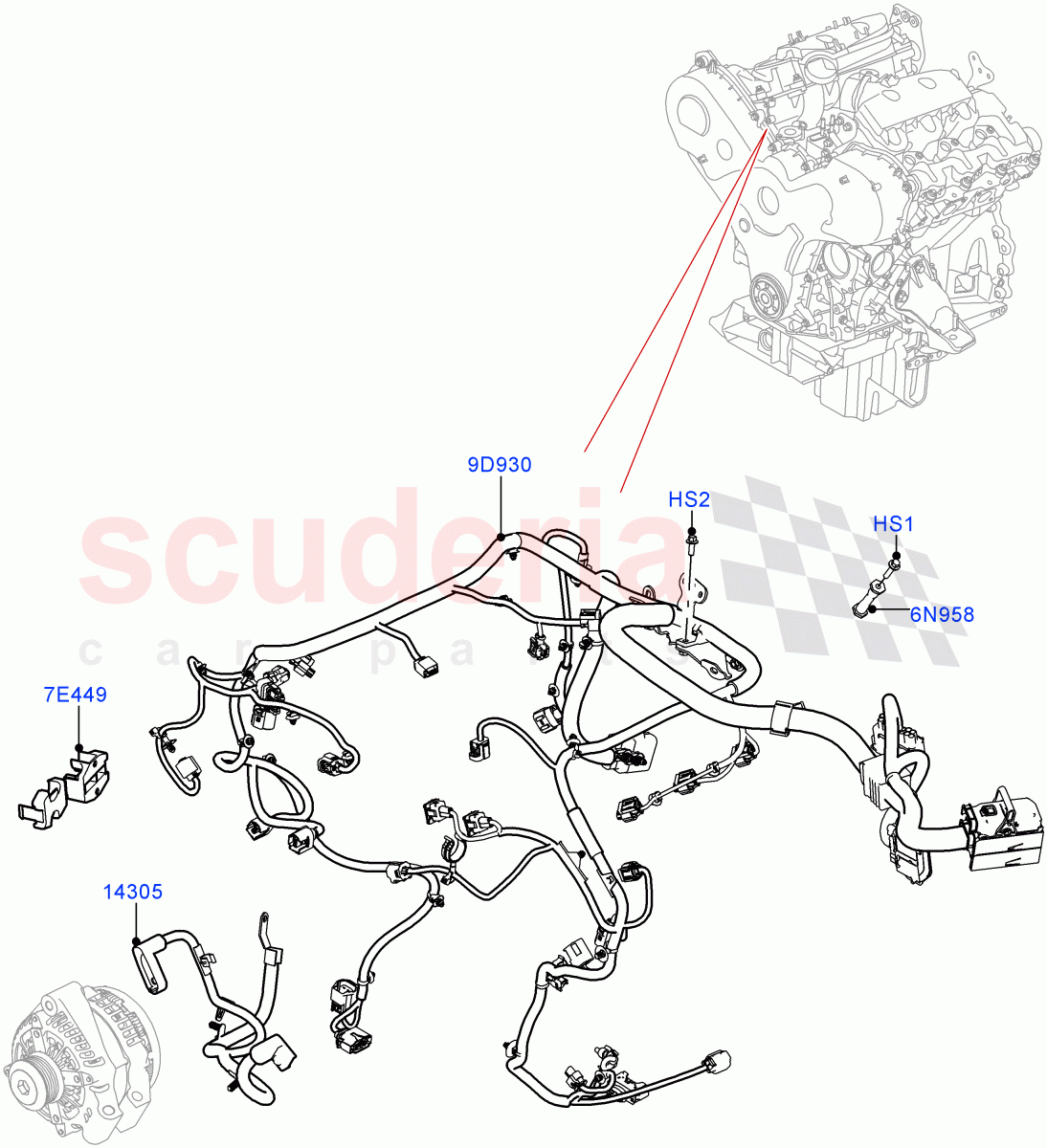

Electrical Wiring - Engine And Dash (3.0 V6 D Low MT ROW) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106256
SCREW
M6 x 25MM / From: HA000001 		$0.42 2
HS2 4380670
SCREW
Hexagonal Head, M6 X 16MM / From: HA000001 		$0.75 2
6N958 LR041092
STUD
M6 X 11 + M6 X 11 / From: HA000001 		$5.28 1
7E449 LR085666
TERMINAL - BATTERY
Battery Cables / From: HA000001 		$106.59 1
9D930 LR079353
WIRE
Engine / From: HA000001 / To: HA172139 		$2,214.86 1
9D930 LR118759
WIRING - ENGINE
Engine / From: HA172140 		$2,237.45 1
14305 LR085675
WIRE - ALTERNATOR
Starter - Stop/Start System / From: HA000001 / To: HA172139 		$156.75 1
14305 LR085676
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: HA000001 / To: HA172139 		$194.35 1
14305 LR107822
WIRE - ALTERNATOR
Starter - Stop/Start System / From: HA172140 / To: JA999999 		$166.07 1
14305 LR107817
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: HA172140 / To: JA999999 		$217.11 1
14305 LR120985
WIRE - ALTERNATOR
Starter - Stop/Start System / From: KA000001 		$187.87 1
14305 LR120986
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: KA000001 		$199.29 1
