Timing Gear (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid Dohc Aj200) ((V)...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Timing Gear (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088515 BOLT $2.60 To Order
Photo Part No Description Price (each) Stock
LR080771 BOLT $6.20 To Order
Photo Part No Description Price (each) Stock
LR073747 BOLT - SPECIAL $35.03 To Order
Photo Part No Description Price (each) Stock
LR073768 NUT $2.05 To Order
Photo Part No Description Price (each) Stock
LR154974 O-RING $7.18 IN STOCK
LR154974 O-RING $7.18 IN STOCK
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.67 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.35 To Order
Photo Part No Description Price (each) Stock
LR073762 PIN - SPECIAL $3.01 To Order
Photo Part No Description Price (each) Stock
LR073759 NUT - SPECIAL $1.80 To Order
LR120542 NUT - SPECIAL $3.04 To Order
Photo Part No Description Price (each) Stock
LR073764 SPROCKET - CAMSHAFT $276.00 To Order
Photo Part No Description Price (each) Stock
LR073744 SPROCKET - CAMSHAFT $146.44 To Order
Photo Part No Description Price (each) Stock
LR132676 CHAIN - TIMING $96.14 IN STOCK
LR132676 CHAIN - TIMING $96.14 IN STOCK
Photo Part No Description Price (each) Stock
LR139320 CHAIN - TIMING $112.05 IN STOCK
LR132675 CHAIN - TIMING $84.66 To Order
LR132675 CHAIN - TIMING $84.66 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138833 TENSIONER - TIMING CHAIN $124.61 IN STOCK
LR138833 TENSIONER - TIMING CHAIN $124.61 IN STOCK
LR138833 TENSIONER - TIMING CHAIN $124.61 IN STOCK
Photo Part No Description Price (each) Stock
LR084294 TENSIONER - TIMING BELT $145.63 IN STOCK
Photo Part No Description Price (each) Stock
LR124261 IDLER - DRIVE CHAIN $71.49 To Order
LR124261 IDLER - DRIVE CHAIN $71.49 To Order
Photo Part No Description Price (each) Stock
LR073778 SOLENOID - ENGINE VARIABLE TIMING $184.43 To Order
LR177463 SOLENOID - ENGINE VARIABLE TIMING $41.04 IN STOCK
Photo Part No Description Price (each) Stock
LR073765 SPROCKET - FUEL PUMP DRIVE $129.42 To Order
Photo Part No Description Price (each) Stock
LR120540 GUIDE - TIMING CHAIN $51.00 To Order
LR120540 GUIDE - TIMING CHAIN $51.00 To Order
Photo Part No Description Price (each) Stock
LR073756 GUIDE - TIMING CHAIN $41.83 To Order
Photo Part No Description Price (each) Stock
LR124262 ARM - TIMING CHAIN TENSIONER $42.67 IN STOCK
LR124262 ARM - TIMING CHAIN TENSIONER $42.67 IN STOCK
Photo Part No Description Price (each) Stock
LR073755 GUIDE - TIMING CHAIN $42.35 IN STOCK
Photo Part No Description Price (each) Stock
LR073761 ARM - TIMING CHAIN TENSIONER $39.22 IN STOCK
View All

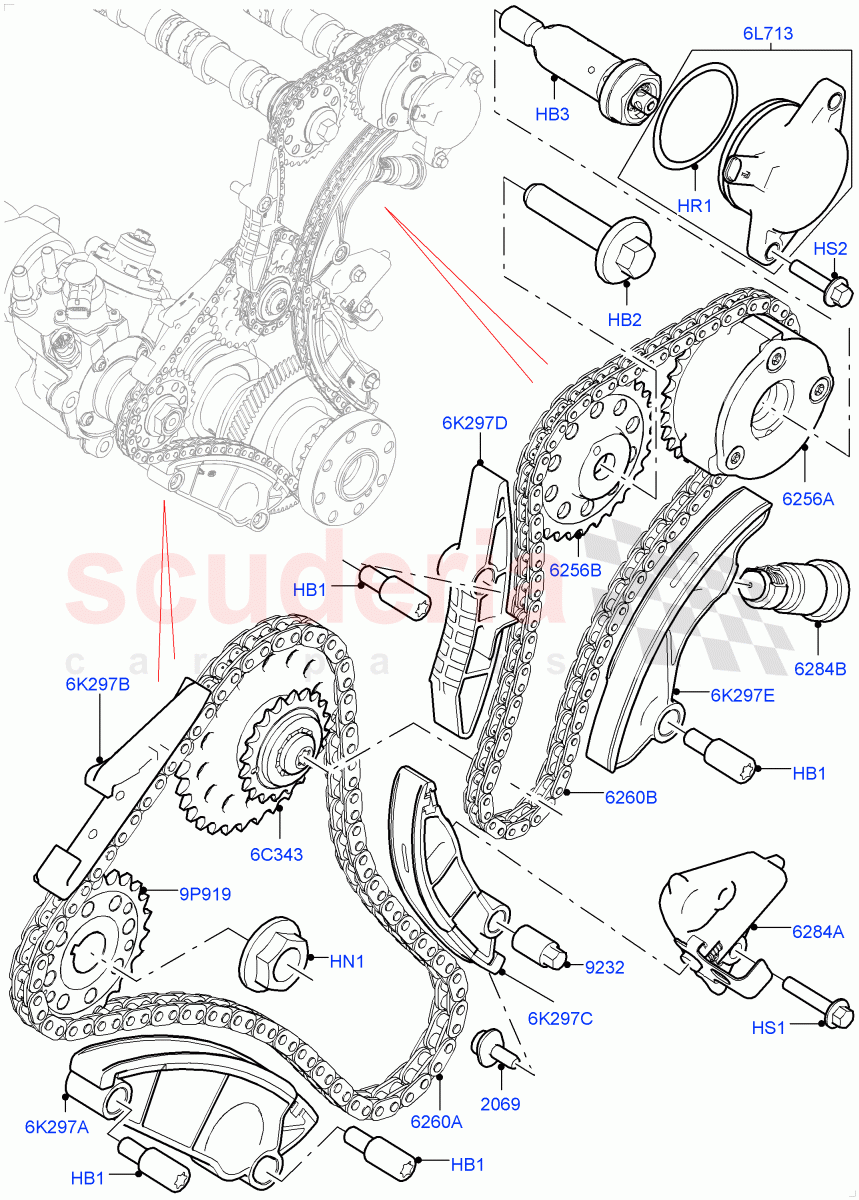

Timing Gear (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088515
BOLT
Chain Guide, M8 X 17MM / From: HA000001 		$2.60 4
HB2 LR080771
BOLT
Camshaft, M12 x 1.5 x 55 / From: HA000001 		$6.20 1
HB3 LR073747
BOLT - SPECIAL
Variable Valve Timing Unit / From: HA000001 		$35.03 1
HN1 LR073768
NUT
M18 / From: HA000001 		$2.05 1
HR1 LR154974
O-RING
IN STOCK 		$7.18 1
HR1 LR154974
O-RING
IN STOCK 		$7.18 1
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Tensioner / From: HA000001
IN STOCK 		$2.67 2
HS2 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: HA000001 		$1.35 2
6C343 LR124261
IDLER - DRIVE CHAIN
Intermediate / From: HA000001 / To: JA804412 		$71.49 1
6C343 LR124261
IDLER - DRIVE CHAIN
Intermediate / From: JA804413 		$71.49 1
6K297A LR120540
GUIDE - TIMING CHAIN
Lower, Primary / From: HA000001 / To: JA808869 		$51.00 1
6K297A LR120540
GUIDE - TIMING CHAIN
Lower, Primary / From: JA808870 		$51.00 1
6K297B LR073756
GUIDE - TIMING CHAIN
LH, Primary / From: HA000001 		$41.83 1
6K297C LR124262
ARM - TIMING CHAIN TENSIONER
RH, Primary / From: HA000001 / To: JA804412
IN STOCK 		$42.67 1
6K297C LR124262
ARM - TIMING CHAIN TENSIONER
RH, Primary / From: JA804413
IN STOCK 		$42.67 1
6K297D LR073755
GUIDE - TIMING CHAIN
LH, Secondary / From: HA000001
IN STOCK 		$42.35 1
6K297E LR073761
ARM - TIMING CHAIN TENSIONER
RH, Secondary / From: HA000001
IN STOCK 		$39.22 1
6L713 LR073778
SOLENOID - ENGINE VARIABLE TIMING
From: HA000001 / To: KA423211 		$184.43 1
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: KA423212
IN STOCK 		$41.04 1
9P919 LR073765
SPROCKET - FUEL PUMP DRIVE
For Fuel Pump / From: HA000001 		$129.42 1
2069 LR073762
PIN - SPECIAL
PIVOT / From: HA000001 		$3.01 1
6256A LR073764
SPROCKET - CAMSHAFT
Variable Valve Timing Unit / From: HA000001 		$276.00 1
6256B LR073744
SPROCKET - CAMSHAFT
From: HA000001 		$146.44 1
6260A LR132676
CHAIN - TIMING
Lower, Primary / From: HA000001 / To: KA864337
IN STOCK 		$96.14 1
6260A LR132676
CHAIN - TIMING
Lower, Primary / From: KA864338
IN STOCK 		$96.14 1
6260B LR139320
CHAIN - TIMING
Secondary, Upper / From: HA000001 / To: KA864337
IN STOCK 		$112.05 1
6260B LR132675
CHAIN - TIMING
Secondary, Upper / From: KA864338 / To: KA999999 		$84.66 1
6260B LR132675
CHAIN - TIMING
Secondary, Upper / From: LA800000 / To: LA899999 		$84.66 1
6260B LR132675
CHAIN - TIMING
Secondary, Upper / From: LA700000 / To: LA718978 		$84.66 1
6260B LR139320
CHAIN - TIMING
Secondary, Upper / From: LA718979 / To: LA799999
IN STOCK 		$112.05 1
6260B LR139320
CHAIN - TIMING
Secondary, Upper / From: MA000001
IN STOCK 		$112.05 1
6284A LR138833
TENSIONER - TIMING CHAIN
Primary / From: HA000001 / To: KA825618
IN STOCK 		$124.61 1
6284A LR138833
TENSIONER - TIMING CHAIN
Primary / From: KA825619 / To: LA710109
IN STOCK 		$124.61 1
6284A LR138833
TENSIONER - TIMING CHAIN
Primary / From: LA710110
IN STOCK 		$124.61 1
6284B LR084294
TENSIONER - TIMING BELT
Secondary / From: HA000001
IN STOCK 		$145.63 1
9232 LR073759
NUT - SPECIAL
From: HA000001 / To: JA806825 		$1.80 1
9232 LR120542
NUT - SPECIAL
From: JA806826 		$3.04 1
