Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074127 O-RING $5.17 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.35 To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW $3.44 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW $2.29 To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $3.04 To Order
Photo Part No Description Price (each) Stock
LR085937 PAN - ENGINE OIL $786.98 To Order
LR154108 PAN - ENGINE OIL $786.98 To Order
Photo Part No Description Price (each) Stock
LR154091 PLUG - OIL DRAIN $14.72 To Order
Photo Part No Description Price (each) Stock
LR085936 TUBE - OIL LEVEL INDICATOR $66.01 To Order
LR112100 TUBE - OIL LEVEL INDICATOR $58.65 To Order
Photo Part No Description Price (each) Stock
LR085474 TRAY - WINDAGE $446.75 To Order
LR130052 TRAY - WINDAGE $376.08 To Order
Photo Part No Description Price (each) Stock
LR082530 INSULATOR - ENGINE COMPARTMENT $59.78 To Order
View All

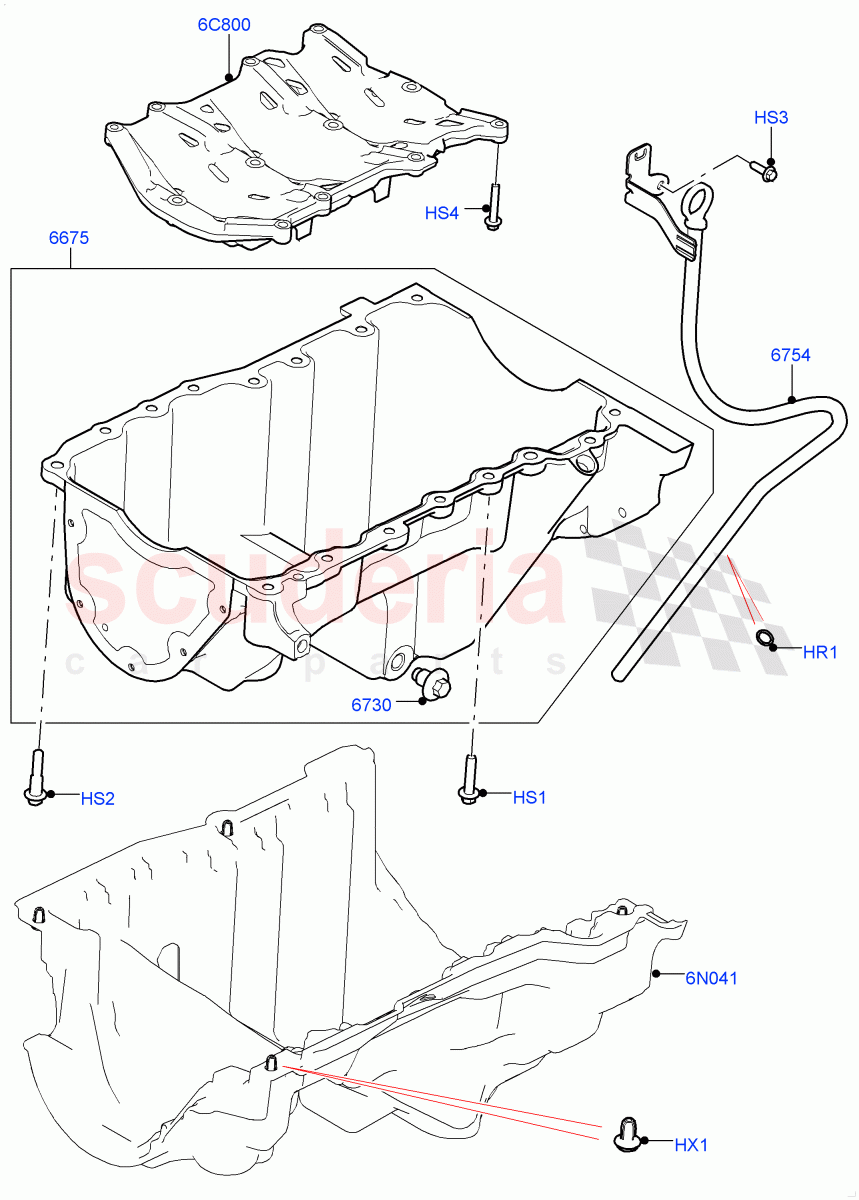

Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR074127
O-RING
11.5 x 2 mm, Tube Indicator / From: HA000001 		$5.17 1
HS1 LR073676
SCREW
M8 x 35mm / From: HA000001 		$2.35 14
HS2 LR073677
SCREW
M8 x 42mm / From: HA000001 		$3.44 2
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: HA000001 		$2.31 1
HS4 LR073635
SCREW
M6 x 35MM, Windage Tray / From: HA000001 		$2.29 12
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5 / From: HA000001 		$3.04 4
6C800 LR085474
TRAY - WINDAGE
From: HA000001 / To: LA894830 		$446.75 1
6C800 LR130052
TRAY - WINDAGE
From: LA894831 		$376.08 1
6N041 LR082530
INSULATOR - ENGINE COMPARTMENT
Oil Pan / From: HA000001 		$59.78 1
6675 LR085937
PAN - ENGINE OIL
From: HA000001 / To: MA768684 		$786.98 1
6675 LR154108
PAN - ENGINE OIL
From: MA768685 		$786.98 1
6730 LR154091
PLUG - OIL DRAIN
From: HA000001 		$14.72 1
6754 LR085936
TUBE - OIL LEVEL INDICATOR
From: HA000001 / To: JA174256 		$66.01 1
6754 LR112100
TUBE - OIL LEVEL INDICATOR
From: JA174257 		$58.65 1
