Electrical Wiring - Engine And Dash (Engine) (Aj Petrol 4.4 V8 Efi (220Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Electrical Wiring - Engine And Dash (Engine) (AJ Petrol 4.4 V8 EFI (220KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YSB500490 WIRE - JUMPER $19.52 To Order
4691236 WIRE - JUMPER $56.53 To Order
Photo Part No Description Price (each) Stock
YSB500470 WIRE $467.96 To Order
4741262 WIRE $1,383.36 To Order
LR005046 WIRE $1,457.65 To Order
Photo Part No Description Price (each) Stock
YSB500480 WIRE $27.69 To Order
View All

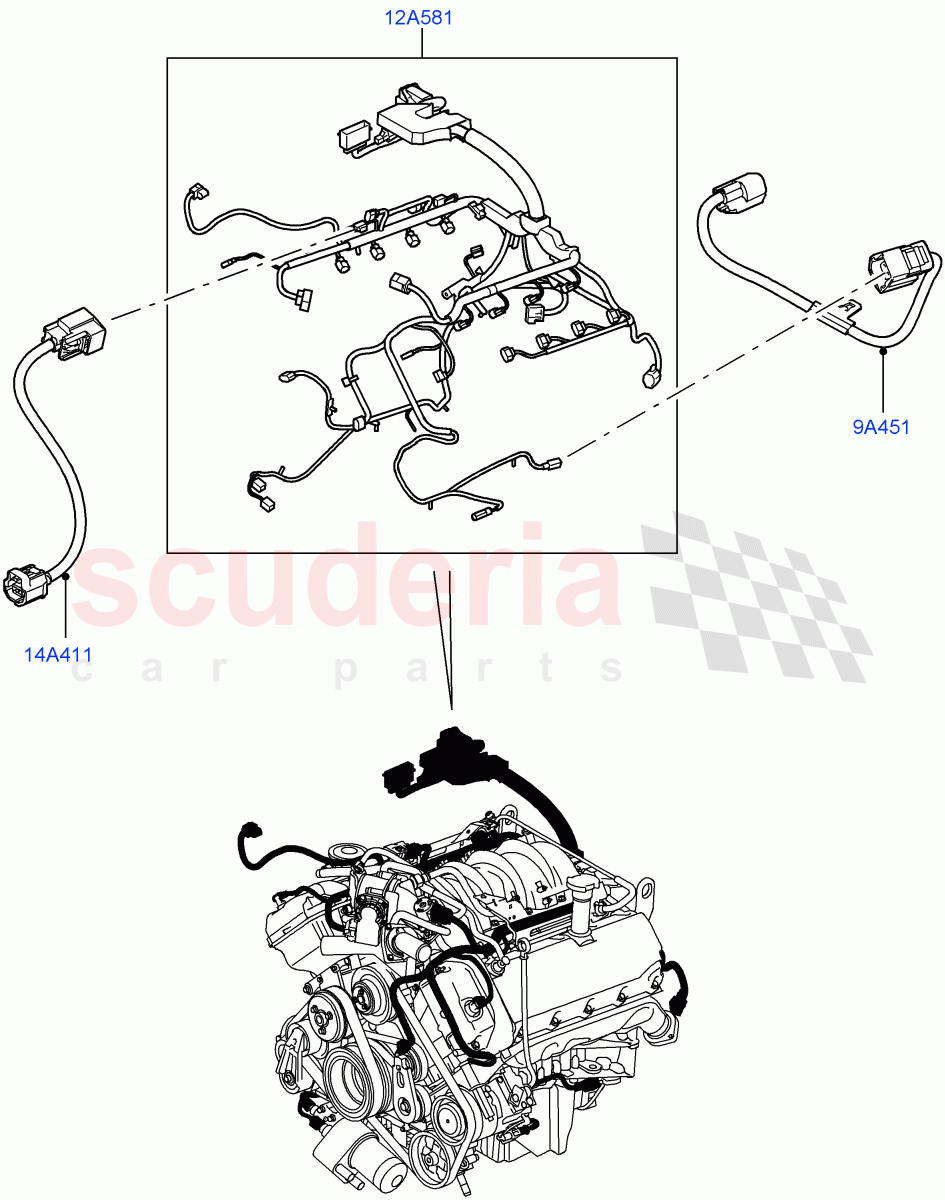

Electrical Wiring - Engine And Dash (Engine) (AJ Petrol 4.4 V8 EFI (220KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9A451 YSB500490
WIRE - JUMPER
Crankshaft Position Sensor(CKP) / To: 6A999999 		$19.52 1
9A451 4691236
WIRE - JUMPER
Crankshaft Position Sensor(CKP) / From: 7A000001 		$56.53 1
12A581 YSB500470
WIRE
To: 6A916350 		$467.96 1
12A581 4741262
WIRE
From: 6A916351 / To: 6A999999 		$1,383.36 1
12A581 LR005046
WIRE
From: 7A000001 		$1,457.65 1
14A411 YSB500480
WIRE
AJ Petrol 4.4 V8 EFI (220KW) / Temperature Sensor Jumper 		$27.69 1
