Air Suspension Compressor And Lines (Air Suspension Lines) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Air Suspension Compressor And Lines (Air Suspension Lines) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108167 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
KVV500040 GROMMET - VALVE $5.89 IN STOCK
Photo Part No Description Price (each) Stock
LR044836 CONNECTOR - VALVE BLOCK TO PIPE $24.67 IN STOCK
Photo Part No Description Price (each) Stock
RVH000095 VALVE - LEVELLING $279.87 To Order
Photo Part No Description Price (each) Stock
RVH000055 VALVE - LEVELLING $219.52 To Order
Photo Part No Description Price (each) Stock
RVH000046 VALVE - LEVELLING $349.49 To Order
Photo Part No Description Price (each) Stock
RQH500011 SENSOR - AIR SUSPENSION $120.74 To Order
Photo Part No Description Price (each) Stock
RQB500246 PIPE $162.15 To Order
RQB500247 PIPE $166.25 To Order
RQB501150 TUBE $172.44 To Order
Photo Part No Description Price (each) Stock
RQB500970 PIPE $106.20 To Order
RQB501160 Tube Enquire To Order
Photo Part No Description Price (each) Stock
RQB500742 PIPE $245.40 To Order
RQB501210 TUBE - AIR INLET $79.91 To Order
Photo Part No Description Price (each) Stock
RQB000493 TUBE $141.63 To Order
RQB000484 TUBE $115.18 To Order
Photo Part No Description Price (each) Stock
RQB000418 TUBE $101.43 To Order
Photo Part No Description Price (each) Stock
RQB500252 PIPE $129.44 To Order
Photo Part No Description Price (each) Stock
RQB000423 TUBE $115.18 To Order
Photo Part No Description Price (each) Stock
RQB500782 TUBE $123.69 To Order
Photo Part No Description Price (each) Stock
RQB501130 PIPE - AIR INLET $177.60 To Order
RQB501200 PIPE - AIR INLET $204.22 To Order
Photo Part No Description Price (each) Stock
RQB000464 TUBE $139.82 To Order
Photo Part No Description Price (each) Stock
RPR500030 SLEEVE $7.61 To Order
Photo Part No Description Price (each) Stock
RQN500070 RESERVOIR - COMPRESSED AIR $309.86 To Order
RQN500070 RESERVOIR - COMPRESSED AIR $309.86 To Order
View All

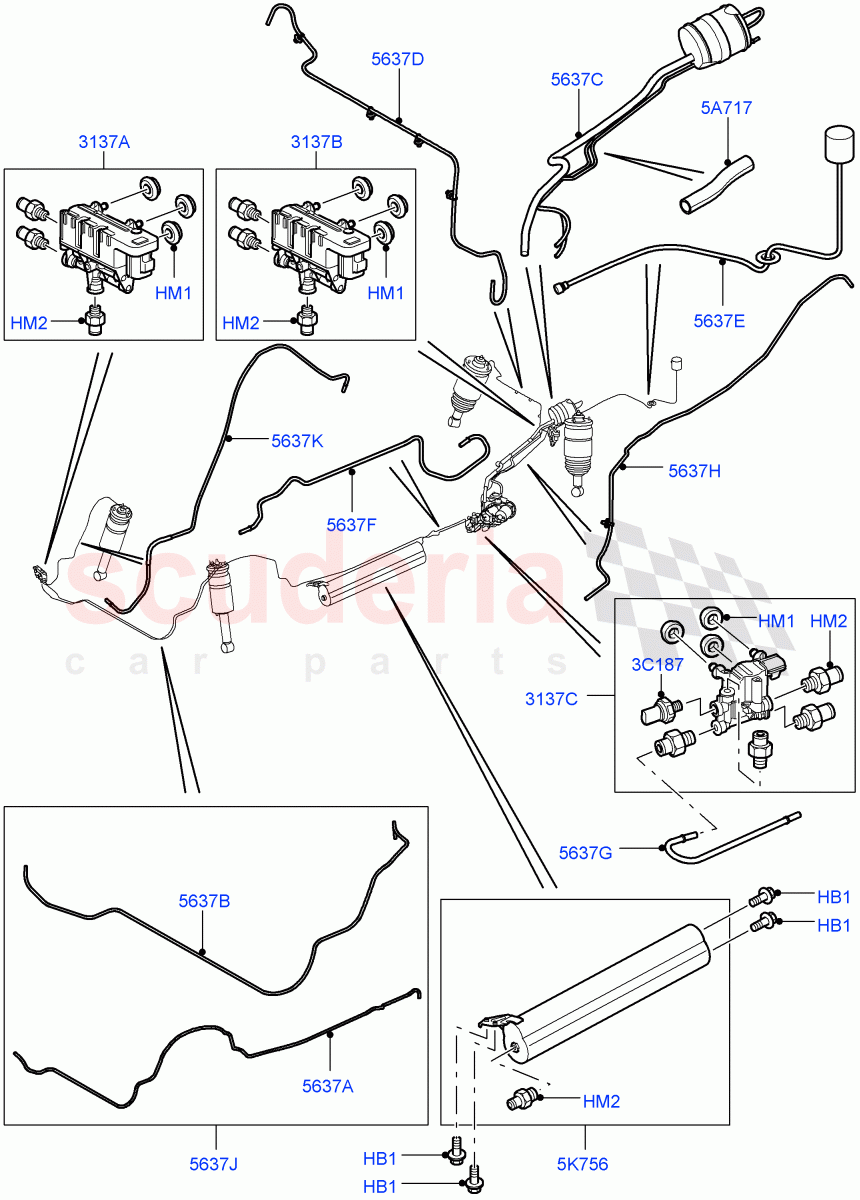

Air Suspension Compressor And Lines (Air Suspension Lines) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108167
SCREW
M8 X 16MM 		$0.77 4
HM1 KVV500040
GROMMET - VALVE
Grommet
IN STOCK 		$5.89 3
HM2 LR044836
CONNECTOR - VALVE BLOCK TO PIPE
6MM, Air Tube Connector
IN STOCK 		$24.67 -
3C187 RQH500011
SENSOR - AIR SUSPENSION
Pressure 		$120.74 1
5A717 RPR500030
SLEEVE
(+)"GCC" 		$7.61 1
5K756 RQN500070
RESERVOIR - COMPRESSED AIR
To: 8A149839 		$309.86 1
5K756 RQN500070
RESERVOIR - COMPRESSED AIR
From: 8A149840 		$309.86 1
3137A RVH000095
VALVE - LEVELLING
Front Axle 		$279.87 1
3137B RVH000055
VALVE - LEVELLING
Rear Axle 		$219.52 1
3137C RVH000046
VALVE - LEVELLING
Reservoir 		$349.49 1
5637A RQB500246
PIPE
Reservoir Valve To Front Axle Valve / To: 5A905842 		$162.15 1
5637A RQB500247
PIPE
Reservoir Valve To Front Axle Valve / From: 5A905843 / To: 6A999999 		$166.25 1
5637A RQB501150
TUBE
Reservoir Valve To Front Axle Valve / From: 7A000001 		$172.44 1
5637B RQB500970
PIPE
Axle Valve To Front LH Spring / To: 6A999999 		$106.20 1
5637B RQB501160
Tube
Axle Valve To Front LH Spring / From: 7A000001 		- 1 Enquire
5637C RQB500742
PIPE
Air Inlet / Exhaust Silencer / To: 8A142900 		$245.40 1
5637C RQB501210
TUBE - AIR INLET
Air Inlet / Exhaust Silencer / From: 8A142901 		$79.91 1
5637D RQB000493
TUBE
Axle Valve To Rear RH Spring 		$141.63 1
5637D RQB000484
TUBE
Axle Valve To Rear LH Spring 		$115.18 1
5637E RQB000418
TUBE
Main Inlet Air Suspension 		$101.43 1
5637F RQB500252
PIPE
Reservoir Valve To Reservoir 		$129.44 1
5637G RQB000423
TUBE
Supply Unit To Reservoir Valve Block 		$115.18 1
5637H RQB500782
TUBE
Reservoir Valve To Rear Axle Valve 		$123.69 1
5637J RQB501130
PIPE - AIR INLET
Axle Valve To Front LH Spring, Reservoir Valve To Front Axle Valve, Tube Assembly / From: 7A000001 / To: 7A999999 		$177.60 1
5637J RQB501200
PIPE - AIR INLET
Axle Valve To Front LH Spring, Reservoir Valve To Front Axle Valve, Tube Assembly / From: 8A000001 		$204.22 1
5637K RQB000464
TUBE
Axle Valve To Front RH Spring 		$139.82 1
