Fuel Tank & Related Parts (With 2 Vent Pipes, This Section Refers To Tsb Ltb00293, Vehicles Fitted...

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Fuel Tank & Related Parts (With 2 Vent Pipes, This Section Refers To TSB LTB00293, Vehicles Fitted...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SN106127L BOLT $0.65 To Order
Photo Part No Description Price (each) Stock
CN100509 CLIP $1.60 To Order
Photo Part No Description Price (each) Stock
WYQ000010 RIVET - PLASTIC $5.86 IN STOCK
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.68 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
RYP500190 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.22 IN STOCK
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
WJ600041L WASHER $0.60 IN STOCK
Photo Part No Description Price (each) Stock
WJ110006 WASHER $1.41 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.64 To Order
Photo Part No Description Price (each) Stock
LR016241 TANK - FUEL $1,193.91 To Order
Photo Part No Description Price (each) Stock
LR181511 CAP - FUEL TANK FILLER $39.29 To Order
Photo Part No Description Price (each) Stock
LR013825 FILLER - FUEL TANK $346.40 To Order
LR013826 FILLER - FUEL TANK $327.92 To Order
Photo Part No Description Price (each) Stock
LR013753 COVER - DUST $171.65 To Order
Photo Part No Description Price (each) Stock
LR010621 HOSE - FILLER PIPE $63.66 To Order
Photo Part No Description Price (each) Stock
WFN000014 FUEL TANK $306.95 To Order
Photo Part No Description Price (each) Stock
LR015975 HOSE - FUEL FEED $99.12 To Order
Photo Part No Description Price (each) Stock
LR016266 TUBE - FUEL $134.57 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.55 IN STOCK
Photo Part No Description Price (each) Stock
WFU500020 BRACKET $3.30 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.35 To Order
Photo Part No Description Price (each) Stock
LR013771 RING - RETAINING $31.14 To Order
Photo Part No Description Price (each) Stock
LR016845 SENDER AND PUMP $496.02 To Order
Photo Part No Description Price (each) Stock
LR016260 TUBE - BREATHER $97.15 To Order
Photo Part No Description Price (each) Stock
LR020971 JUMPER WIRING $100.27 To Order
Photo Part No Description Price (each) Stock
SPV500020 CLIP $1.09 To Order
Photo Part No Description Price (each) Stock
LR014156 CLIP - PARKING BRAKE CABLE $1.92 To Order
Photo Part No Description Price (each) Stock
WFZ500034 SHIELD $34.17 To Order
Photo Part No Description Price (each) Stock
WFZ500130 SHIELD $71.00 To Order
View All

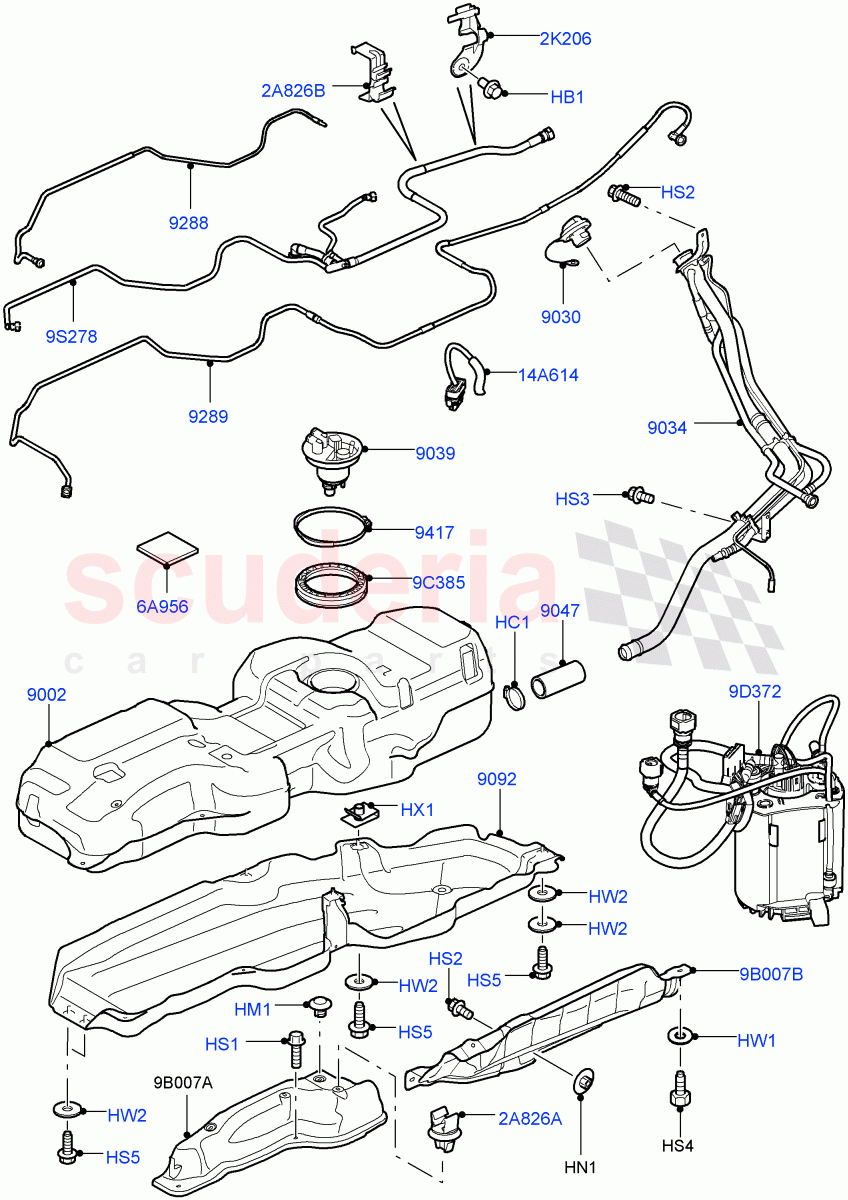

Fuel Tank & Related Parts (With 2 Vent Pipes, This Section Refers To TSB LTB00293, Vehicles Fitted With 10MY Fuel Tank) (AJ Petrol 4.4 V8 EFI (220KW)) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SN106127L
BOLT
M6 		$0.65 2
HC1 CN100509
CLIP
Hose Clamp 		$1.60 1
HM1 WYQ000010
RIVET - PLASTIC
Plastic, Rivet Type
IN STOCK 		$5.86 2
HN1 WYH500050
NUT - LOCKING
M5
IN STOCK 		$2.68 2
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 1
HS2 RYP500190
SCREW
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.65 1
HS3 FS108126
SCREW
M8 x 12MM
IN STOCK 		$1.36 1
HS4 FS106167L
SCREW
M6 X 16MM
IN STOCK 		$2.22 2
HS5 RYG500270
SCREW
Hexagonal Head, M10 X 25MM 		$2.82 6
HW1 WJ600041L
WASHER
M6
IN STOCK 		$0.60 2
HW2 WJ110006
WASHER
10 MM 		$1.41 7
HX1 KYH500100
NUT - SPRING
Fuel Tank Attaching, M10, Nut "U" Spring 		$1.64 2
2A826A SPV500020
CLIP
For 		$1.09 2
2A826B LR014156
CLIP - PARKING BRAKE CABLE 		$1.92 3
2K206 WFU500020
BRACKET 		$3.30 1
6A956 LR025789
FOAM PAD - ENERGY ABSORBING 		$23.35 1
9B007A WFZ500034
SHIELD 		$34.17 1
9B007B WFZ500130
SHIELD 		$71.00 1
9C385 LR013771
RING - RETAINING 		$31.14 1
9D372 LR016845
SENDER AND PUMP
Vehicles Fitted With 10MY Fuel Tank 		$496.02 1
9S278 LR016260
TUBE - BREATHER
Breather Pipe 		$97.15 1
14A614 LR020971
JUMPER WIRING 		$100.27 1
9002 LR016241
TANK - FUEL 		$1,193.91 1
9030 LR181511
CAP - FUEL TANK FILLER 		$39.29 1
9034 LR013825
FILLER - FUEL TANK
(+)"CDN/MEX/USA" 		$346.40 1
9034 LR013826
FILLER - FUEL TANK
(-)"CDN/MEX/USA" 		$327.92 1
9039 LR013753
COVER - DUST 		$171.65 1
9047 LR010621
HOSE - FILLER PIPE 		$63.66 1
9092 WFN000014
FUEL TANK 		$306.95 1
9288 LR015975
HOSE - FUEL FEED 		$99.12 1
9289 LR016266
TUBE - FUEL
Vapour Line 		$134.57 1
9417 LR117476
GASKET
O-Ring
IN STOCK 		$10.55 1
