Name: Throttle Housing (AJ Petrol 4.4 V8 EFI (220KW))
Rating: 4.7 (1 reviews)

View All

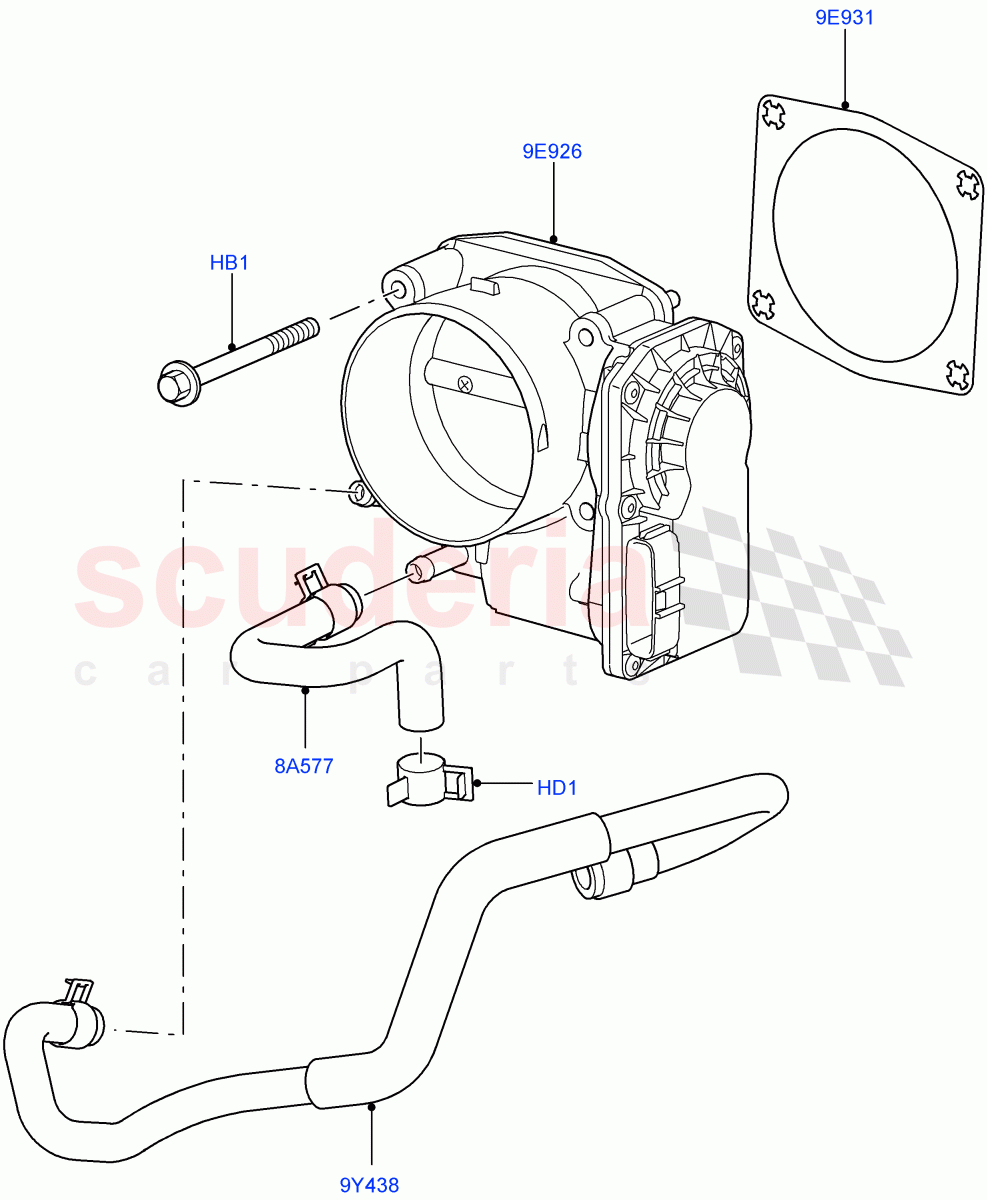

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4606357	CLAMP - TUBE	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	4536886	GASKET	$22.61	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4654270	BOLT	4654270 BOLT M6 x 55MM / To: 5A999999	$7.41	4
HB1	4662918	BOLT	4662918 BOLT M6 x 55MM / From: 6A000001	$3.53	4
HD1	4606357	CLAMP - TUBE	4606357 CLAMP - TUBE "Spring", 12 X 16MM	$7.52	1
8A577	4606299	HOSE	4606299 HOSE To: 6A999999	$5.42	1
8A577	LR006159	HOSE	LR006159 HOSE From: 7A000001	$33.16	1
9E926	4637031	THROTTLE BODY AND MOTOR	4637031 THROTTLE BODY AND MOTOR To: 6A999999	$401.60	1
9E926	LR006142	THROTTLE BODY AND MOTOR	LR006142 THROTTLE BODY AND MOTOR From: 7A000001	$400.78	1
9E931	4536886	GASKET IN STOCK	4536886 GASKET IN STOCK	$22.61	1
9Y438	4606329	HOSE	4606329 HOSE From: 7A000001 / To: 7A997520	$67.26	1
9Y438	4585546	HOSE	4585546 HOSE To: 6A999999	$16.80	1
9Y438	LR006161	HOSE	LR006161 HOSE From: 7A997521	$15.65	1

Throttle Housing (Aj Petrol 4.4 V8 Efi (220Kw))

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]
