Name: Inlet Manifold (AJ Petrol 4.4 V8 EFI (220KW))
Rating: 5.0 (1 reviews)

Inlet Manifold (AJ Petrol 4.4 V8 EFI (220KW)) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Inlet Manifold (AJ Petrol 4.4 V8 EFI (220KW))

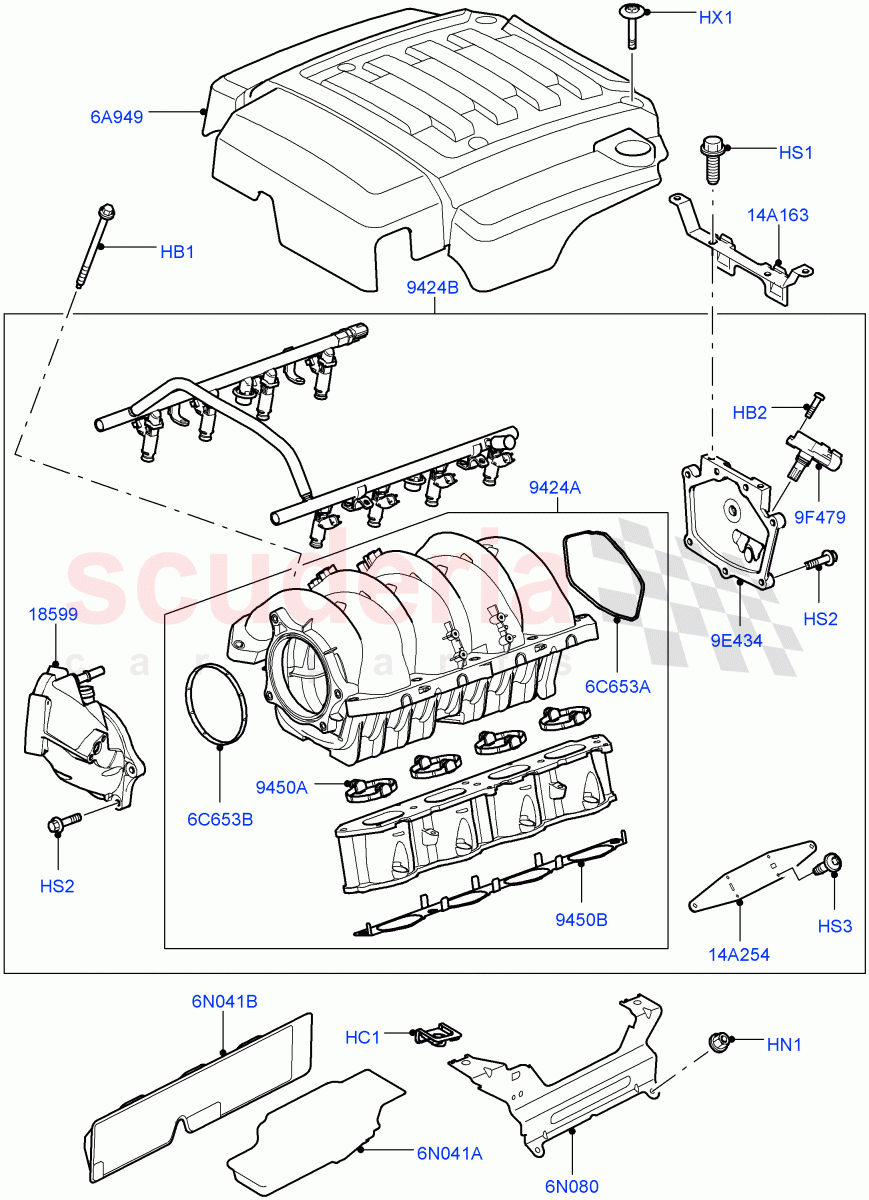

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4357545	BOLT	$5.24	To Order

Photo	Part No	Description	Price (each)	Stock
	4670347	BOLT	$0.48	To Order

Photo	Part No	Description	Price (each)	Stock
	1358613	CLIP	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4558527	SCREW	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HYP500320	SCREW	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LZM500020	FASTENER	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	4670345	ELBOW - INDUCTION MANIFOLD	$123.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LBH500012	INSULATOR - ENGINE COMPARTMENT	$282.63	To Order

Photo	Part No	Description	Price (each)	Stock
	4573238	BRACKET	$10.36	To Order
	4536835	BRACKET	$13.57	To Order
	LR005097	BRACKET	$11.61	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR000364	MANIFOLD - AIR INTAKE	$1,458.12	To Order

Photo	Part No	Description	Price (each)	Stock
	4669967	MANIFOLD - INLET	$1,611.35	To Order
	4728618	MANIFOLD - INLET	$1,717.90	To Order
	4741278	MANIFOLD - INLET	$1,717.90	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4526549	GASKET	$17.58	To Order
	LR006678	GASKET	$15.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4628235	GASKET - INTAKE MANIFOLD	$24.83	To Order

Photo	Part No	Description	Price (each)	Stock
	4670799	COVER - INTAKE MANIFOLD	$97.79	To Order

Photo	Part No	Description	Price (each)	Stock
	4628195	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$203.76	To Order

Photo	Part No	Description	Price (each)	Stock
	YSU500050	CLIP - WIRING	$12.64	To Order

Photo	Part No	Description	Price (each)	Stock
	4670789	CLIP - WIRING	$5.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4526546	SEAL	$11.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LWF500020	SEAL	$9.62	To Order

Photo	Part No	Description	Price (each)	Stock
	4536879	INSULATOR	$21.99	To Order

Photo	Part No	Description	Price (each)	Stock
	4604784	INSULATOR	$25.94	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4357545	BOLT	4357545 BOLT M8 X 112.5	$5.24	10
HB2	4670347	BOLT	4670347 BOLT M4 x 16MM	$0.48	2
HC1	1358613	CLIP	1358613 CLIP Clip For Engine Cover Mounting Bracket	$1.79	4
HN1	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 IN STOCK	$0.52	4
HS1	4558527	SCREW	4558527 SCREW M6 X 20MM	$0.80	2
HS2	4378449	SCREW IN STOCK	4378449 SCREW M6 x 25MM IN STOCK	$2.08	11
HS3	HYP500320	SCREW IN STOCK	HYP500320 SCREW M4 x 12MM IN STOCK	$1.23	4
HX1	LZM500020	FASTENER	LZM500020 FASTENER Engine Cover	$7.54	4
6A949	LBH500012	INSULATOR - ENGINE COMPARTMENT	LBH500012 INSULATOR - ENGINE COMPARTMENT	$282.63	1
6C653A	4526546	SEAL	4526546 SEAL	$11.81	1
6C653B	LWF500020	SEAL	LWF500020 SEAL	$9.62	1
6N041A	4536879	INSULATOR	4536879 INSULATOR	$21.99	1
6N041B	4604784	INSULATOR	4604784 INSULATOR	$25.94	1
6N080	4573238	BRACKET	4573238 BRACKET LH / To: 6A999999	$10.36	1
6N080	4536835	BRACKET	4536835 BRACKET RH / To: 6A999999	$13.57	1
6N080	LR005097	BRACKET	LR005097 BRACKET LH / From: 7A000001	$11.61	1
6N080	LR002200	BRACKET	LR002200 BRACKET RH / From: 7A000001	$11.72	1
9E434	4670799	COVER - INTAKE MANIFOLD	4670799 COVER - INTAKE MANIFOLD	$97.79	1
9F479	4628195	SENSOR - MANIFOLD ABSOLUTE PRESSURE	4628195 SENSOR - MANIFOLD ABSOLUTE PRESSURE	$203.76	1
14A163	YSU500050	CLIP - WIRING	YSU500050 CLIP - WIRING Wiring Harness	$12.64	1
14A254	4670789	CLIP - WIRING	4670789 CLIP - WIRING	$5.21	1
9424A	LR000364	MANIFOLD - AIR INTAKE	LR000364 MANIFOLD - AIR INTAKE	$1,458.12	1
9424B	4669967	MANIFOLD - INLET	4669967 MANIFOLD - INLET Complete Assembly / To: 5A910671	$1,611.35	1
9424B	4728618	MANIFOLD - INLET	4728618 MANIFOLD - INLET Complete Assembly / From: 5A910672 / To: 6A916351	$1,717.90	1
9424B	4741278	MANIFOLD - INLET	4741278 MANIFOLD - INLET Complete Assembly / From: 6A916351 / To: 6A999999	$1,717.90	1
9424B	LR003393	MANIFOLD - INLET	LR003393 MANIFOLD - INLET Complete Assembly / From: 7A000001	$4,147.63	1
9450A	4526549	GASKET	4526549 GASKET To: 5A910671	$17.58	8
9450A	LR006678	GASKET	LR006678 GASKET From: 5A910672	$15.85	8
9450B	4628235	GASKET - INTAKE MANIFOLD	4628235 GASKET - INTAKE MANIFOLD	$24.83	2
18599	4670345	ELBOW - INDUCTION MANIFOLD	4670345 ELBOW - INDUCTION MANIFOLD	$123.26	1

Inlet Manifold (Aj Petrol 4.4 V8 Efi (220Kw))

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Inlet Manifold (AJ Petrol 4.4 V8 EFI (220KW))
