Electrical Wiring - Engine And Dash (Engine) (Aj Petrol 4.2 V8 Supercharged) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Electrical Wiring - Engine And Dash (Engine) (AJ Petrol 4.2 V8 Supercharged) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4348254 BOLT - HEX. HEAD - FLANGED $0.05 To Order
Photo Part No Description Price (each) Stock
YSB500490 WIRE - JUMPER $18.53 To Order
4691236 WIRE - JUMPER $53.64 To Order
Photo Part No Description Price (each) Stock
LR005050 WIRE $127.41 To Order
Photo Part No Description Price (each) Stock
4676675 WIRE $411.36 To Order
LR005049 WIRE $1,334.09 To Order
LR005048 WIRE $1,383.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YSU500110 CLIP - WIRING $6.28 To Order
View All

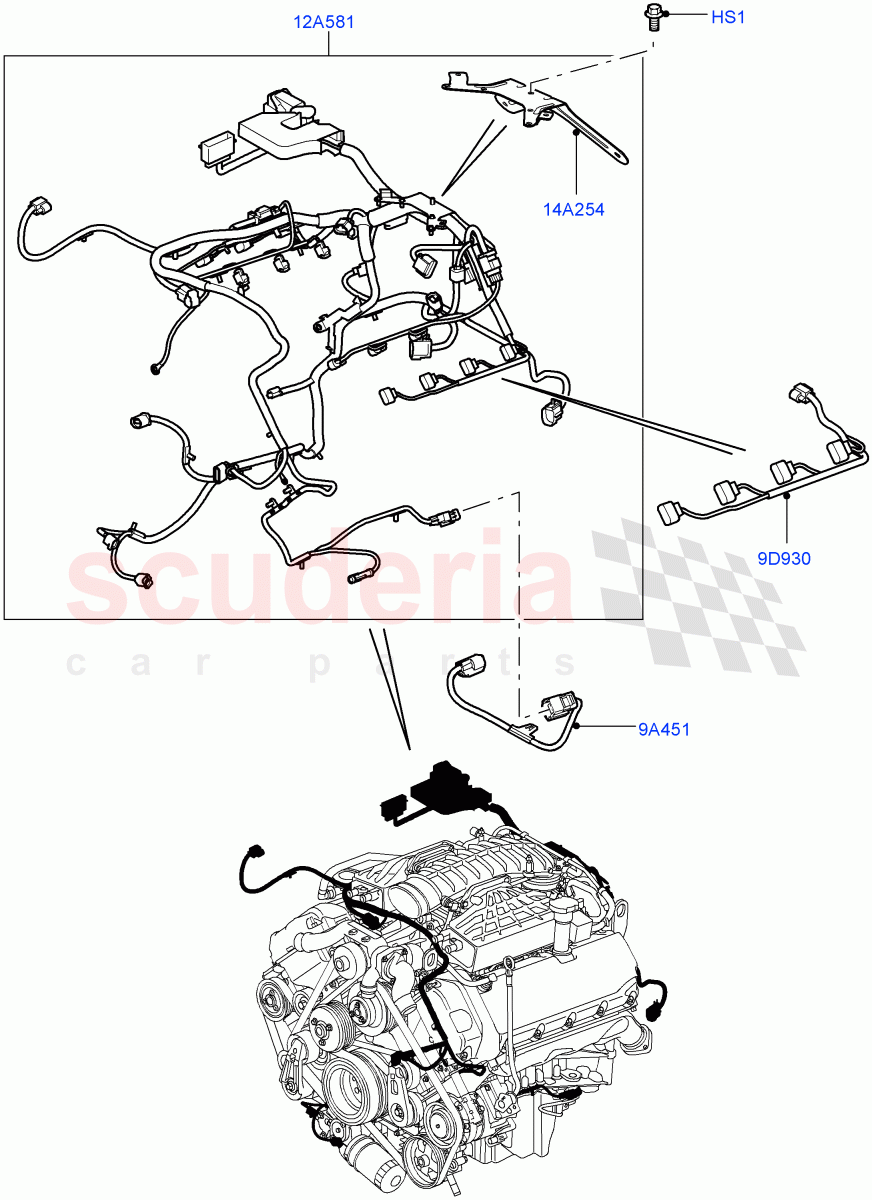

Electrical Wiring - Engine And Dash (Engine) (AJ Petrol 4.2 V8 Supercharged) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 4348254
BOLT - HEX. HEAD - FLANGED
M5 x 14MM 		$0.05 4
9A451 YSB500490
WIRE - JUMPER
Crankshaft Position Sensor(CKP) / To: 6A999999 		$18.53 1
9A451 4691236
WIRE - JUMPER
Crankshaft Position Sensor(CKP) / From: 7A000001 		$53.64 1
9D930 LR005050
WIRE
To Fuel Injectors 		$127.41 1
12A581 4676675
WIRE
To: 6A980212 		$411.36 1
12A581 LR005049
WIRE
(+)"CDN/MEX/USA" / From: 7A000001 		$1,334.09 1
12A581 LR005048
WIRE
(-)"CDN/MEX/USA" / From: 7A000001 		$1,383.87 1
12A581 LR006284
WIRE
From: 6A980213 / To: 6A999999 		$2,074.74 1
14A254 YSU500110
CLIP - WIRING 		$6.28 1
