Name: Rear Window Wiper And Washer ((V) TO9A999999)
Rating: 5.0 (1 reviews)

View All

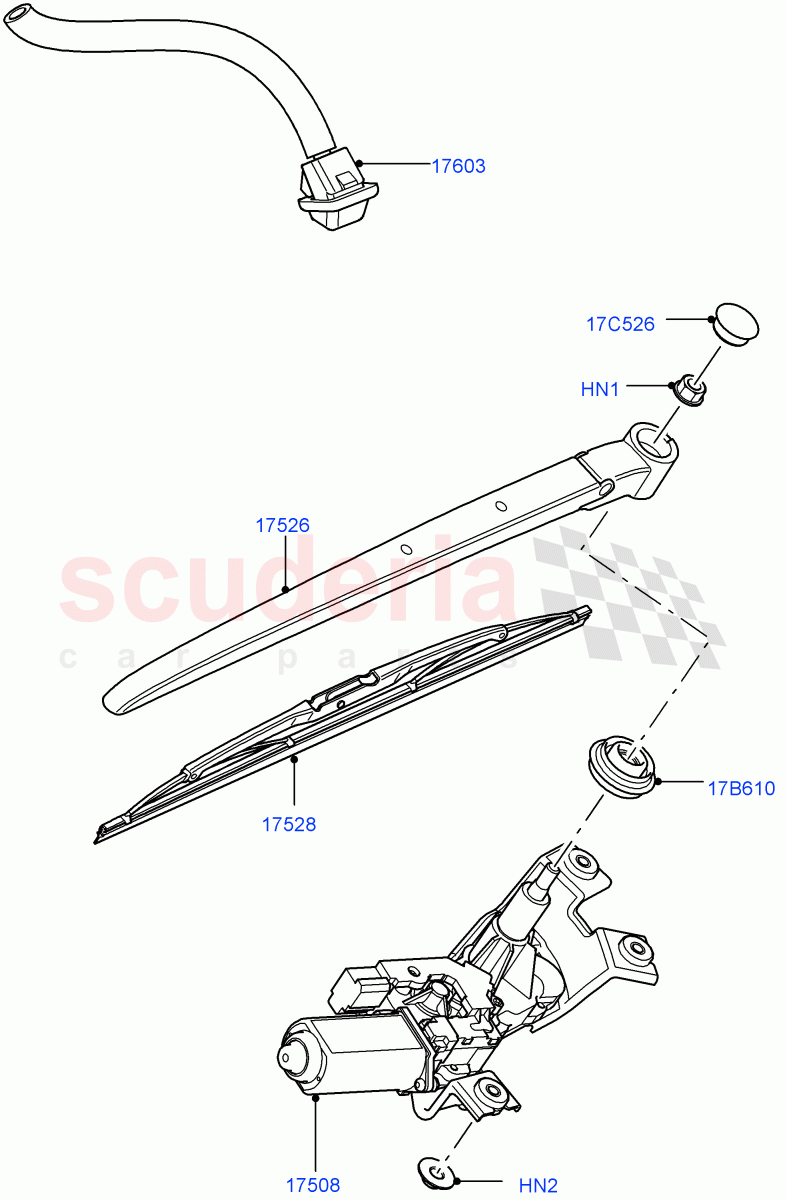

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DYH500140	NUT AND WASHER - HEX.	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	DNJ500260	JET - WINDSHIELD WASHER	$12.90	To Order

Photo	Part No	Description	Price (each)	Stock
	DLD500034	SEAL	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	DKG500011PMD	CAP - WIPER ARM	$4.88	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6, Wiper Arm IN STOCK	$1.03	1
HN2	DYH500140	NUT AND WASHER - HEX.	DYH500140 NUT AND WASHER - HEX. Attaches Wiper Motor, M6	$0.52	3
17B610	DLD500034	SEAL	DLD500034 SEAL Motor - Rear Window Wiper	$1.99	1
17C526	DKG500011PMD	CAP - WIPER ARM IN STOCK	DKG500011PMD CAP - WIPER ARM IN STOCK	$4.88	1
17508	DLB500013	MOTOR - WIPER	DLB500013 MOTOR - WIPER Rear Window / To: 5A999999	$346.92	1
17508	DLB500014	MOTOR - WIPER	DLB500014 MOTOR - WIPER Rear Window / From: 6A000001	$374.66	1
17526	DKB500160PMD	ARM - WIPER	DKB500160PMD ARM - WIPER To: 7A111119	$48.20	1
17526	DKB500720	ARM - WIPER	DKB500720 ARM - WIPER From: 7A111120	$77.50	1
17528	DKC500031	BLADE - WIPER	DKC500031 BLADE - WIPER Rear Window / To: 7A111119	$63.06	1
17528	DKB500680	BLADE - WIPER	DKB500680 BLADE - WIPER Rear Window / From: 7A111120	$23.73	1
17603	DNJ500260	JET - WINDSHIELD WASHER	DNJ500260 JET - WINDSHIELD WASHER For Rear Window Washer, Includes Hose	$12.90	1

Rear Window Wiper And Washer ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]
