Name: Timing Gear (Lower) (AJ Petrol 4.2 V8 Supercharged)
Rating: 4.4 (1 reviews)

Timing Gear (Lower) (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Timing Gear (Lower) (AJ Petrol 4.2 V8 Supercharged)

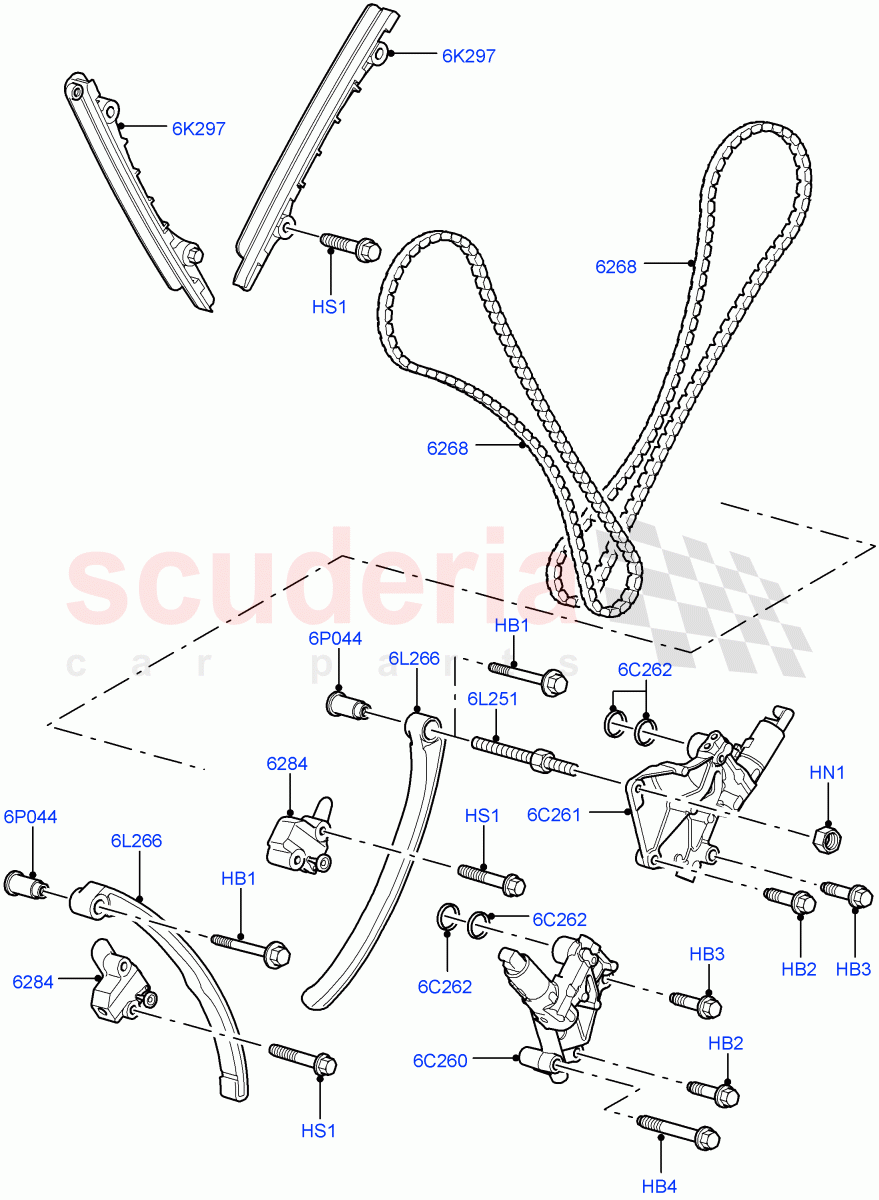

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3600255	BOLT - HEX. HEAD - FLANGED	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108071	Bolt	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108101	BOLT - HEX.HEAD	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4548047	BOLT	$4.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4695697	NUT	$38.83	To Order

Photo	Part No	Description	Price (each)	Stock
	4556038	BOLT	$3.31	To Order

Photo	Part No	Description	Price (each)	Stock
	4174166	CHAIN - TIMING	$167.06	To Order

Photo	Part No	Description	Price (each)	Stock
	4179611	TENSIONER - TIMING BELT	$141.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4566504	HOUSING	$1,122.54	To Order
	LR023328	HOUSING - VALVE	$855.48	To Order

Photo	Part No	Description	Price (each)	Stock
	4566505	HOUSING	$1,127.29	To Order
	LR023329	HOUSING - VALVE	$855.48	To Order

Photo	Part No	Description	Price (each)	Stock
	1237728	SEAL	$7.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4536848	GUIDE	$56.12	To Order

Photo	Part No	Description	Price (each)	Stock
	4472332	BOLT - SPECIAL	$7.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4179614	TENSIONER - TIMING CHAIN	$169.49	To Order

Photo	Part No	Description	Price (each)	Stock
	4437271	BUSHING - TENSIONER BLADE	$9.96	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	3600255	BOLT - HEX. HEAD - FLANGED	3600255 BOLT - HEX. HEAD - FLANGED M6 x 1.0	$1.74	-
HB2	FB108071	Bolt	FB108071 Bolt M8 X 35MM, With Variable Valve Timing / From: 7A000001	$0.53	2
HB3	FB108101	BOLT - HEX.HEAD	FB108101 BOLT - HEX.HEAD M8 X 50, With Variable Valve Timing / From: 7A000001	$2.69	2
HB4	4548047	BOLT	4548047 BOLT M8 x 68MM, With Variable Valve Timing / From: 7A000001	$4.47	1
HN1	4695697	NUT	4695697 NUT M6, With Variable Valve Timing / From: 7A000001	$38.83	1
HS1	4556038	BOLT	4556038 BOLT M6 x 35MM	$3.31	6
6C260	4566504	HOUSING	4566504 HOUSING RH, New Part-Please Check For Reman Version, VCT Valve, With Variable Valve Timing / From: 7A000001	$1,122.54	1
6C260	LR023328	HOUSING - VALVE	LR023328 HOUSING - VALVE RH, Remanufactured Part, VCT Valve, With Variable Valve Timing / From: 7A000001	$855.48	1
6C261	4566505	HOUSING	4566505 HOUSING LH, New Part-Please Check For Reman Version, VCT Valve, With Variable Valve Timing / From: 7A000001	$1,127.29	1
6C261	LR023329	HOUSING - VALVE	LR023329 HOUSING - VALVE LH, Remanufactured Part, VCT Valve, With Variable Valve Timing / From: 7A000001	$855.48	1
6C262	1237728	SEAL	1237728 SEAL With Variable Valve Timing / From: 7A000001	$7.69	4
6K297	4536848	GUIDE	4536848 GUIDE	$56.12	2
6L251	4472332	BOLT - SPECIAL	4472332 BOLT - SPECIAL M6, With Variable Valve Timing / From: 7A000001	$7.38	1
6L266	4179614	TENSIONER - TIMING CHAIN	4179614 TENSIONER - TIMING CHAIN	$169.49	2
6P044	4437271	BUSHING - TENSIONER BLADE	4437271 BUSHING - TENSIONER BLADE	$9.96	2
6268	4174166	CHAIN - TIMING	4174166 CHAIN - TIMING	$167.06	2
6284	4179611	TENSIONER - TIMING BELT	4179611 TENSIONER - TIMING BELT	$141.20	2

Timing Gear (Lower) (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Timing Gear (Lower) (AJ Petrol 4.2 V8 Supercharged)
