View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SN106127L BOLT $0.65 To Order
Photo Part No Description Price (each) Stock
WYC100780L CLIP - HOSE $5.49 To Order
Photo Part No Description Price (each) Stock
SPV500020 CLIP $1.09 To Order
Photo Part No Description Price (each) Stock
WYQ000010 RIVET - PLASTIC $5.86 IN STOCK
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.68 IN STOCK
WYH500050 NUT - LOCKING $2.68 IN STOCK
Photo Part No Description Price (each) Stock
FS108127L SCREW $3.70 To Order
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
WYP500070 SCREW $9.48 To Order
Photo Part No Description Price (each) Stock
WYP000040 SCREW - SELF-TAPPING $2.76 To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW $2.06 IN STOCK
KYP500330 SCREW $0.40 To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.22 IN STOCK
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
WJ110007L WASHER $0.71 IN STOCK
Photo Part No Description Price (each) Stock
LR005624 RESTRICTOR $0.37 To Order
Photo Part No Description Price (each) Stock
WJ600041L WASHER $0.60 IN STOCK
Photo Part No Description Price (each) Stock
WJ110006 WASHER $1.41 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.64 To Order
Photo Part No Description Price (each) Stock
WHK500122 TANK - FUEL $1,323.18 To Order
WHK500190 TANK - FUEL $1,194.11 To Order
Photo Part No Description Price (each) Stock
WLD500091 CAP - FUEL TANK FILLER $18.90 To Order
WLD500180 CAP - FUEL TANK FILLER $18.16 To Order
WLD500280 Cap - Fuel Tank Filler Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WFK500011 INSULATOR $18.86 To Order
Photo Part No Description Price (each) Stock
WFN500021 STRAP - FUEL TANK $211.11 IN STOCK
Photo Part No Description Price (each) Stock
WZB500010 GASKET $7.59 To Order
Photo Part No Description Price (each) Stock
WGC500012 COVER $44.03 To Order
WGC500130 COVER - FUEL SENDER $102.52 To Order
Photo Part No Description Price (each) Stock
WFU500020 BRACKET $3.30 To Order
Photo Part No Description Price (each) Stock
WFP500262 PIPE $158.90 To Order
Photo Part No Description Price (each) Stock
WTB500260 RESERVOIR $347.69 To Order
Photo Part No Description Price (each) Stock
WTB000303 CANISTER - FUEL MIX $139.05 To Order
WTB000292 CANISTER - FUEL MIX $157.71 To Order
Photo Part No Description Price (each) Stock
WMJ500161 PIPE - FUEL FILLER $396.94 To Order
WMJ500151 PIPE - FUEL FILLER $434.65 To Order
WMJ500153 PIPE - FUEL FILLER $481.90 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WLH000061 PIPE - FUEL FILLER $61.18 To Order
Photo Part No Description Price (each) Stock
WJP001275 PIPE - FUEL $71.45 To Order
LR016288 PIPE - FUEL $105.73 To Order
Photo Part No Description Price (each) Stock
WFP500272 PIPE - FUEL $109.30 To Order
LR116239 HOSE - VENT $109.30 To Order
Photo Part No Description Price (each) Stock
WFK000050 INSULATOR $5.73 To Order
Photo Part No Description Price (each) Stock
LR006778 KIT - "O" RING $97.62 To Order
Photo Part No Description Price (each) Stock
SPV500040 CLIP - PARKING BRAKE CABLE $1.50 To Order
Photo Part No Description Price (each) Stock
WFG000031 RING - RETAINING $15.13 To Order
WFG000033 RING - RETAINING $18.91 To Order
Photo Part No Description Price (each) Stock
WTR500020 PUMP - LEAK DETECTION $220.99 To Order
LR174757 VALVE - CONTROL $192.20 To Order
Photo Part No Description Price (each) Stock
WFM500011 COLLAR $104.37 To Order
Photo Part No Description Price (each) Stock
WFZ500032 SHIELD $33.92 To Order
Photo Part No Description Price (each) Stock
WFZ500100 SHIELD $99.53 To Order
View All

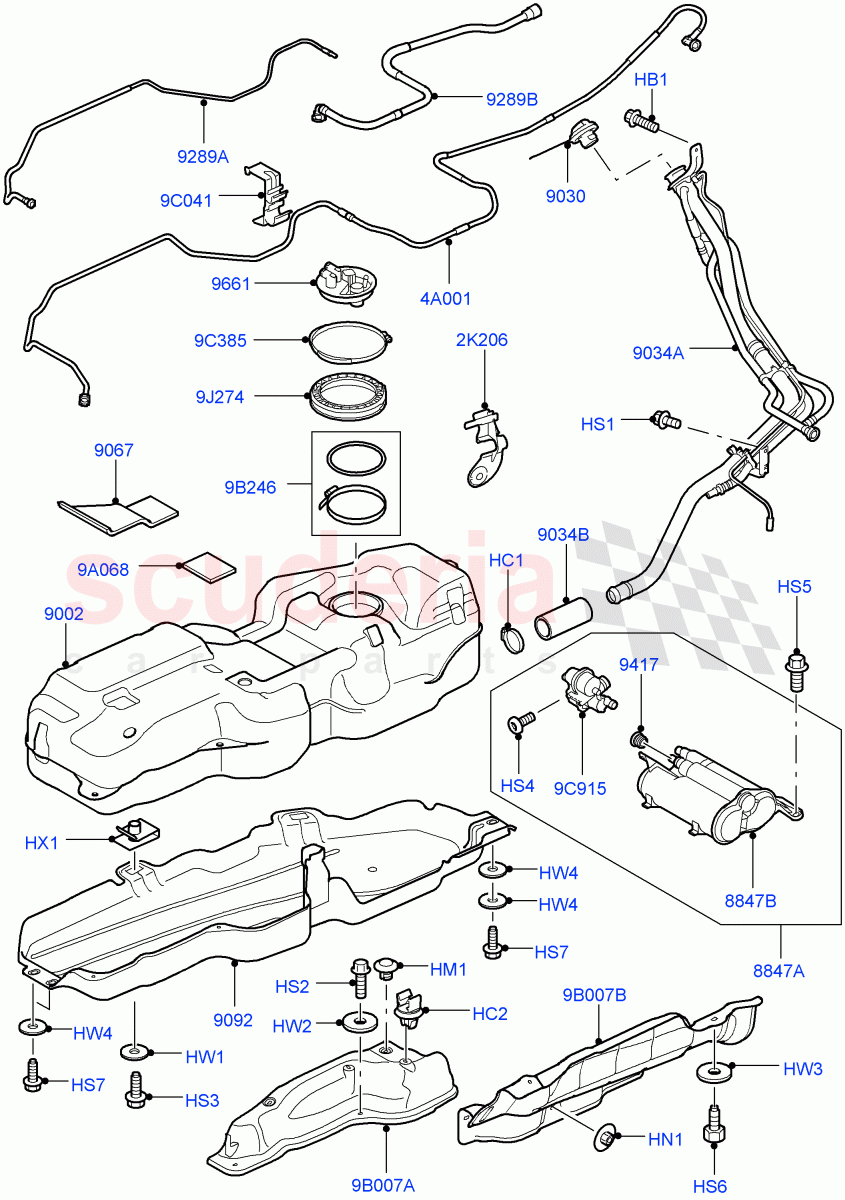

Fuel Tank & Related Parts (With 3 Vent Pipes, Vehicles With Original Fuel Tank) (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SN106127L
BOLT
M6 		$0.65 1
HC1 WYC100780L
CLIP - HOSE
Pipe Clamp 		$5.49 1
HC2 SPV500020
CLIP
For 		$1.09 2
HM1 WYQ000010
RIVET - PLASTIC
Plastic, Rivet Type
IN STOCK 		$5.86 2
HN1 WYH500050
NUT - LOCKING
M5 / To: 6A999999
IN STOCK 		$2.68 3
HN1 WYH500050
NUT - LOCKING
M5 / From: 7A000001
IN STOCK 		$2.68 3
HS1 FS108127L
SCREW
M8 x 12MM / To: 7A999999 		$3.70 1
HS1 FS108126
SCREW
M8 x 12MM / From: 8A000001
IN STOCK 		$1.36 1
HS2 FS106206
SCREW
M6 X 20MM
IN STOCK 		$0.96 2
HS3 WYP500070
SCREW
M10 X 25MM 		$9.48 3
HS4 WYP000040
SCREW - SELF-TAPPING
(+)"CDN/MEX/USA" / 5 X 12MM, Self Tapping 		$2.76 3
HS5 FS108207L
SCREW
M8 X 20MM / To: 8A146993
IN STOCK 		$2.06 2
HS5 KYP500330
SCREW
M8 X 25MM / From: 8A146994 		$0.40 2
HS6 FS106167L
SCREW
M6 X 16MM
IN STOCK 		$2.22 3
HS7 RYG500270
SCREW
Hexagonal Head, M10 X 25MM 		$2.82 3
HW1 WJ110007L
WASHER
Fuel Tank Guard / 10MM
IN STOCK 		$0.71 3
HW2 LR005624
RESTRICTOR
10 MM / From: 7A000001 		$0.37 2
HW3 WJ600041L
WASHER
M6
IN STOCK 		$0.60 3
HW4 WJ110006
WASHER
10 MM 		$1.41 4
HX1 KYH500100
NUT - SPRING
Fuel Tank Attaching, M10, Nut "U" Spring 		$1.64 2
2K206 WFU500020
BRACKET 		$3.30 1
4A001 WFP500262
PIPE 		$158.90 1
9A068 WFK000050
INSULATOR 		$5.73 1
9B007A WFZ500032
SHIELD 		$33.92 1
9B007B WFZ500100
SHIELD 		$99.53 1
9B246 LR006778
KIT - "O" RING 		$97.62 1
9C041 SPV500040
CLIP - PARKING BRAKE CABLE 		$1.50 2
9C385 WFG000031
RING - RETAINING
To: 6A999999 		$15.13 1
9C385 WFG000033
RING - RETAINING
From: 7A000001 		$18.91 1
9C915 WTR500020
PUMP - LEAK DETECTION
(+)"CDN/MEX/USA" / To: 5A999999 		$220.99 1
9C915 LR174757
VALVE - CONTROL
(+)"CDN/MEX/USA" / From: 6A000001 		$192.20 1
9J274 WFM500011
COLLAR 		$104.37 1
8847A WTB500260
RESERVOIR
On Board Fuel Diagnostics-N.A.S. 		$347.69 1
8847B WTB000303
CANISTER - FUEL MIX
AJ Petrol 4.2 V8 Supercharged, Less On-board Diagnostic System 		$139.05 1
8847B WTB000292
CANISTER - FUEL MIX
On Board Fuel Diagnostics-N.A.S. 		$157.71 1
9002 WHK500122
TANK - FUEL
With Fuel Sender / To: 6A999999 		$1,323.18 1
9002 WHK500190
TANK - FUEL
From: 7A000001 		$1,194.11 1
9030 WLD500091
CAP - FUEL TANK FILLER
To: 6A916350 		$18.90 1
9030 WLD500180
CAP - FUEL TANK FILLER
From: 6A916351 / To: 7A108956 		$18.16 1
9030 WLD500280
Cap - Fuel Tank Filler
From: 7A108957 / To: 7A999999 		- 1 Enquire
9030 WLD500370
CAP - FUEL TANK FILLER
From: 8A000001 		$21.01 1
9034A WMJ500161
PIPE - FUEL FILLER
(-)"CDN/MEX/USA" / To: 6A947486 		$396.94 1
9034A WMJ500151
PIPE - FUEL FILLER
(+)"CDN/MEX/USA" / To: 6A947486 		$434.65 1
9034A WMJ500153
PIPE - FUEL FILLER
(+)"CDN/MEX/USA" / From: 6A947487 		$481.90 1
9034A WMJ500163
PIPE - FUEL FILLER
(-)"CDN/MEX/USA" / From: 6A947487 / To: 9A192846 		$436.75 1
9034A LR010516
TANK - FUEL
(-)"CDN/MEX/USA" / From: 9A192847 		$443.31 1
9034B WLH000061
PIPE - FUEL FILLER 		$61.18 1
9067 WFK500011
INSULATOR 		$18.86 1
9092 WFN500021
STRAP - FUEL TANK
IN STOCK 		$211.11 1
9289A WJP001275
PIPE - FUEL
To: 9A212438 		$71.45 1
9289A LR016288
PIPE - FUEL
From: 9A212439 		$105.73 1
9289B WFP500272
PIPE - FUEL
Breather / To: 5A999999 		$109.30 1
9289B LR116239
HOSE - VENT
Breather / From: 6A000001 		$109.30 1
9417 WZB500010
GASKET
(+)"CDN/MEX/USA" 		$7.59 1
9661 WGC500012
COVER
To: 6A999999 		$44.03 1
9661 WGC500130
COVER - FUEL SENDER
From: 7A000001 		$102.52 1
