Name: Thermostat/Housing & Related Parts (AJ Petrol 4.2 V8 Supercharged)
Rating: 4.5 (1 reviews)

View All

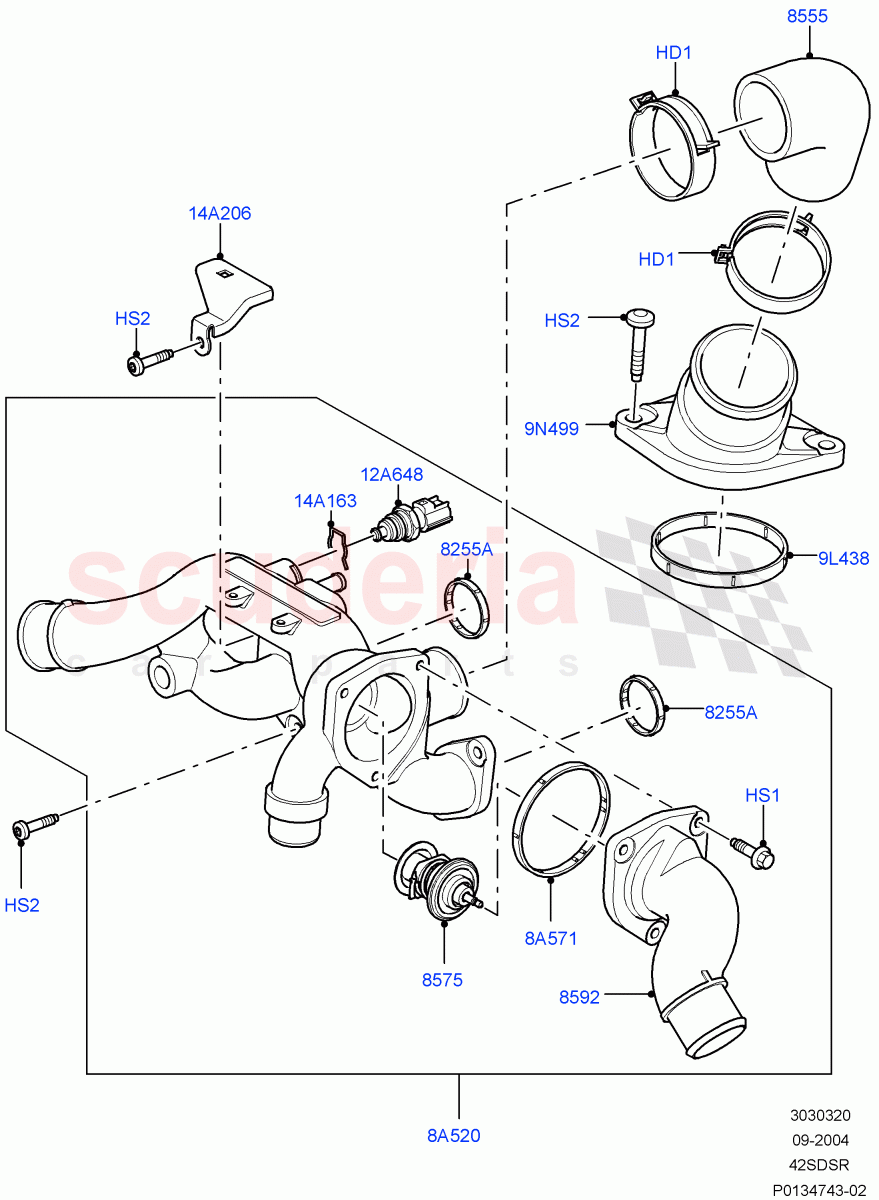

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4653270	CLAMP	$3.60	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	UYP500030	SCREW	$2.76	To Order

Photo	Part No	Description	Price (each)	Stock
	4413478	GASKET	$3.60	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4362513	Gasket	$4.83	To Order

Photo	Part No	Description	Price (each)	Stock
	4024557	GASKET	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4629192	TUBE	$225.22	To Order

Photo	Part No	Description	Price (each)	Stock
	4603183	SENDER	$60.65	To Order

Photo	Part No	Description	Price (each)	Stock
	4653269	CLIP - WIRING	$4.83	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HD1	4653270	CLAMP	4653270 CLAMP Hose	$3.60	2
HS1	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM	$0.71	3
HS2	UYP500030	SCREW	UYP500030 SCREW M6 x 25MM, Torx	$2.76	6
8A520	4653275	TUBE	4653275 TUBE Thermostat Housing / To: 5A916350	$343.19	1
8A520	4728696	TUBE	4728696 TUBE Thermostat Housing / From: 5A916351 / To: 6A499999	$305.83	1
8A520	LR005766	TUBE	LR005766 TUBE Thermostat Housing / From: 7A000001 / To: 7A999999	$293.31	1
8A520	LR003523	TUBE	LR003523 TUBE Thermostat Housing / From: 6A500001 / To: 6A999999	$319.77	1
8A520	LR007603	TUBE	LR007603 TUBE Thermostat Housing / From: 8A000001	$921.64	1
8A571	4362513	Gasket	4362513 Gasket 69MM	$4.83	1
9L438	4024557	GASKET	4024557 GASKET	$2.28	1
9N499	4629192	TUBE	4629192 TUBE	$225.22	1
12A648	4603183	SENDER	4603183 SENDER	$60.65	1
14A206	4653269	CLIP - WIRING	4653269 CLIP - WIRING knock sensor	$4.83	1
8255A	4413478	GASKET	4413478 GASKET	$3.60	2
8555	4629191	TUBE	4629191 TUBE To: 6A999999	$9.58	1
8555	LR004056	TUBE	LR004056 TUBE From: 7A000001	$12.29	1
8575	PCP500050	THERMOSTAT	PCP500050 THERMOSTAT To: 6A999999	$67.84	1
8575	LR005765	THERMOSTAT	LR005765 THERMOSTAT From: 7A000001	$57.45	1
8592	4653276	CONNECTION - WATER OUTLET	4653276 CONNECTION - WATER OUTLET To: 7A999999	$84.88	1
8592	LR007605	CONNECTION - WATER OUTLET	LR007605 CONNECTION - WATER OUTLET From: 8A000001	$201.92	1

Thermostat/Housing & Related Parts (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]
