Name: Service Engine And Short Block (AJ Petrol 4.2 V8 Supercharged)
Rating: 5.0 (1 reviews)

View All

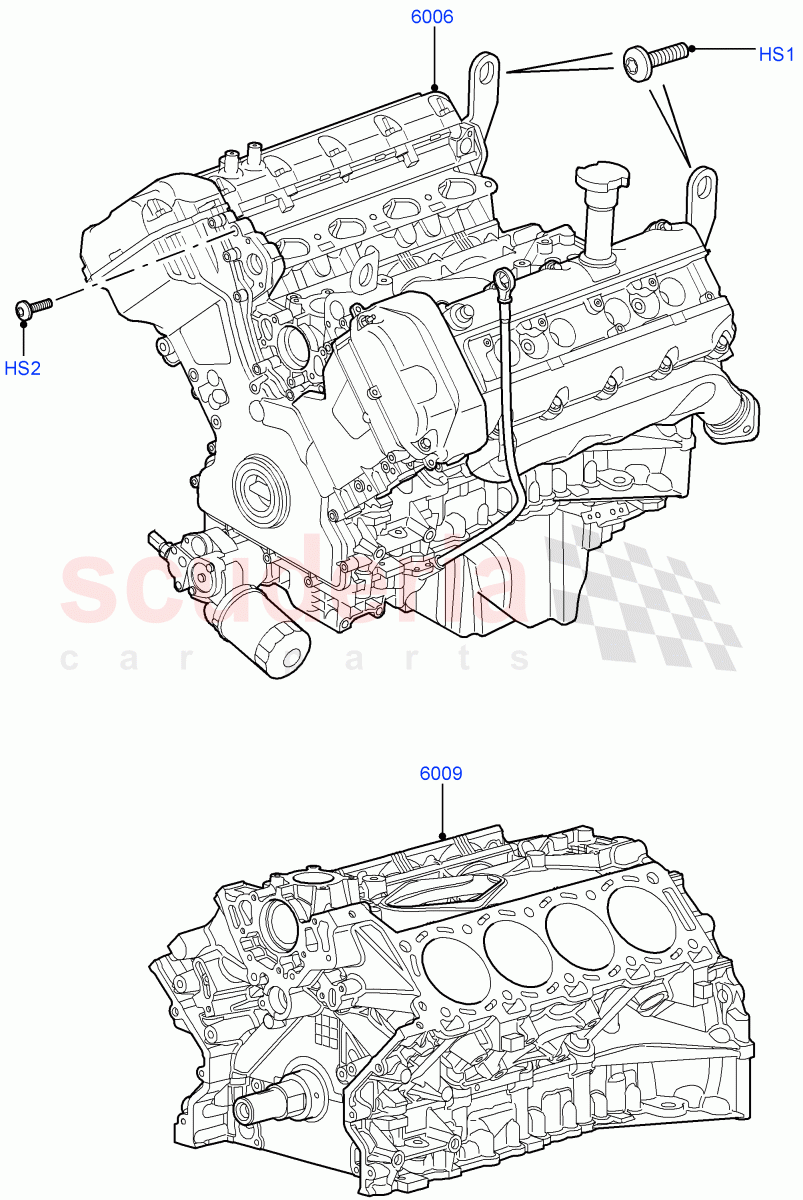

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4536743	SCREW	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	4744204	BOLT	$1.12	To Order

...and 3 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	4536743	SCREW	4536743 SCREW Lashing Eye, M14 X 20	$0.87	2
HS2	4744204	BOLT	4744204 BOLT Engine Lifting Eye, M12 x 31MM	$1.12	1
6006	4628396	Engine - Stripped	4628396 Engine - Stripped New Part-Please Check For Reman Version / To: 6A999999	$21,455.14	1
6006	LR004703	ENGINE - STRIPPED	LR004703 ENGINE - STRIPPED Euro Stage 4 Emissions / New Part-Please Check For Reman Version / From: 7A000001	$25,721.74	1
6006	LR005684	ENGINE - STRIPPED	LR005684 ENGINE - STRIPPED (-)"CHN" / - Russia, Less Exhaust Manifold, Remanufactured Part / To: 6A999999	$11,709.53	1
6006	LR004704	Engine - Stripped	LR004704 Engine - Stripped Lev II Requirements / New Part-Please Check For Reman Version / From: 7A000001	$22,172.92	1
6006	LR010165	ENGINE - STRIPPED	LR010165 ENGINE - STRIPPED (-)"CHN", EU2 / - Russia, Less Exhaust Manifold, Remanufactured Part / From: 7A000001	$12,198.41	1
6006	LR010166	ENGINE - STRIPPED	LR010166 ENGINE - STRIPPED (-)"CHN", Lev II Requirements / - Russia, Less Exhaust Manifold, Remanufactured Part / From: 7A000001	$21,662.28	1
6009	4628397	ENGINE - SHORT BLOCK	4628397 ENGINE - SHORT BLOCK To: 6A999999	$4,451.95	1
6009	LR004706	ENGINE - SHORT BLOCK	LR004706 ENGINE - SHORT BLOCK Euro Stage 4 Emissions / From: 7A000001	$5,344.75	1
6009	LR005337	ENGINE - SHORT BLOCK	LR005337 ENGINE - SHORT BLOCK Lev II Requirements / From: 7A000001	$5,344.75	1

Service Engine And Short Block (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]
