Name: Crankshaft/Pistons And Bearings (AJ Petrol 4.2 V8 Supercharged)
Rating: 4.2 (1 reviews)

Crankshaft/Pistons And Bearings (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Crankshaft/Pistons And Bearings (AJ Petrol 4.2 V8 Supercharged)

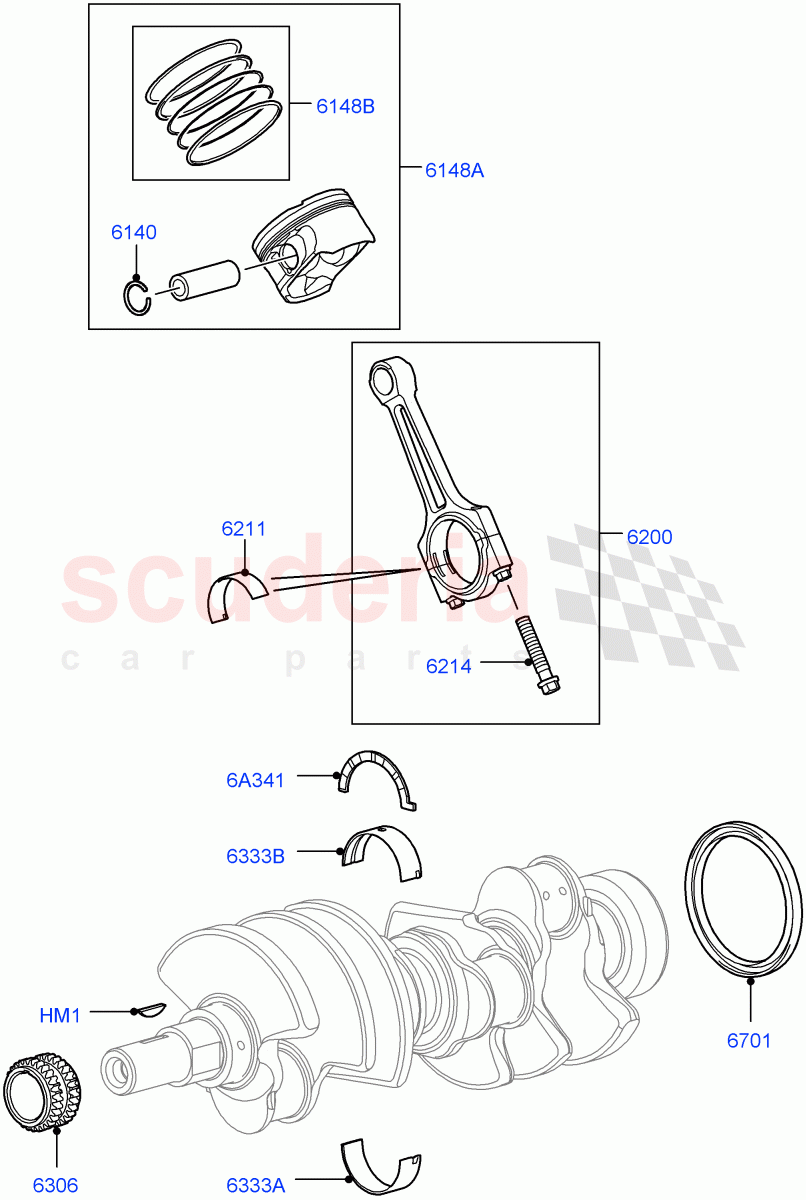

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1663923	KEY - WOODRUFF	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	4628401	RETAINER - PISTON PIN	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	4663831	Rod - Connecting	Enquire	To Order
	4728695	ROD - CONNECTING	$287.19	To Order
	LR008220	ROD - CONNECTING	$338.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4526475	BEARING - CONNECTING ROD	$22.37	To Order
	4526476	BEARING - CONNECTING ROD	$22.37	To Order
	4526477	BEARING - CONNECTING ROD	$22.37	To Order

Photo	Part No	Description	Price (each)	Stock
	4527567	BOLT - CONNECTING ROD	$10.58	To Order

Photo	Part No	Description	Price (each)	Stock
	4174189	Gear - Crankshaft	$125.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4352327	Seal	$54.19	To Order

Photo	Part No	Description	Price (each)	Stock
	4722545	PISTON- PIN AND RING	$133.91	To Order
	4722546	Kit - Piston Ring	Enquire	To Order
	4722548	Kit - Piston Ring	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1357861	KIT - PISTON RING	$100.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4464732	BEARING - CRANKSHAFT MAIN	$14.46	To Order
	4464739	BEARING - CRANKSHAFT MAIN	$25.30	To Order
	4464741	BEARING - CRANKSHAFT MAIN	$14.46	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4464745	BEARING - CRANKSHAFT MAIN	$14.83	To Order
	4464748	BEARING - CRANKSHAFT MAIN	$10.57	To Order
	4464750	BEARING - CRANKSHAFT MAIN	$10.57	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1069689	WASHER - CRANKSHAFT MAIN BRG THRUST	$13.09	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HM1	1663923	KEY - WOODRUFF	1663923 KEY - WOODRUFF Key - Woodruff 26.65 X 5.9 X 4.7MM	$2.49	1
6A341	1069689	WASHER - CRANKSHAFT MAIN BRG THRUST	1069689 WASHER - CRANKSHAFT MAIN BRG THRUST	$13.09	1
6140	4628401	RETAINER - PISTON PIN	4628401 RETAINER - PISTON PIN	$2.71	16
6148A	4722545	PISTON- PIN AND RING	4722545 PISTON- PIN AND RING Grade 1 / To: 6A999999	$133.91	-
6148A	4722546	Kit - Piston Ring	4722546 Kit - Piston Ring Grade 2 / To: 6A999999	-	-	Enquire
6148A	4722548	Kit - Piston Ring	4722548 Kit - Piston Ring Grade 3 / To: 6A999999	-	-	Enquire
6148A	LR002439	PISTON - PIN AND RING	LR002439 PISTON - PIN AND RING Grade 1 / From: 7A000001	$409.61	-
6148A	LR004719	PISTON - PIN AND RING	LR004719 PISTON - PIN AND RING Grade 2 / From: 7A000001	$219.67	-
6148A	LR004720	PISTON- PIN AND RING	LR004720 PISTON- PIN AND RING Grade 3 / From: 7A000001	$192.35	-
6148B	1357861	KIT - PISTON RING	1357861 KIT - PISTON RING	$100.43	8
6200	4663831	Rod - Connecting	4663831 Rod - Connecting To: 5A910671	-	8	Enquire
6200	4728695	ROD - CONNECTING	4728695 ROD - CONNECTING From: 5A910672 / To: 8A166421	$287.19	8
6200	LR008220	ROD - CONNECTING	LR008220 ROD - CONNECTING From: 8A166422	$338.32	8
6211	4526475	BEARING - CONNECTING ROD	4526475 BEARING - CONNECTING ROD Blue	$22.37	-
6211	4526476	BEARING - CONNECTING ROD	4526476 BEARING - CONNECTING ROD Green	$22.37	-
6211	4526477	BEARING - CONNECTING ROD	4526477 BEARING - CONNECTING ROD Yellow	$22.37	-
6214	4527567	BOLT - CONNECTING ROD	4527567 BOLT - CONNECTING ROD	$10.58	16
6306	4174189	Gear - Crankshaft	4174189 Gear - Crankshaft	$125.38	1
6333A	4464732	BEARING - CRANKSHAFT MAIN	4464732 BEARING - CRANKSHAFT MAIN Blue / Green, Lower, Refer To Workshop Manual For Proper Grade Selection	$14.46	-
6333A	4464739	BEARING - CRANKSHAFT MAIN	4464739 BEARING - CRANKSHAFT MAIN Blue, Lower, Refer To Workshop Manual For Proper Grade Selection	$25.30	-
6333A	4464741	BEARING - CRANKSHAFT MAIN	4464741 BEARING - CRANKSHAFT MAIN Green, Lower, Refer To Workshop Manual For Proper Grade Selection	$14.46	-
6333A	4464742	BEARING - CRANKSHAFT MAIN	4464742 BEARING - CRANKSHAFT MAIN Lower, Refer To Workshop Manual For Proper Grade Selection, Yellow	$10.57	-
6333B	4464745	BEARING - CRANKSHAFT MAIN	4464745 BEARING - CRANKSHAFT MAIN Blue/Green, Refer To Workshop Manual For Proper Grade Selection, Upper	$14.83	-
6333B	4464748	BEARING - CRANKSHAFT MAIN	4464748 BEARING - CRANKSHAFT MAIN Blue, Refer To Workshop Manual For Proper Grade Selection, Upper	$10.57	-
6333B	4464750	BEARING - CRANKSHAFT MAIN	4464750 BEARING - CRANKSHAFT MAIN Green, Refer To Workshop Manual For Proper Grade Selection, Upper	$10.57	-
6333B	4464752	BEARING - CRANKSHAFT MAIN	4464752 BEARING - CRANKSHAFT MAIN Refer To Workshop Manual For Proper Grade Selection, Upper, Yellow	$10.57	-
6701	4352327	Seal	4352327 Seal Rear	$54.19	1

Crankshaft/Pistons And Bearings (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Crankshaft/Pistons And Bearings (AJ Petrol 4.2 V8 Supercharged)
