Name: Pulleys And Drive Belts (AJ Petrol 4.2 V8 Supercharged)
Rating: 5.0 (1 reviews)

Pulleys And Drive Belts (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Pulleys And Drive Belts (AJ Petrol 4.2 V8 Supercharged)

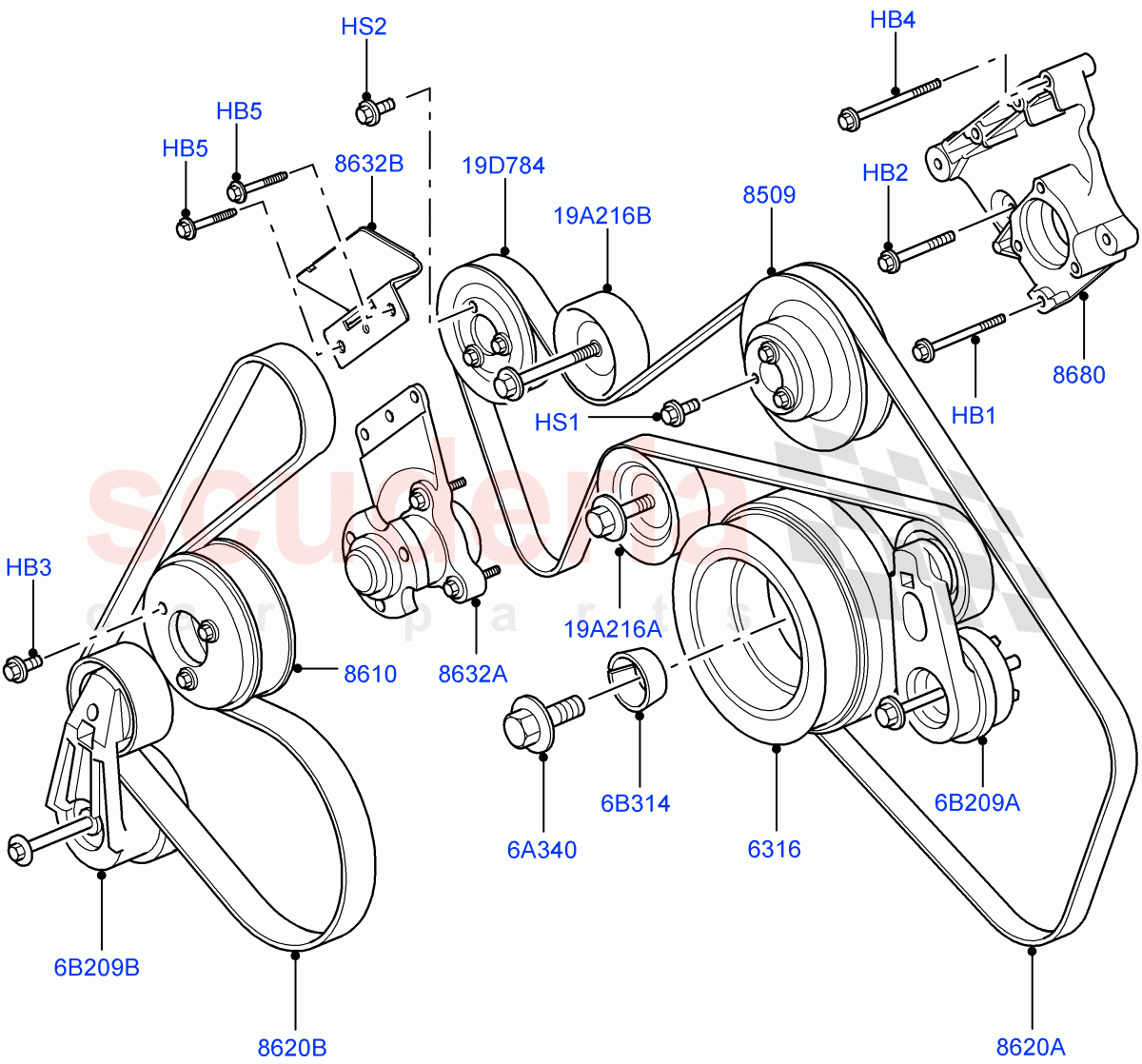

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4548047	BOLT	$4.48	To Order

Photo	Part No	Description	Price (each)	Stock
	1052945	BOLT - HEX. HEAD - FLANGED	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108167	SCREW	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4664619	BOLT	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	PQM500030	BOLT	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4000894	SCREW AND WASHER	$7.34	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU4180	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	4677858	PULLEY - CRANKSHAFT	$319.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4359078	PULLEY - WATER PUMP	$105.78	To Order

Photo	Part No	Description	Price (each)	Stock
	PQS500280	PULLEY - FAN	$91.87	To Order
	PQS500530	PULLEY - FAN	$101.83	To Order

Photo	Part No	Description	Price (each)	Stock
	4664618	BRACKET - IDLER PULLEY	$73.85	To Order
	4728616	BRACKET	$70.21	To Order
	LR006467	BRACKET	$68.57	To Order

Photo	Part No	Description	Price (each)	Stock
	4677860	BOLT	$13.03	To Order

Photo	Part No	Description	Price (each)	Stock
	4677859	SLEEVE	$70.65	To Order

Photo	Part No	Description	Price (each)	Stock
	PQS500251	V-BELT	$33.68	To Order
	PQR500340	V-BELT	$39.40	To Order

Photo	Part No	Description	Price (each)	Stock
	PQS500241	V-BELT	$77.74	To Order

Photo	Part No	Description	Price (each)	Stock
	PQS500490	BRACKET	$140.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LJU500010	BRACKET	$8.48	To Order

Photo	Part No	Description	Price (each)	Stock
	PQO500021	PULLEY - ALTERNATOR	$9.42	To Order

Photo	Part No	Description	Price (each)	Stock
	PQG500030	TENSIONER	$141.32	To Order

Photo	Part No	Description	Price (each)	Stock
	PQG500111	TENSIONER	$101.91	To Order
	PQG500190	TENSIONER	$117.01	To Order
	PQG500220	TENSIONER	$150.17	To Order

Photo	Part No	Description	Price (each)	Stock
	PQR500130	KIT - TENSION PULLEY	$50.47	To Order
	PQR500350	PULLEY - TENSION	$63.68	To Order

Photo	Part No	Description	Price (each)	Stock
	PQR500140	KIT - TENSION PULLEY	$74.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4548047	BOLT	4548047 BOLT M8 x 68MM	$4.48	3
HB2	1052945	BOLT - HEX. HEAD - FLANGED	1052945 BOLT - HEX. HEAD - FLANGED M8 x 60MM	$0.63	1
HB3	FS108167	SCREW	FS108167 SCREW M8 X 16MM	$0.77	3
HB4	4664619	BOLT	4664619 BOLT M6 x 75MM	$5.90	1
HB5	PQM500030	BOLT	PQM500030 BOLT M6 x 37MM	$6.08	2
HS1	4000894	SCREW AND WASHER	4000894 SCREW AND WASHER M6 x 18MM / To: 6A999999	$7.34	3
HS2	AFU4180	SCREW	AFU4180 SCREW Torx	$0.67	3
6A340	4677860	BOLT	4677860 BOLT	$13.03	1
6B209A	PQG500030	TENSIONER	PQG500030 TENSIONER Primary	$141.32	1
6B209B	PQG500111	TENSIONER	PQG500111 TENSIONER Secondary / To: 6A964493	$101.91	1
6B209B	PQG500190	TENSIONER	PQG500190 TENSIONER Secondary / From: 6A964494 / To: 7A113765	$117.01	1
6B209B	PQG500220	TENSIONER	PQG500220 TENSIONER Secondary / From: 7A113766	$150.17	1
6B314	4677859	SLEEVE	4677859 SLEEVE	$70.65	1
19A216A	PQR500130	KIT - TENSION PULLEY	PQR500130 KIT - TENSION PULLEY Lower / To: 5A999999	$50.47	1
19A216A	PQR500350	PULLEY - TENSION	PQR500350 PULLEY - TENSION Lower / From: 6A000001	$63.68	1
19A216B	PQR500140	KIT - TENSION PULLEY	PQR500140 KIT - TENSION PULLEY Upper	$74.54	1
19D784	PQO500021	PULLEY - ALTERNATOR	PQO500021 PULLEY - ALTERNATOR	$9.42	1
6316	4677858	PULLEY - CRANKSHAFT	4677858 PULLEY - CRANKSHAFT	$319.47	1
8509	4359078	PULLEY - WATER PUMP	4359078 PULLEY - WATER PUMP	$105.78	1
8610	PQS500280	PULLEY - FAN	PQS500280 PULLEY - FAN To: 7A109917	$91.87	1
8610	PQS500530	PULLEY - FAN	PQS500530 PULLEY - FAN From: 7A109918	$101.83	1
8620A	PQS500251	V-BELT	PQS500251 V-BELT Primary / To: 8A126122	$33.68	1
8620A	PQR500340	V-BELT	PQR500340 V-BELT Primary / From: 8A126123	$39.40	1
8620B	PQS500241	V-BELT	PQS500241 V-BELT Secondary	$77.74	1
8632A	PQS500490	BRACKET	PQS500490 BRACKET	$140.86	1
8632B	LJU500010	BRACKET	LJU500010 BRACKET	$8.48	1
8680	4664618	BRACKET - IDLER PULLEY	4664618 BRACKET - IDLER PULLEY To: 6A916350	$73.85	1
8680	4728616	BRACKET	4728616 BRACKET From: 6A916351 / To: 6A999999	$70.21	1
8680	LR006467	BRACKET	LR006467 BRACKET From: 7A000001	$68.57	1
