Transmission External Components (6 Speed Auto Zf 6Hp26 Steptronic) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Transmission External Components (6 Speed Auto ZF 6HP26 Steptronic) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110087 BOLT $2.97 To Order
FB110086 BOLT - HEX.HEAD $0.59 To Order
Photo Part No Description Price (each) Stock
TYP500070 SCREW $2.42 To Order
Photo Part No Description Price (each) Stock
TYP500050 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
FS106147P SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
SDG500020 SCREW $8.72 IN STOCK
SDG500020 SCREW $8.72 IN STOCK
Photo Part No Description Price (each) Stock
TYF500030 WASHER $1.82 IN STOCK
Photo Part No Description Price (each) Stock
TZB500020 SEAL $5.51 To Order
Photo Part No Description Price (each) Stock
TYT500010 PIN - FASTENING $1.15 To Order
Photo Part No Description Price (each) Stock
TGK500010 GASKET $30.68 To Order
Photo Part No Description Price (each) Stock
TED500010 PAN - TRANSMISSION OIL $195.71 To Order
LR007474 PAN - TRANSMISSION OIL $274.94 To Order
Photo Part No Description Price (each) Stock
TZB500030 SEAL $13.41 To Order
Photo Part No Description Price (each) Stock
TGO000013 SHIELD $108.02 To Order
TGO000014 SHIELD $104.90 To Order
LR013913 SHIELD $112.95 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TZB500010 SEAL $11.17 To Order
Photo Part No Description Price (each) Stock
TGU500011 BRACKET $36.92 To Order
TGU500050 BRACKET - OIL HOSES $52.96 To Order
Photo Part No Description Price (each) Stock
LR008866 GROMMET $8.58 IN STOCK
Photo Part No Description Price (each) Stock
LR020488 CAPACITOR - RADIO SUPPRESSION $45.44 To Order
Photo Part No Description Price (each) Stock
TYB500050 SCREW $5.55 To Order
LR007608 PLUG - OIL DRAIN $7.78 To Order
Photo Part No Description Price (each) Stock
TGZ500020 PLUG - OIL DRAIN $10.92 To Order
LR007610 PLUG - OIL FILLER $12.39 To Order
Photo Part No Description Price (each) Stock
TYB500040 SCREW $6.07 To Order
LR007607 PLUG - OIL DRAIN $9.48 To Order
Photo Part No Description Price (each) Stock
TYB500020 PLUG - OIL DRAIN $8.67 To Order
Photo Part No Description Price (each) Stock
TYX500020 O-RING $17.87 To Order
Photo Part No Description Price (each) Stock
TYX500030 O-RING $11.17 To Order
Photo Part No Description Price (each) Stock
TYX500010 O-RING $1.33 IN STOCK
View All

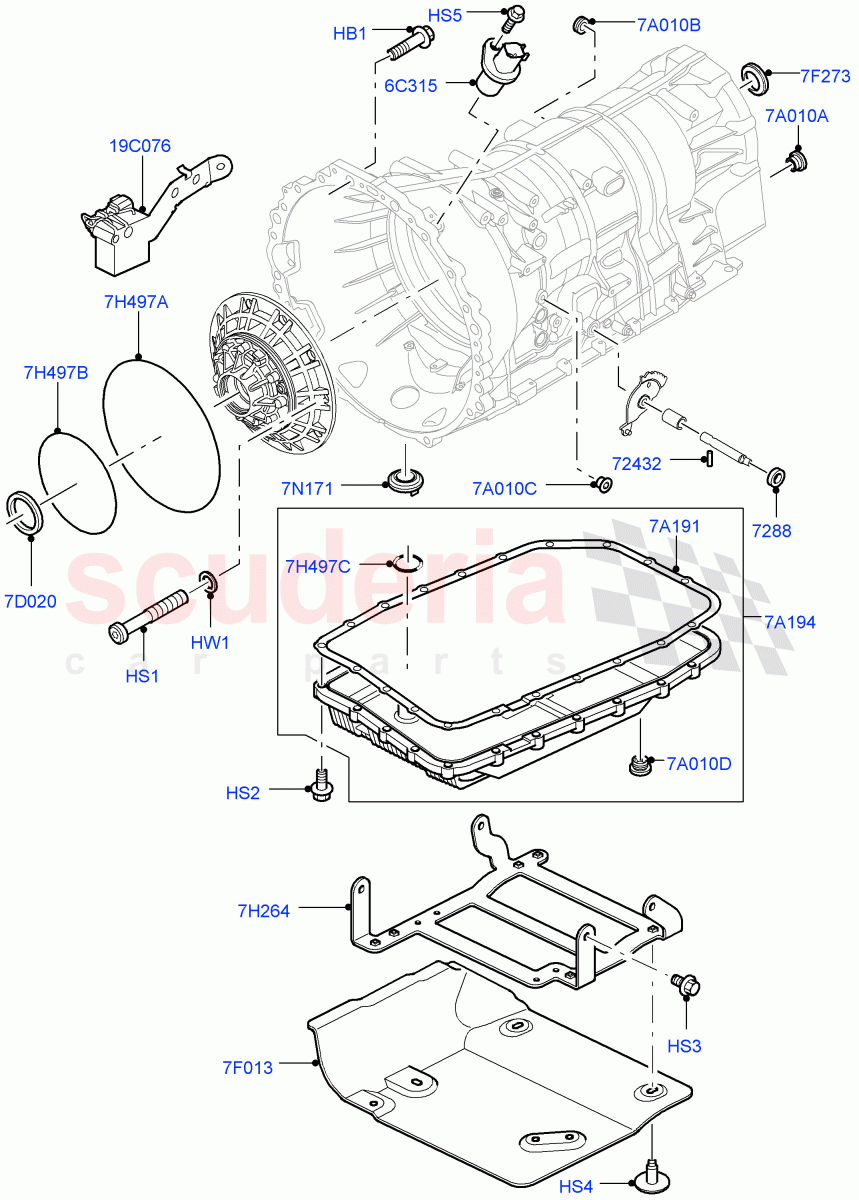

Transmission External Components (6 Speed Auto ZF 6HP26 Steptronic) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110087
BOLT
M10 x 40MM / To: 7A108443 		$2.97 11
HB1 FB110086
BOLT - HEX.HEAD
M10 x 40MM / From: 7A108444 		$0.59 11
HS1 TYP500070
SCREW
Housing, Oil Pump, M6 x 50MM, To Transmission 		$2.42 13
HS2 TYP500050
SCREW
M6 X 31.5MM, Oil Pan, To Transmission, Torx 		$1.24 21
HS3 FS106147P
SCREW
M6 X 14MM
IN STOCK 		$0.77 4
HS4 SDG500020
SCREW
M6 x 12MM / To: 6A999999
IN STOCK 		$8.72 3
HS4 SDG500020
SCREW
M6 x 12MM / From: 7A000001
IN STOCK 		$8.72 4
HW1 TYF500030
WASHER
M6
IN STOCK 		$1.82 13
7A010A TYB500050
SCREW
To: 8A146088 		$5.55 1
7A010A LR007608
PLUG - OIL DRAIN
M12 X 1.5MM, Park, Pawl, Rear / From: 8A146089 		$7.78 1
7A010B TGZ500020
PLUG - OIL DRAIN
Warning Oil Level Check / To: 8A148907 		$10.92 1
7A010B LR007610
PLUG - OIL FILLER
M18 X 1.5MM, Warning Oil Level Check / From: 8A148908 		$12.39 1
7A010C TYB500040
SCREW
To: 8A146088 		$6.07 1
7A010C LR007607
PLUG - OIL DRAIN
M10 x 1.0 / From: 8A146089 		$9.48 1
7A010D TYB500020
PLUG - OIL DRAIN
Drain 		$8.67 1
7A191 TGK500010
GASKET
Oil Pan 		$30.68 1
7A194 TED500010
PAN - TRANSMISSION OIL
Includes Oil Filter / To: 7A129640 		$195.71 1
7A194 LR007474
PAN - TRANSMISSION OIL
Includes Oil Filter / From: 7A129641 		$274.94 1
7D020 TZB500030
SEAL
Oil Pump 		$13.41 1
7F013 TGO000013
SHIELD
AJ Petrol 4.4 V8 EFI (220KW) / To: 5A999999 		$108.02 1
7F013 TGO000014
SHIELD
AJ Petrol 4.2 V8 Supercharged / From: 6A000001 / To: 6A999999 		$104.90 1
7F013 LR013913
SHIELD
3.6L V8 32V DOHC EFi Diesel Lion / From: 7A000001 / To: 9A198418 		$112.95 1
7F013 LR013913
SHIELD
3.6L V8 32V DOHC EFi Diesel Lion / From: 9A198419 		$112.95 1
7F273 TZB500010
SEAL
Output Shaft, Rear 		$11.17 1
7H264 TGU500011
BRACKET
AJ Petrol 4.4 V8 EFI (220KW) / To: 8A144114 		$36.92 1
7H264 TGU500050
BRACKET - OIL HOSES
AJ Petrol 4.4 V8 EFI (220KW) / From: 8A144115 		$52.96 1
7H497A TYX500020
O-RING 		$17.87 1
7H497B TYX500030
O-RING
Housing, Oil Pump 		$11.17 1
7H497C TYX500010
O-RING
Oil Pump
IN STOCK 		$1.33 1
7N171 LR008866
GROMMET
Converter Drain Access
IN STOCK 		$8.58 1
19C076 LR020488
CAPACITOR - RADIO SUPPRESSION 		$45.44 1
7288 TZB500020
SEAL 		$5.51 1
72432 TYT500010
PIN - FASTENING 		$1.15 1
